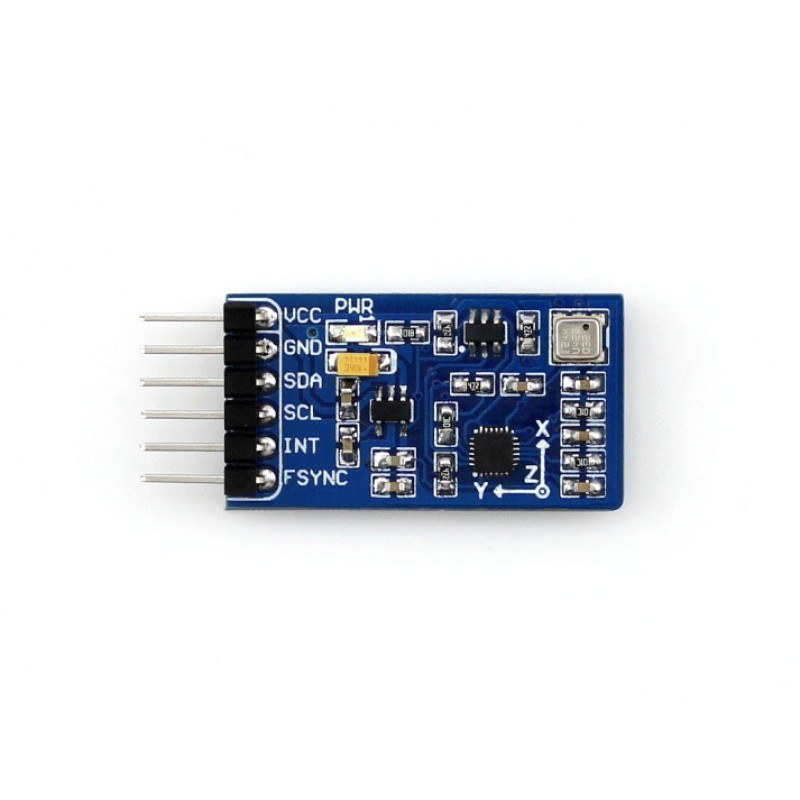

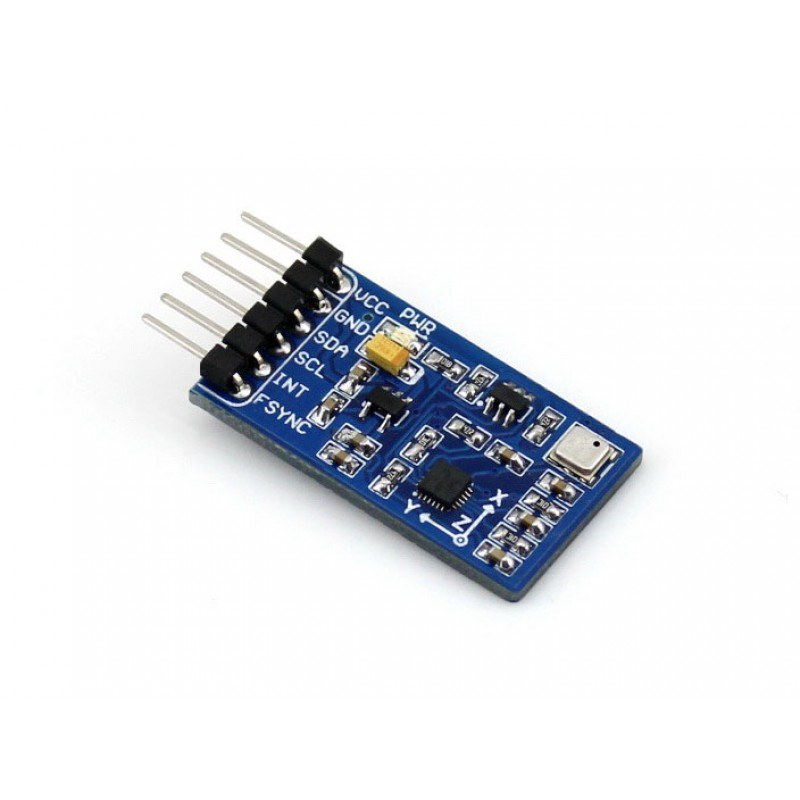

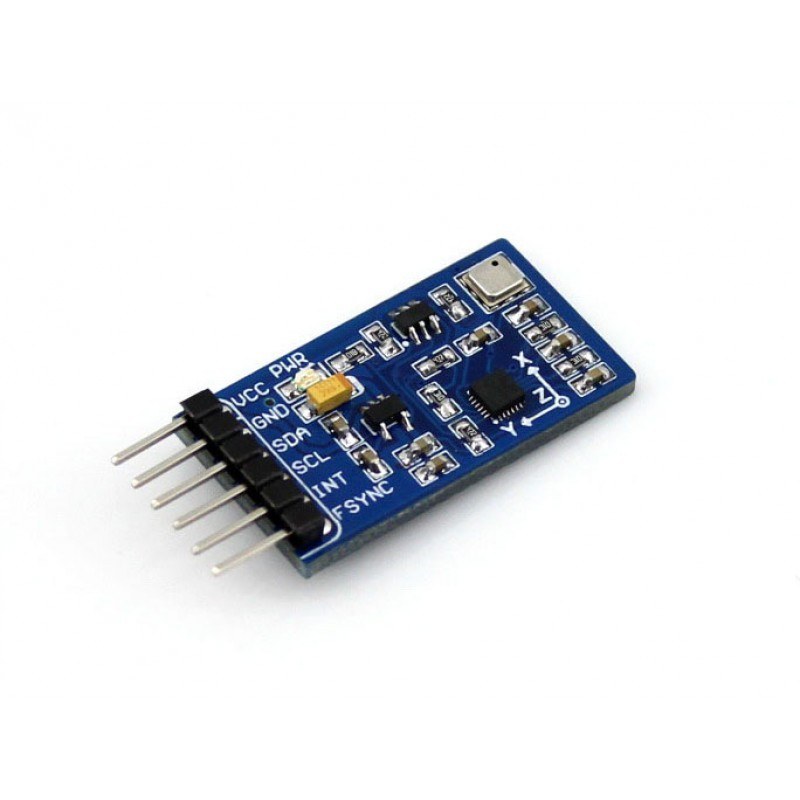

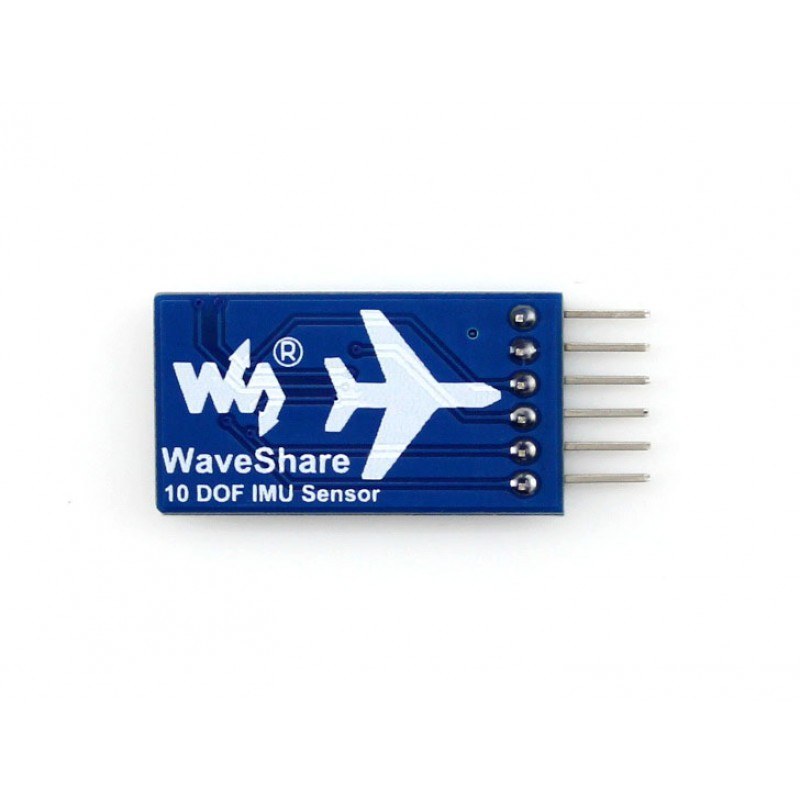

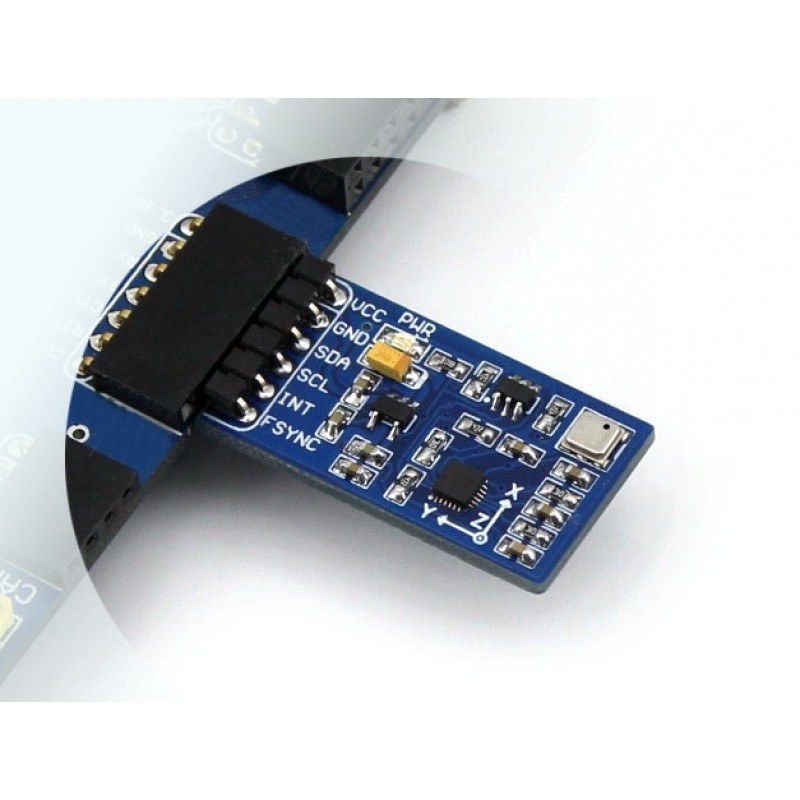

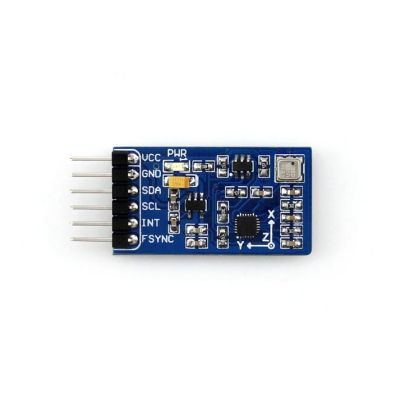

  • This is a 10DOF IMU sensor board contains a 3-axis gyro, accelerometer, magnetometer and BMP10 barometric pressure sensor together. You can do all the conections with I2C interface requiring not much number of pins to your mcu.


    • Power : 3.3V~5.5V (internal voltage regulation with low dropout)
    • Accelerometer

    -Resolution : 16 bit
    -Measurement range (configurable) : ±2, ±4, ±8, ±16g
    -Operating current : 450uA

    • Gyroscope

    -Resolution : 16 bit
    -Measurement range (configurable) : ±250, ±500, ±1000, ±2000°/sec
    -Operating current : 3.2mA

    • Compass/Magnetometer

    -Resolution (configurable) : 14 or 16 bit
    -Measurement range : ±4800µT
    -Operating current : 280uA

    • Barometric pressure sensor

    -Resolution (configurable) : 16~19 bit
    -Measurement range : 300~1100hPa (altitude : +9000m~-500m)
    -Accuracy : 0.02hPa(0.17m)

    You may visit the wiki page of the product for example code, circuit schema and datasheet.
