  • STM32F4 DISCOVERY Board is now avaliable in's stock!

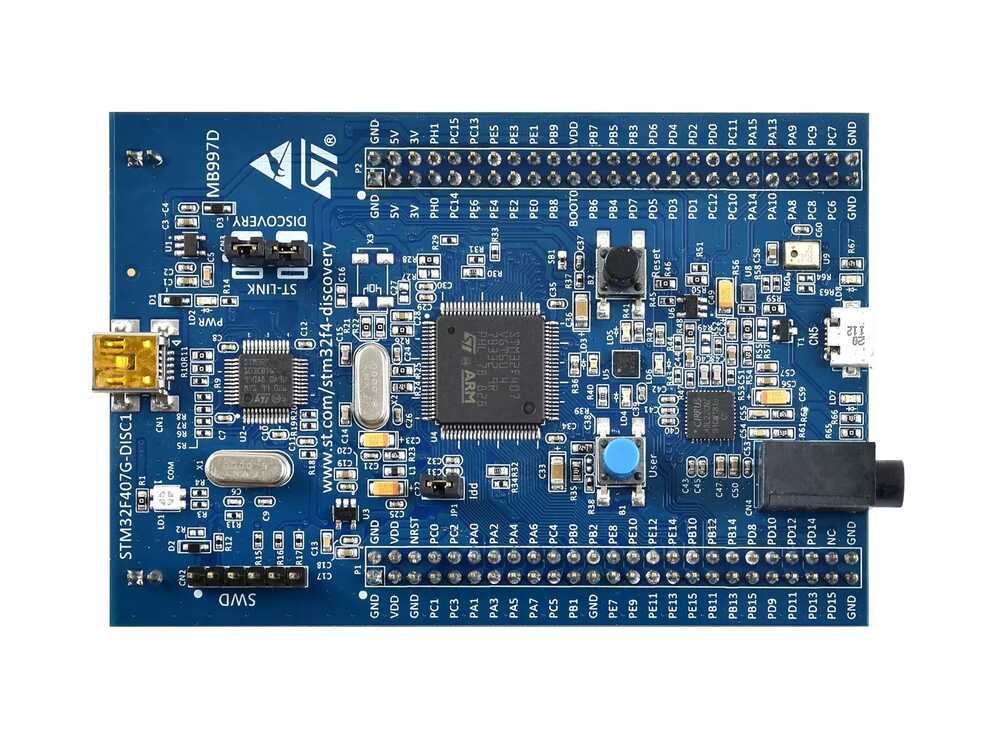

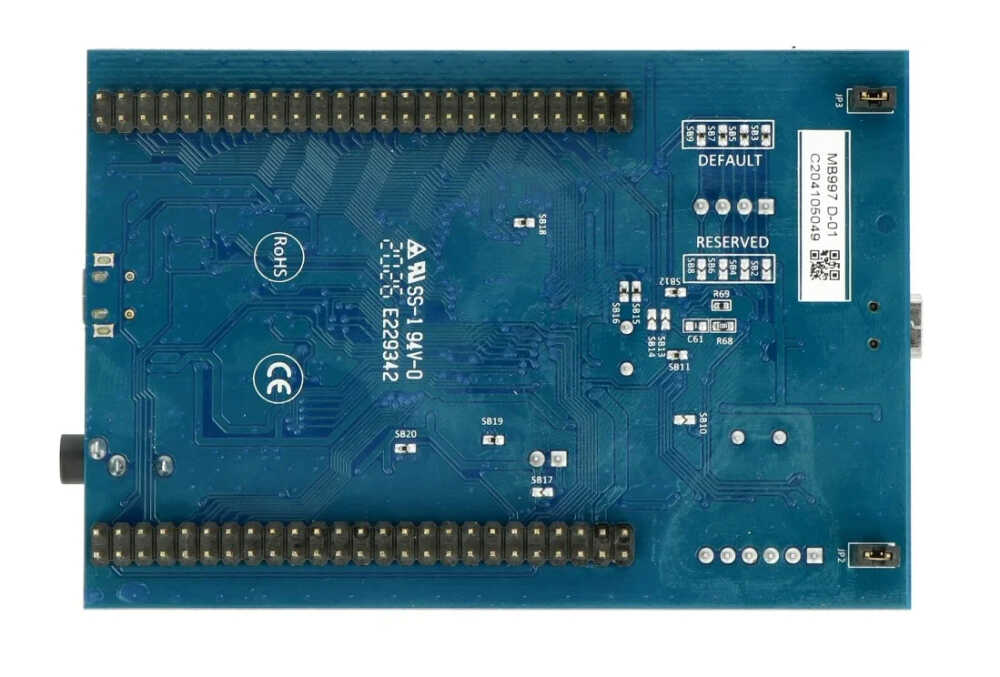

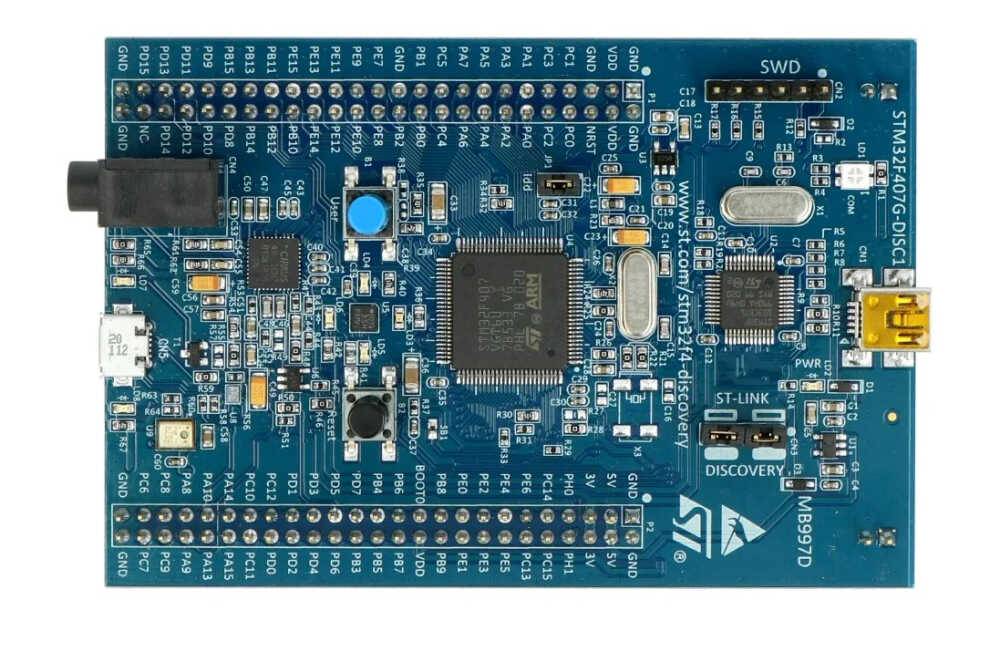

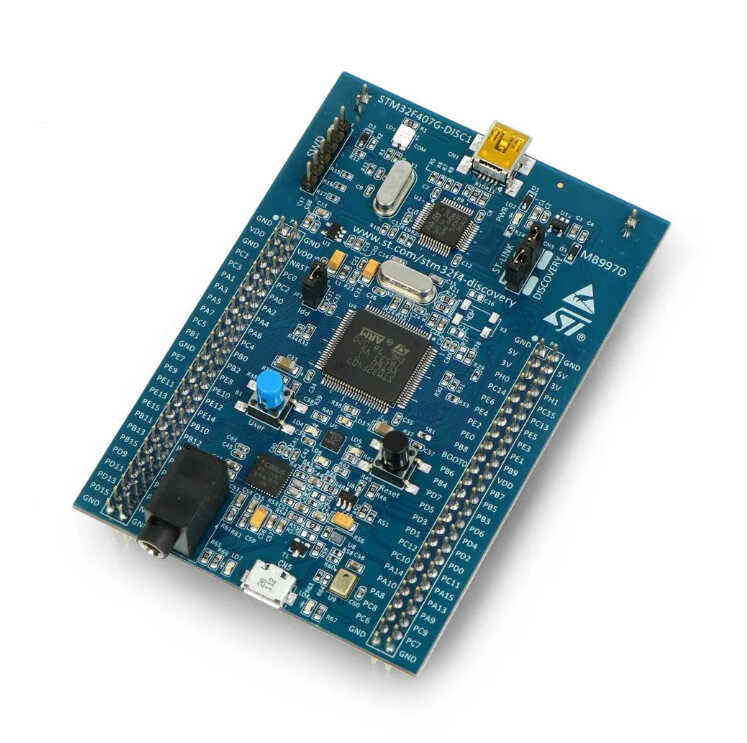

    The STM32F4DISCOVERY Discovery kit allows users to easily develop applications with the STM32F407 high performance microcontrollers with ARM®Cortex®-M4 32-bit core. It includes everything required either for beginners or for experienced users to get quickly started.

    Based on the STM32F407VGT6, it includes an ST-LINK/V2 or ST-LINK/V2-A embedded debug tool, two ST MEMS digital accelerometers, a digital microphone, one audio DAC with integrated class D speaker driver, LEDs and push buttons and an USB OTG micro-AB connector.

    NOTE: The package does not contain a USB cable!

    Key Features

    • STM32F407VGT6 microcontroller featuring 32-bit ARM Cortex® -M4 with FPU core, 1-Mbyte Flash memory, 192-Kbyte RAM in an LQFP100 package
    • On-board ST-LINK/V2 on STM32F4DISCOVERY or ST-LINK/V2-A on STM32F407G-DISC1
    • ARM® mbed-enabled ( with ST-LINK/V2-A only
    • USB ST-LINK with re-enumeration capability and three different interfaces:
    -Virtual com port (with ST-LINK/V2-A only)
    -Mass storage (with ST-LINK/V2-A only)
    -Debug port
      • Board power supply: through USB bus or from an external 5 V supply voltage
      • External application power supply: 3 V and 5 V
      • LIS302DL or LIS3DSH ST MEMS 3-axis accelerometer
      • MP45DT02 ST MEMS audio sensor omni-directional digital microphone
      • CS43L22 audio DAC with integrated class D speaker driver
      • Eight LEDs:
      -LD1 (red/green) for USB communication
      -LD2 (red) for 3.3 V power on
      -Four user LEDs, LD3 (orange), LD4 (green), LD5 (red) and LD6 (blue)
      -2 USB OTG LEDs LD7 (green) VBUS and LD8 (red) over-current
        • Two push buttons (user and reset)
        • USB OTG FS with micro-AB connector
        • Extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing
        • Comprehensive free software including a variety of examples, part of STM32CubeF4 package or STSW-STM32068 for legacy standard libraries usage
        • System requiements: Win OS (XP, 7, 8, 10) and mini USB
        • Developer tools:

        1- IAR® EWARM (IAR Embedded Workbench®)
        2- Keil® MDK-ARM™
        3- GCC-based IDEs (free AC6: SW4STM32, Atollic® TrueSTUDIO®,...)
        4- ARM® mbed™ online
