2x16 LCD Screen White on Blue

Product Code
:
17760
Brand / Origin
:
China
Quantity
:
100+
Without Vat
:
11.05 TL
Quantity:

-

+

Same Day Shipping
If you purchase before 3pm, your products will ship at the same day. Except saturday and sunday
Add to Favorites
You can add this product on your list and check it later.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (7)
  • Recommend
  • Images
  • Suggestion Box

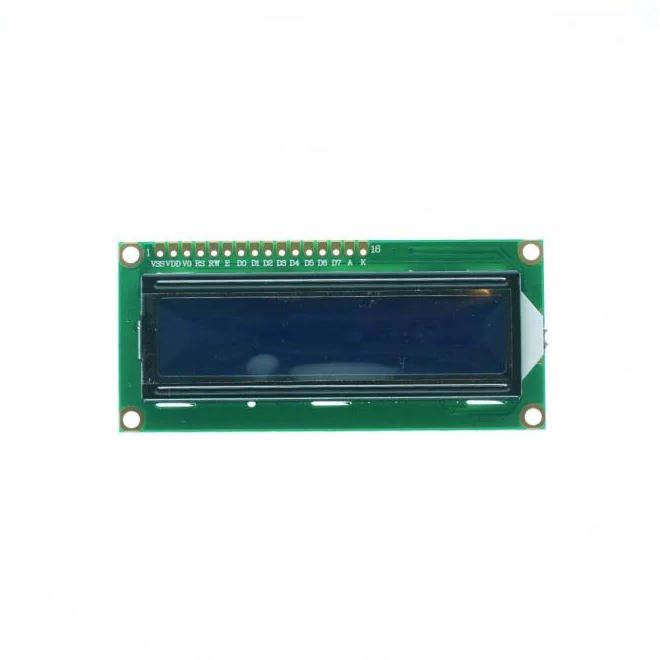

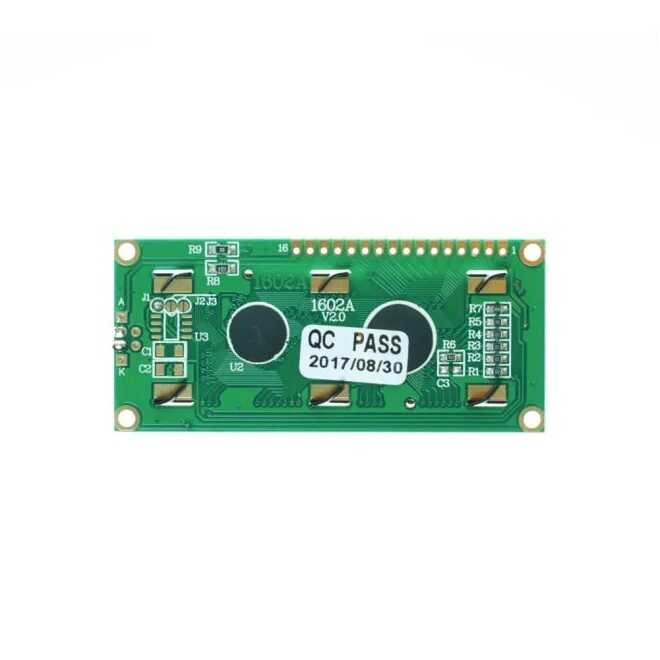

  • It is a quality LCD which you can use in your applications. 16x2 character is written white over blue.

    Features:
    • Operates on +5V.
    • Has Back Lighting feature.
    • Can drawn 4mA current without LCD background ligt.
    • Dimensions: 80x36x9.4mm
    • Operating temperature is between -20 and +70 degree.

    Pinout Table:

    LCD Pin Symbol Function
    1 Vss GND
    2 Vdd +5V
    3 Vo Contrast adjustment
    4 RS Register select
    5 R/W Data read/write
    6 E Enable pin
    7 DB0 Data Bus 0
    8 DB1 Data Bus 1
    9 DB2 Data Bus 2
    10 DB3 Data Bus 3
    11 DB4 Data Bus 4
    12 DB5 Data Bus 5
    13 DB6 Data Bus 6
    14 DB7 Data Bus 7
    15 A LED backlight anode (+5V)
    16 K LED backlight cathode (GND)

    Datasheet
Prepared by  T-Soft E-Commerce.
