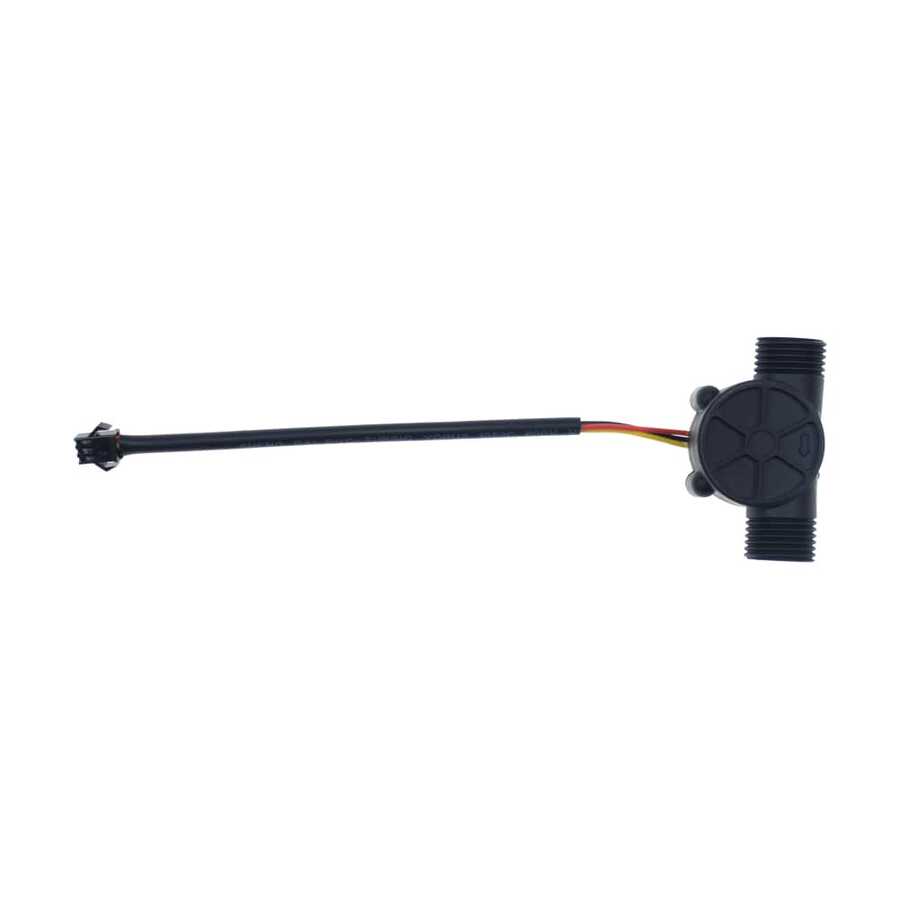

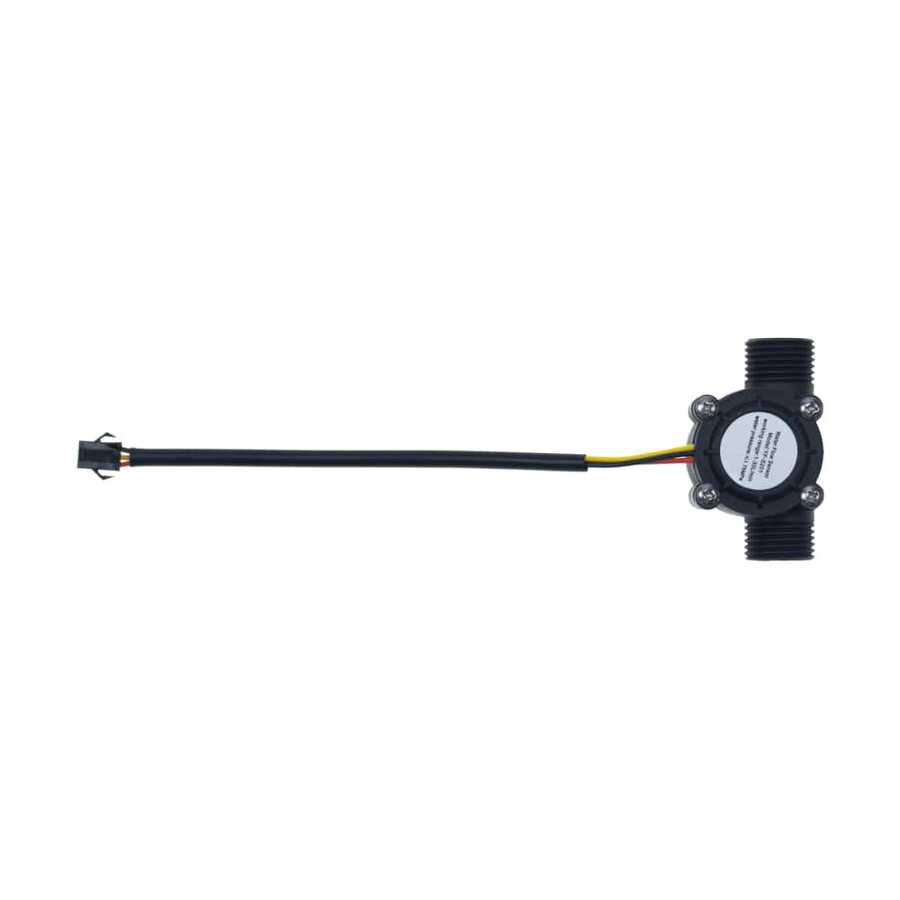

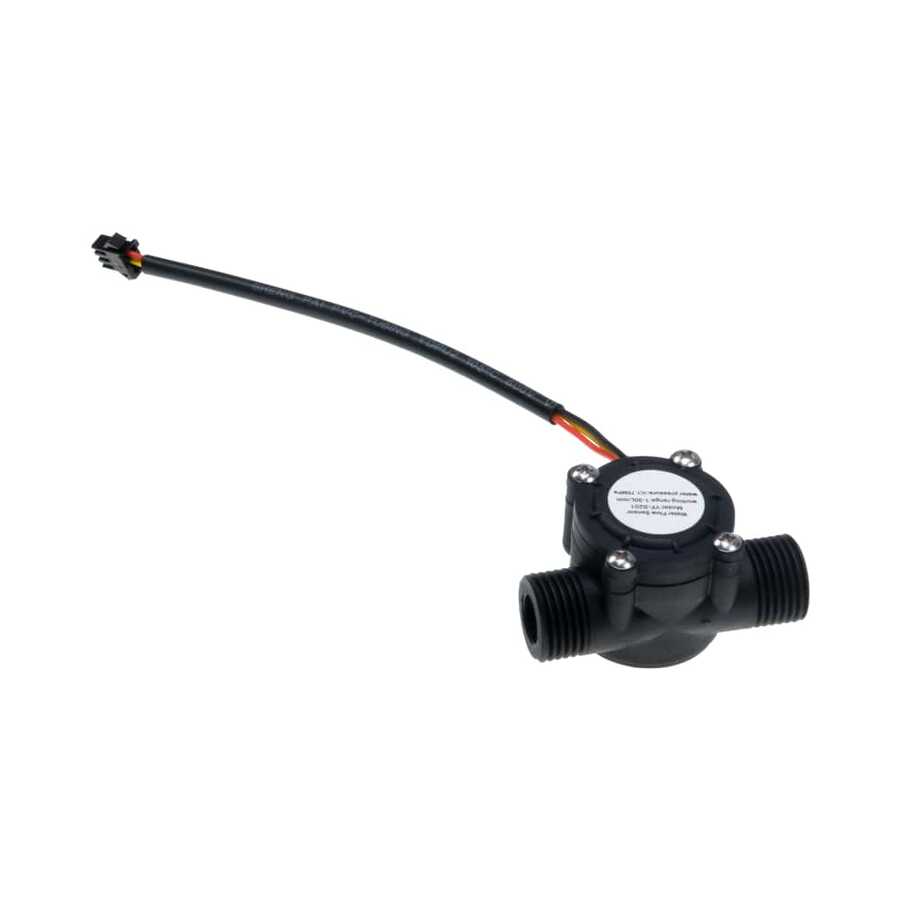

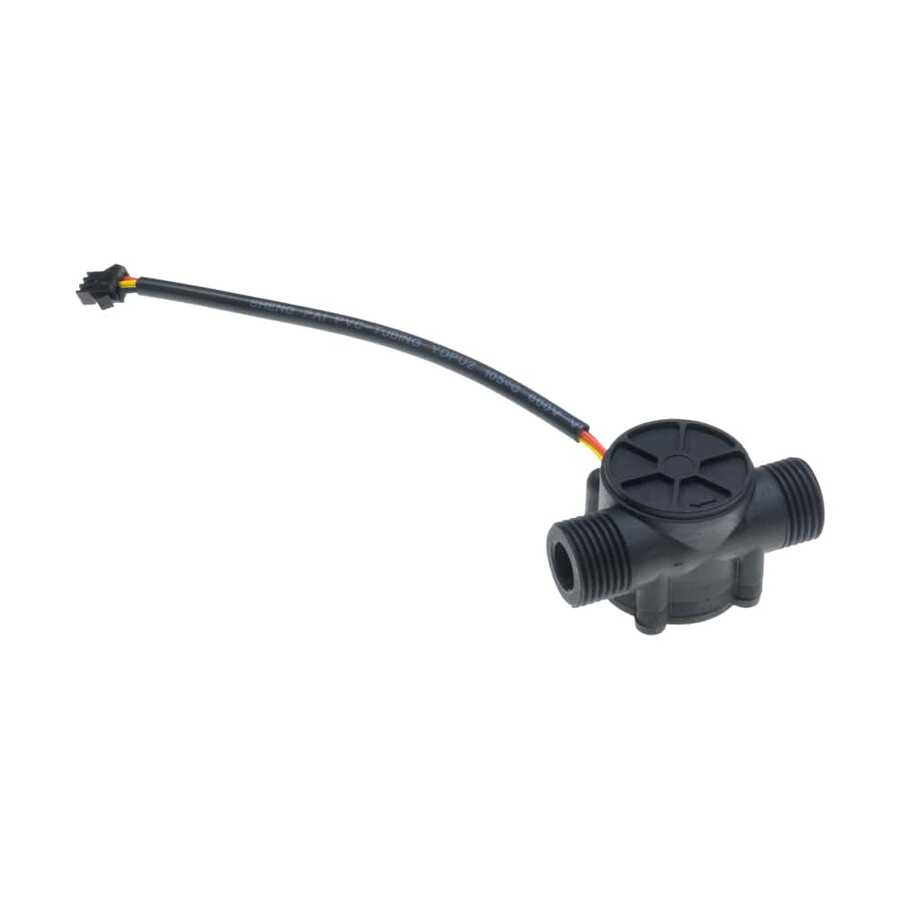

The water flow and hydraulic pressure sensor is a sensor that outputs the number of revolutions of a rotor that rotates thanks to the water flowing through it. The number of rotor revolutions is measured by hall-effect magnetic sensors located inside the sensor. Since it has a digital output, it can be used with many microcontroller platforms, especially Arduino® boards. It can be easily preferred to measure the amount of flowing liquid in a coffee machine or a garden irrigation system.
Water Flow Sensor YF-S201 Features:
- Easy to use
- High performance sealing
- High quality magnetic sensor
- Operating Voltage: DC 5V-24V
- Operating Current: 15 mA (DC 5V)
- Output Type: Digital
- Flow Rate: 1-30 L/min
- Water Pressure: ≤1.75MPa
