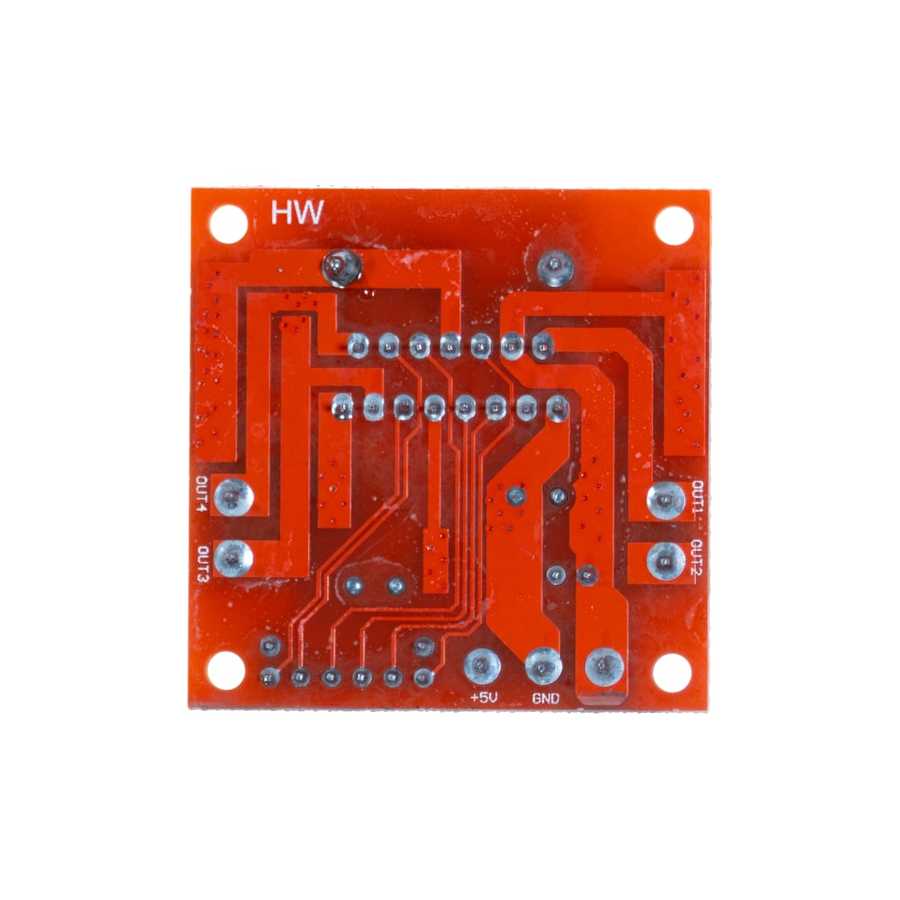

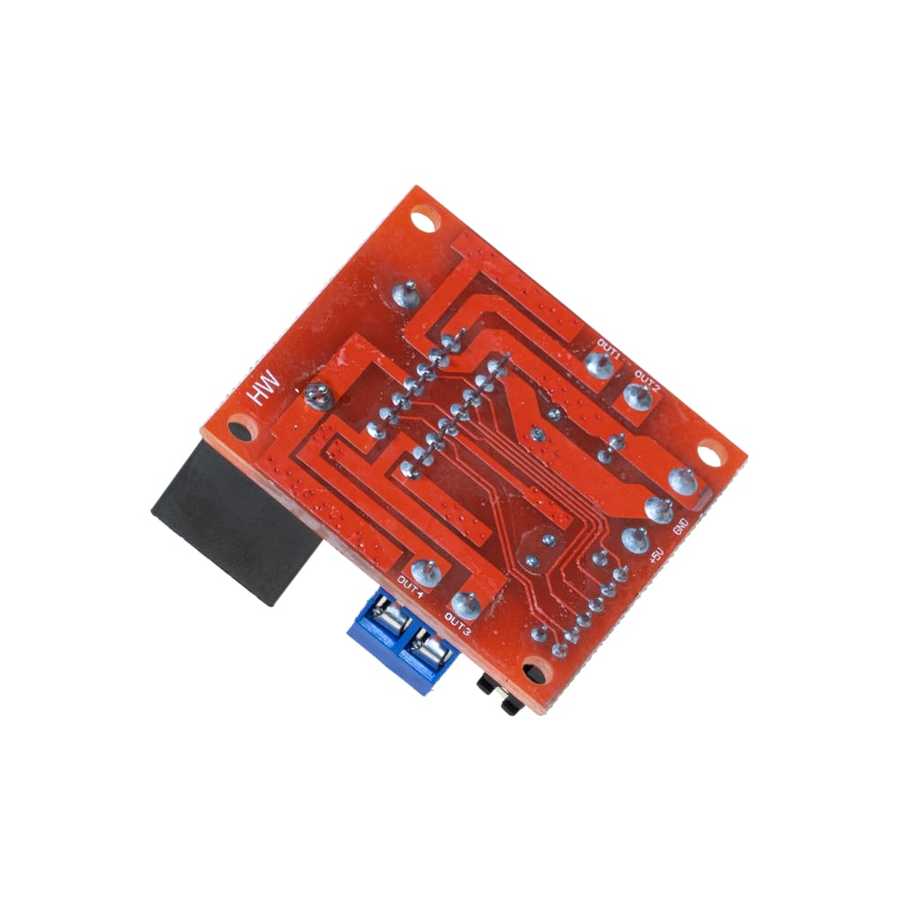

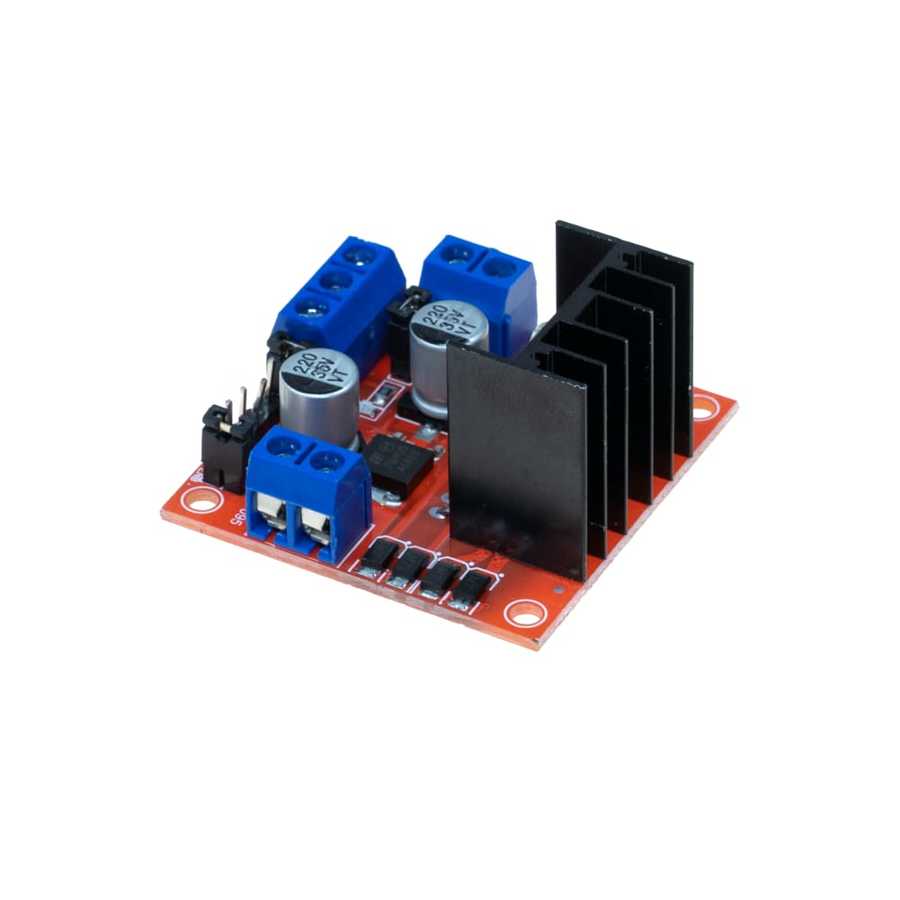

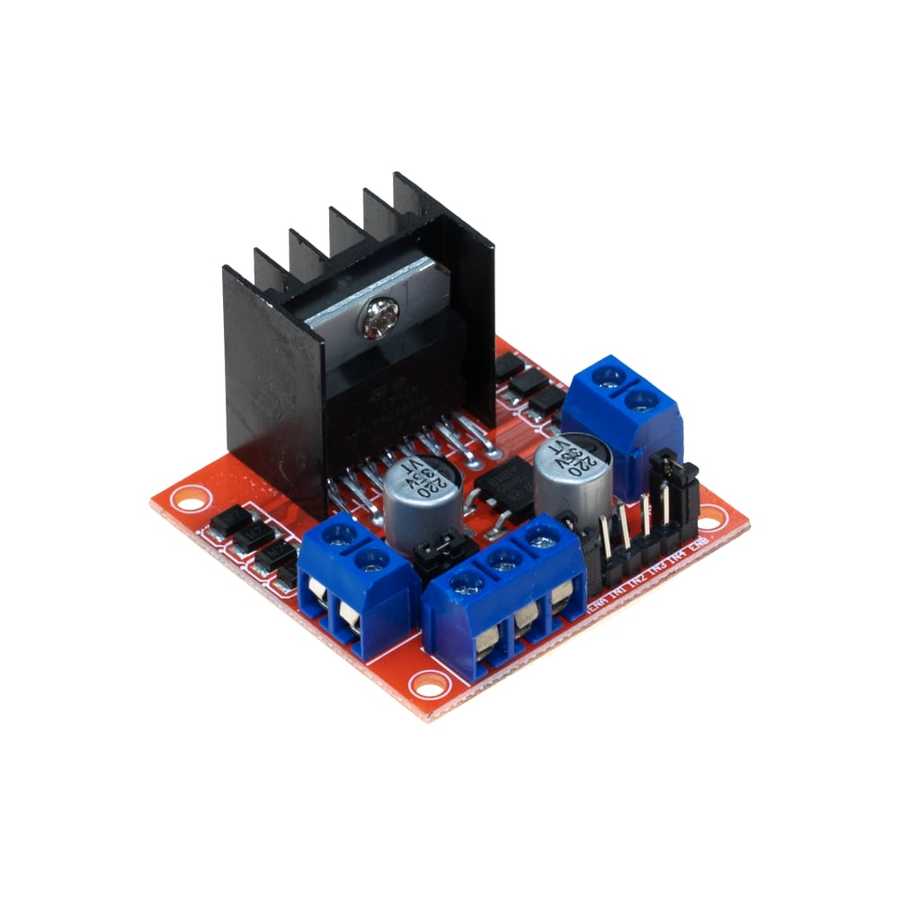

L298N Pair Motor Driver Board with Voltage Regulator(Red PCB)

Product Code
:
11787
Brand / Origin
:
China
Quantity
:
100+
Without Vat
:
9.53 TL
Quantity:

-

+

Same Day Shipping
If you purchase before 3pm, your products will ship at the same day. Except saturday and sunday
Add to Favorites
You can add this product on your list and check it later.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (27)
  • Recommend
  • Images
  • Suggestion Box
  • This motor driver board is designed for motors which operation voltages are up to 24V. Driver has two channel and delivers 2A current per channel. L298N motor driver IC is used on board. Board can be used at various motor control implementations like sumo, mini sumo and line follower robots.


    Board provides step motor control too. For detailed information, you can view example document which is shown in below:

    Features :
    • Board can control two motors seperately.
    • Deliver 2A current per channel.
    • Internal regulator is available.
    • High temperature and shortcut protection is avaliable.
    • LEds, which light according motor direction, are available.
    • Internal cooler is available.
    • Current sense pins are available as emitted.
    • Four screw holes are available at four sides of board.

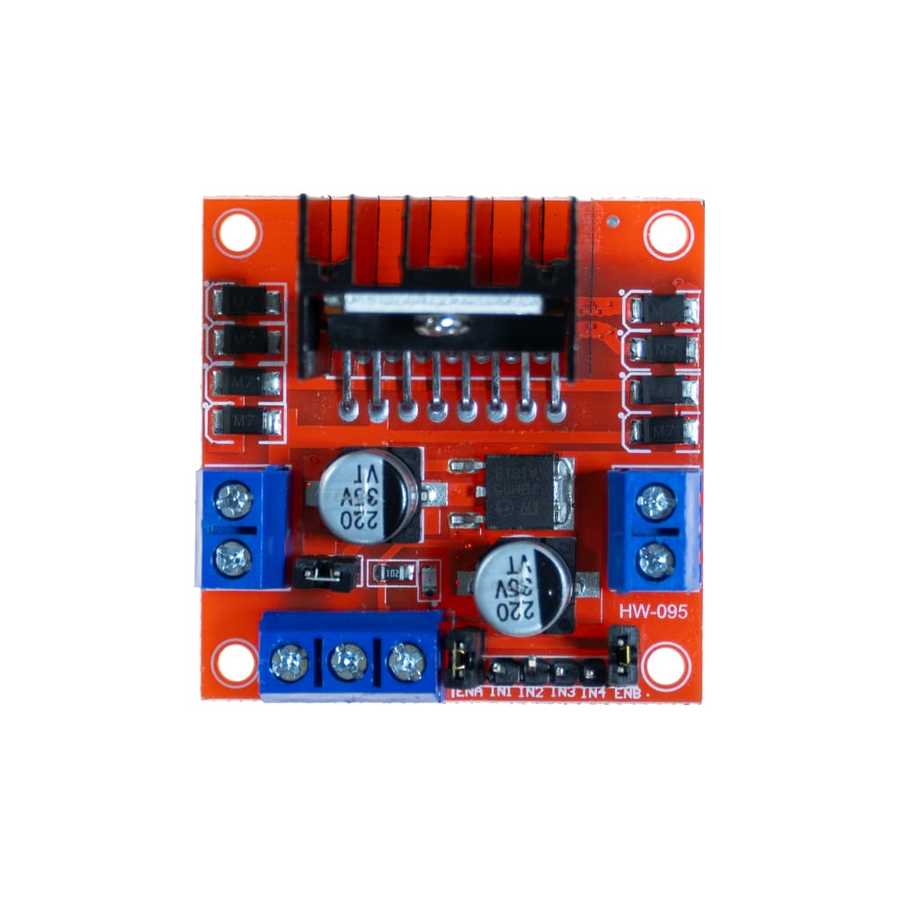

    Pin Mapping:
    • ENA: Pin is used for left motor activation
    • IN1: Left motor 1. input
    • IN2: Left motor 2. input
    • IN3: Right motor 1. input
    • IN4: Right motor 2. input
    • ENB: Pins is used for motor channel activation
    • MotorA: Left motor output
    • MotorB: Right motor output
    • VCC: Supply voltage input(4.8V-24V)
    • GND: Ground connection
    • 5V: 5V output

    Jumper plugged pins are available on the board. These pins can be used for optional usages and activate different properties.
    • CSA: Current output of A motor driver. With a jumper, current draw value can be read as anlog voltage value.
    • CSB: Current output of B motor driver. With a jumper, current draw value can be read as anlog voltage value.
    • V1 is a jumper plugged to the pull-up resistor which sends IN1 input to 5V directly. Through this, as you don't plug it to ground, pin voltage level stays as 5V.
    • V1 is a jumper plugged to the pull-up resistor which sends IN2 input to 5V directly. Through this, as you don't plug it to ground, pin voltage level stays as 5V.
    • V1 is a jumper plugged to the pull-up resistor which sends IN3 input to 5V directly. Through this, as you don't plug it to ground, pin voltage level stays as 5V.
    • V1 is a jumper plugged to the pull-up resistor which sends IN4 input to 5V directly. Through this, as you don't plug it to ground, pin voltage level stays as 5V.
    • 5V-EN jumper activates or deactivates 7805 line. If it's plugged 5v output of board becomes active . If it's unplugged this line becomes deactive.
