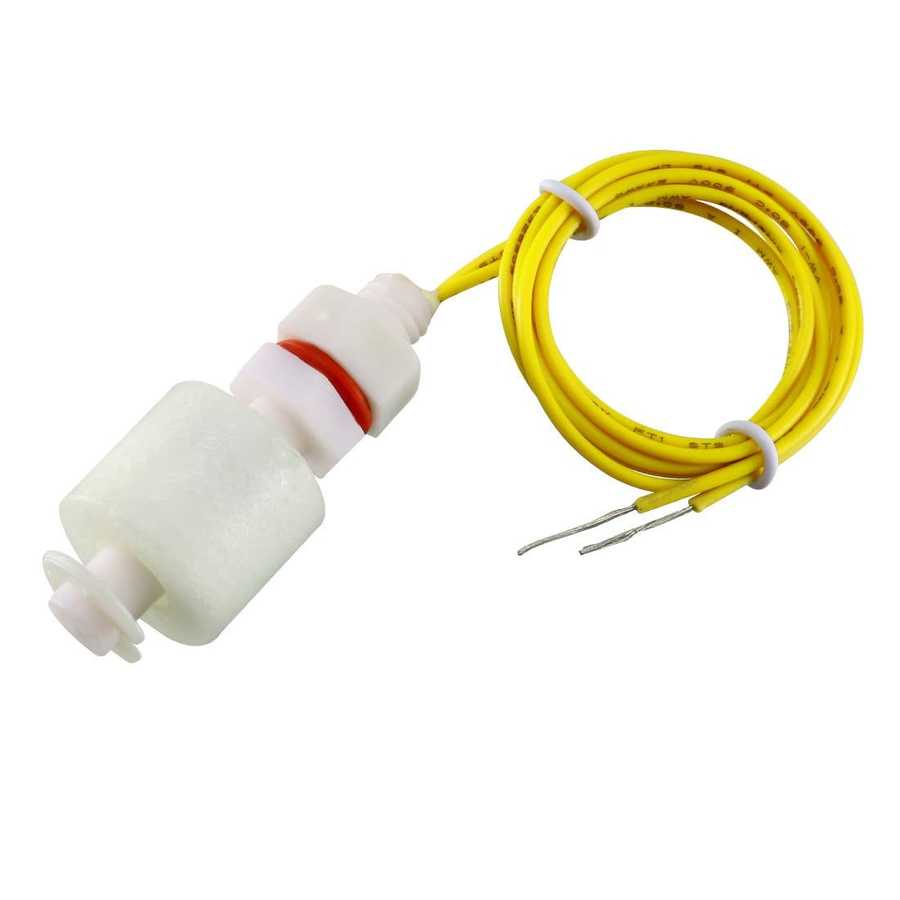

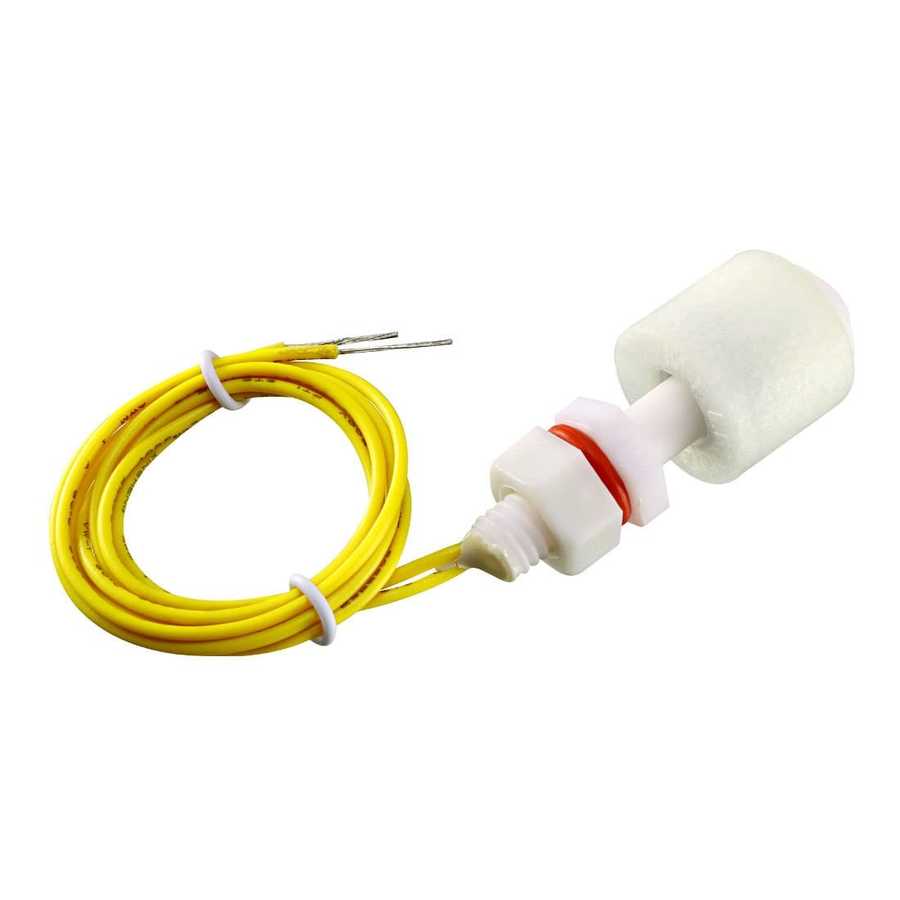

Water Level Switch - ZP3208


A float switch is a device used to sense the liquid level in a tank. The switch can activate a pump, an indicator, an alarm, or any other device.

It can easily be converted to normally open by inverting the float.

Note: Because the current that the switch can carry is very small (0.5A), you must use a relay or contactor when connected with a load, the relay or contactor is not included.

  • Model No. ZP3208
  • Maximum contact degree : 10 W
  • Maximum switching voltage : 100 V DC
  • Maximum switching current : 0.5A
  • Maximum breakdown voltage : 220 V DC
  • Maximum load current : 1A
  • Maximum contact resistance : 100mΩ
  • Temperature rating : -10 / + 85 ° c
  • Float ball material : P.P
  • Float body material : P.P
  • Thread diameter (approx) : 7.5mm / 0.3 "
  • Change body size : 19x46mm / 0.75 "x 1.81" (Max D * H)
  • Cable length : 36 cm / 14.2 "
  • Color : White
  • Net weight : 31g
