STM32F103C6T6A Development Board

STM32F103C6T6A Development Board

It is a development board with an STM32F103C6T6A microcontroller, produced based on the Arduino® Nano size. The microcontroller features a 32-bit ARM Cortex-M3 core. It is a powerful and economical solution for those who want to improve themselves in the field of embedded systems.

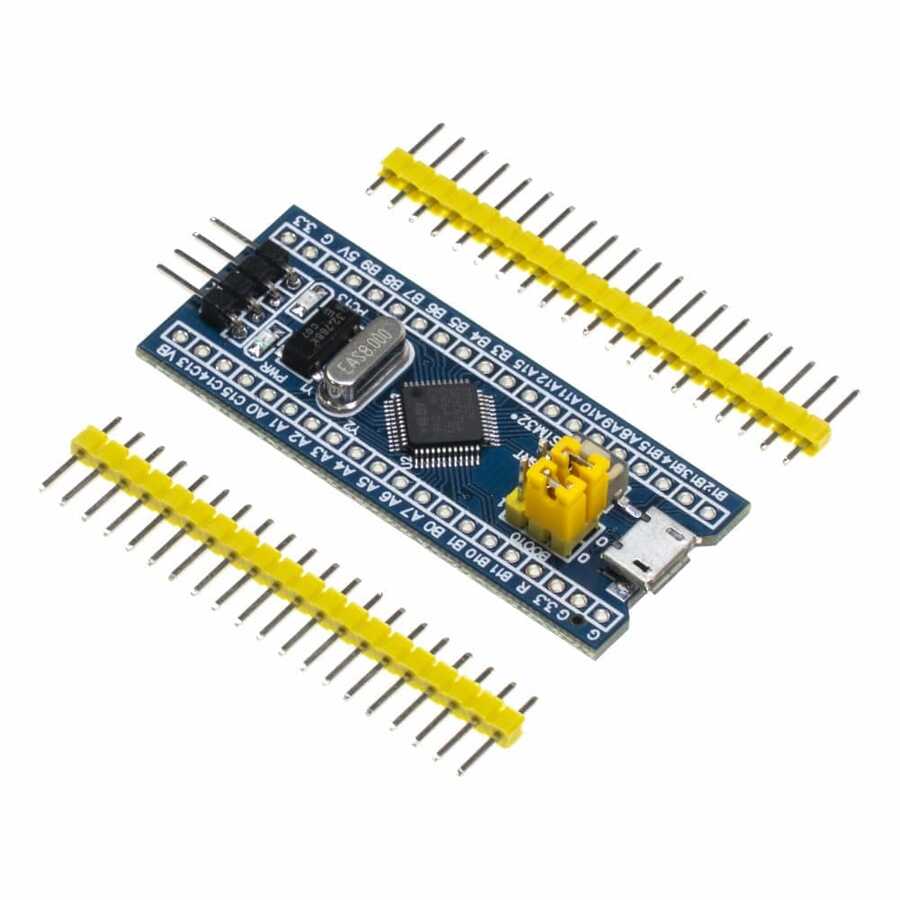

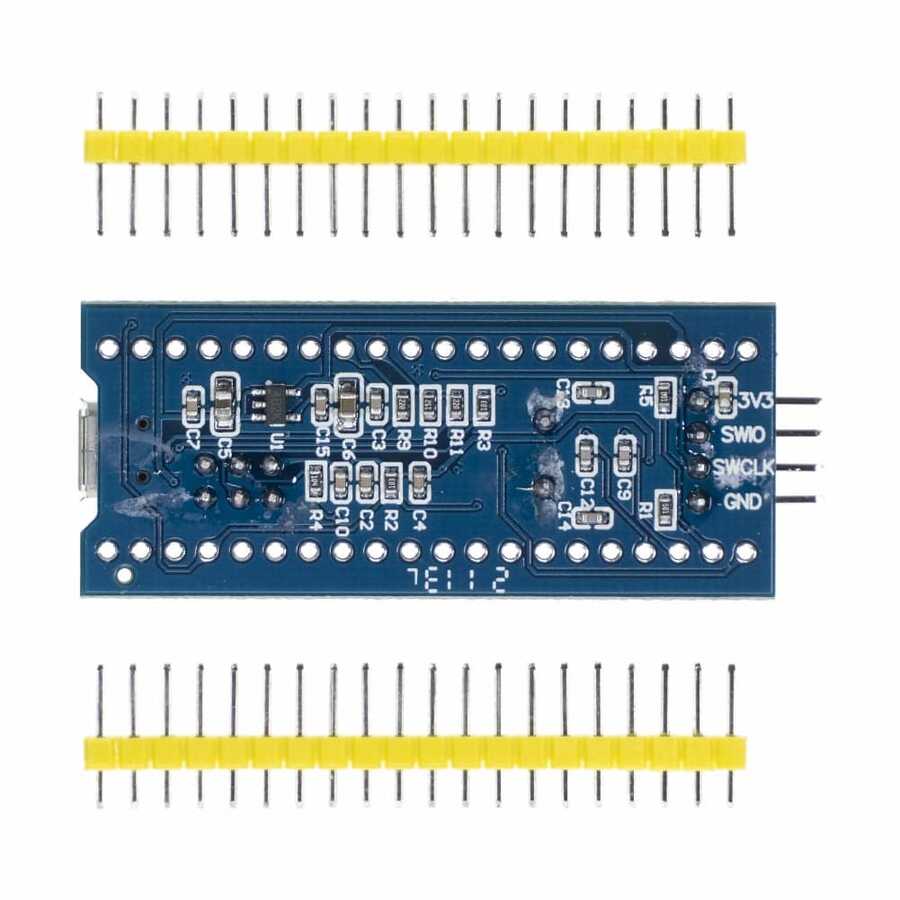

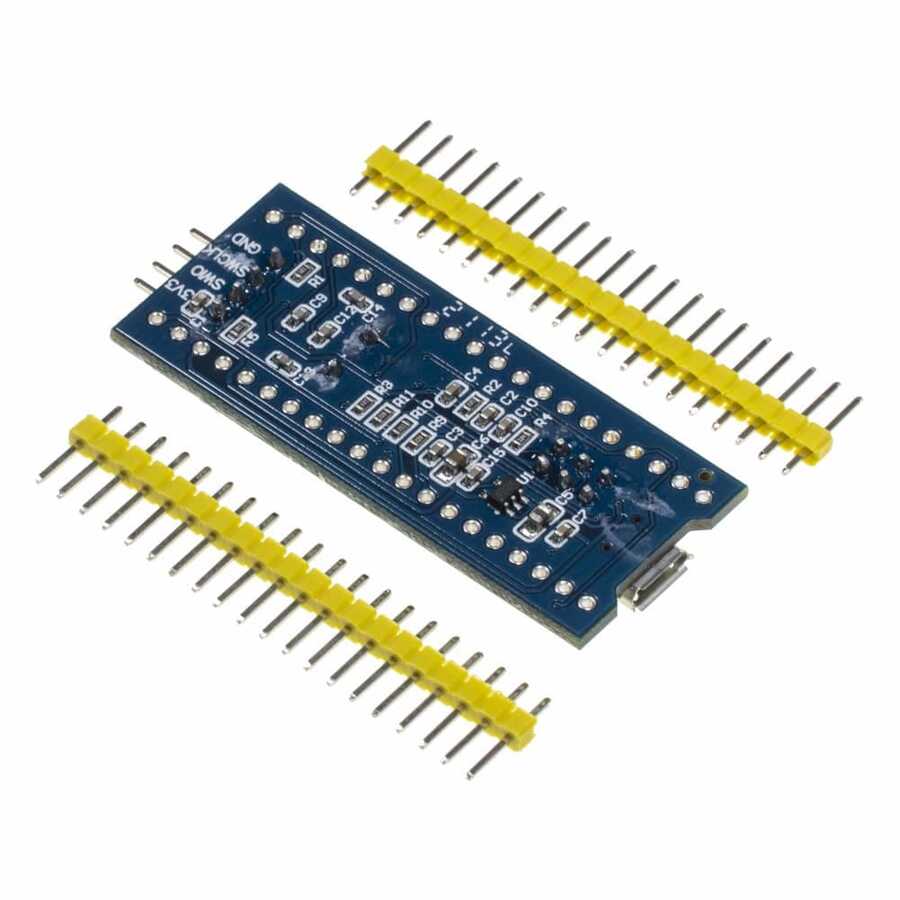

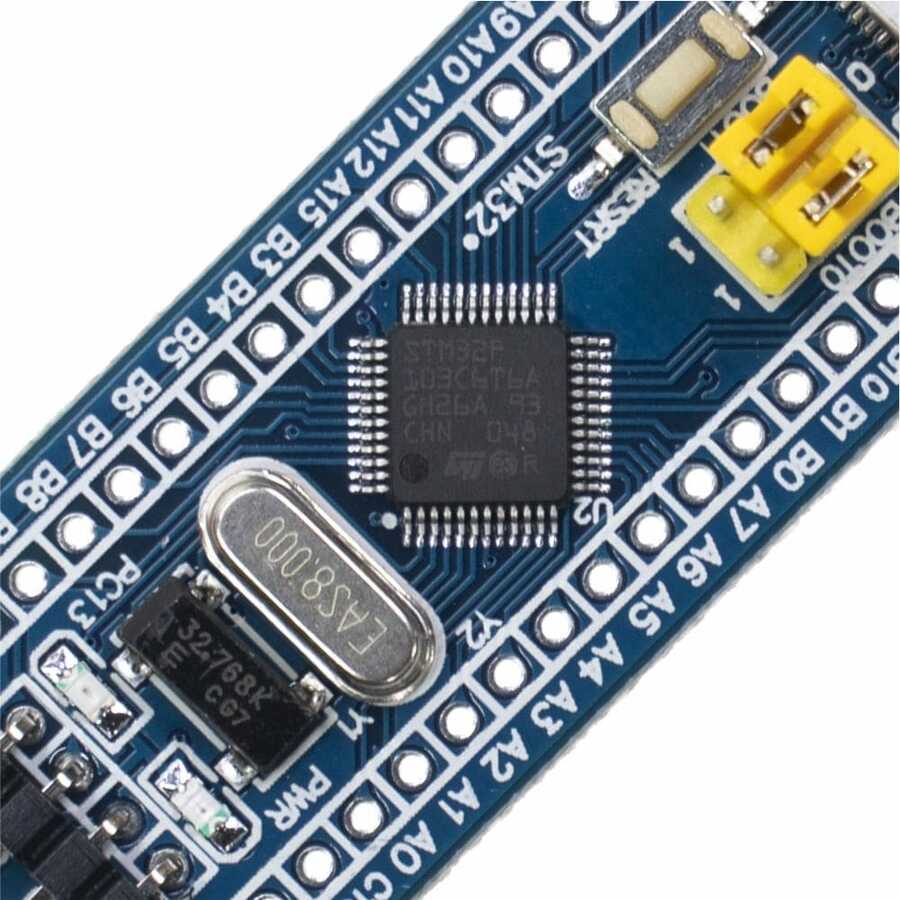

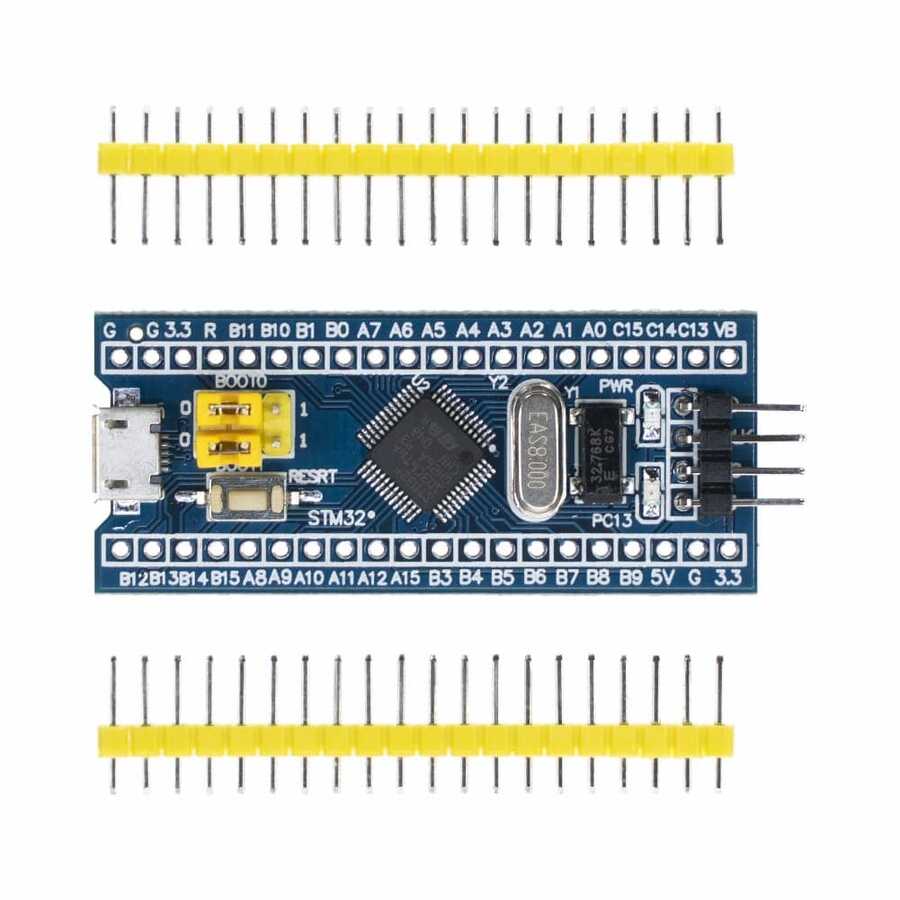

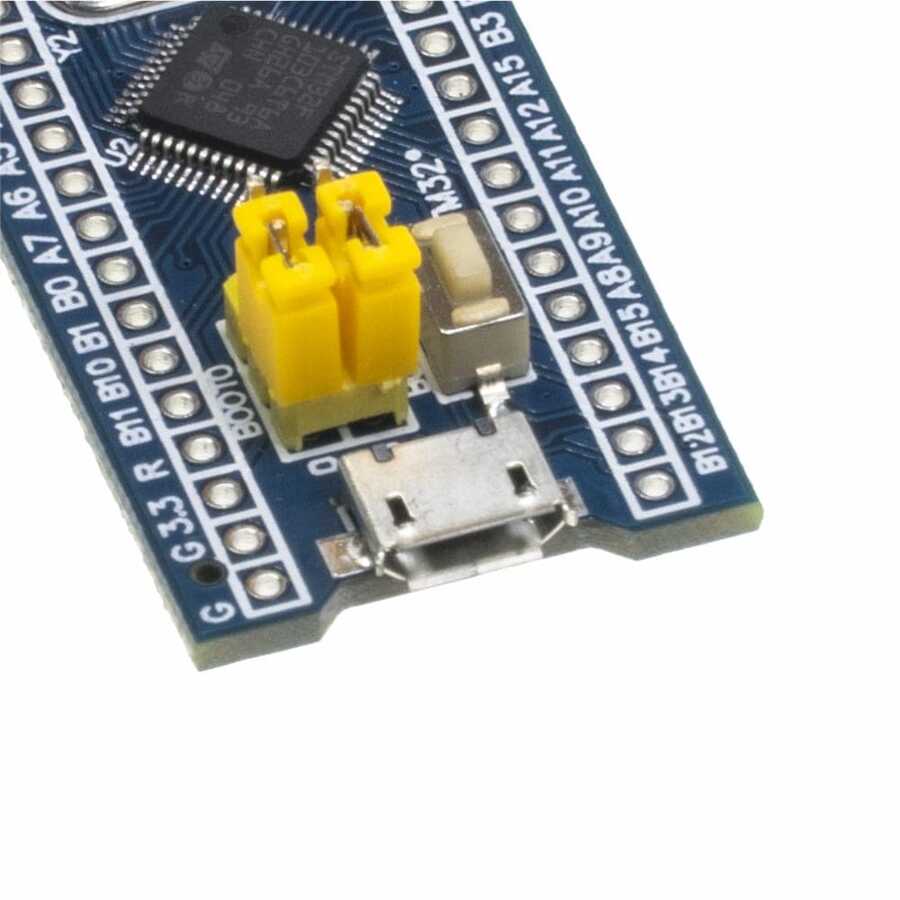

The board includes headers connected to the microcontroller pins, 3.3V-5V outputs, a USB interface, a built-in SMD LED, and jumpers for mode switching (operating-programming mode).

With its simple design, it meets the requirements needed from a development board. The board comes with unsoldered headers. It is an excellent starting point for those who aim to improve themselves by getting familiar with ARM architecture.

The STM32F1 series is the name of the entry-to-mid-level microcontroller family produced by ST. STM32F103C6T6A is a powerful microcontroller suitable for many of your projects.

You can program the STM32 development board using ST-LINK with compilers such as Keil or IAR.

You can also install the STM32duino bootloader on the board. This allows you to program the board via the Arduino® IDE.

How to Program an STM32 Development Board with Arduino® IDE?

STM32F103C6T6A Development Board Technical Specifications:

• Microcontroller: STM32F103C6T6A
• Core: ARM 32 Cortex-M3 CPU
• Package Type: LQFP
• Operating Voltage: 2.7V – 3.6V
• Analog Inputs: 10 (12-bit)
• Digital IO Pins: 37
• 72 MHz Operating Frequency (max.)
• Flash Memory: 32KB
• SRAM: 20KB
• Timers: 3(16-bit), 1 (PWM)
• Supported Communication Protocols: I2C, SPI, UART, CAN, USB (2x SPI, 3x USART, 2x I2C, 1x CAN)
• Built-in USB Interface

STM32F103C6T6A Development Board Useful Links and Documents:

• Product Schematic
• STM32F103C6T6A Datasheet
• Getting started with STM32 using Arduino® IDE: Blinking LED
