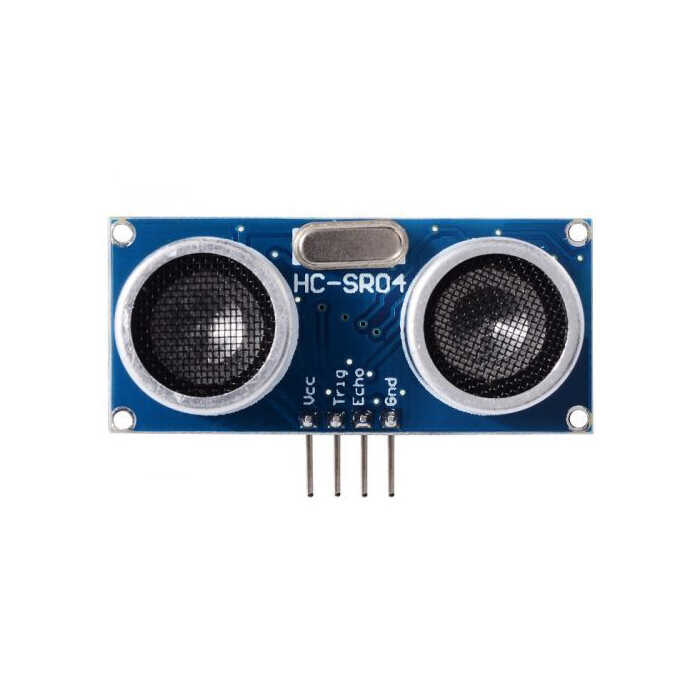

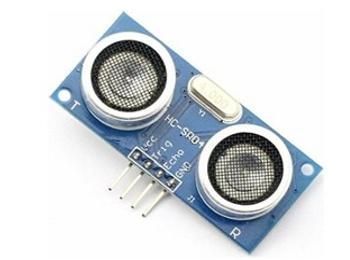

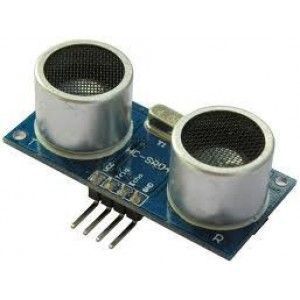

HC-SR04 Ultrasonic Distance Sensor

Product Code
:
13050
Brand / Origin
:
China
Quantity
:
100+
Without Vat
:
4.79 TL
Quantity:

-

+

Same Day Shipping
If you purchase before 3pm, your products will ship at the same day. Except saturday and sunday
Add to Favorites
You can add this product on your list and check it later.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (36)
  • Recommend
  • Images
  • Suggestion Box
  • This ultrasonic sensor has a 3mm sensitivity and 2-400cm range. It can be used in distance measuring, radar and robot applications.

    Operating Voltage DC 5V
    Current Draw 15 mA
    Operating Frequency 40 Hz
    Maximum Sight Range 4m
    Minimum Sight Range 2cm
    Sight Angle 15°
    Trigger Pin Input Signal
    10 us TTL Darbesi
    Echo Pin output Signal
    Giriş TTL sinyali ve Mesafe Oranı
    Dimesions 45mm x 20mm x 15mm
