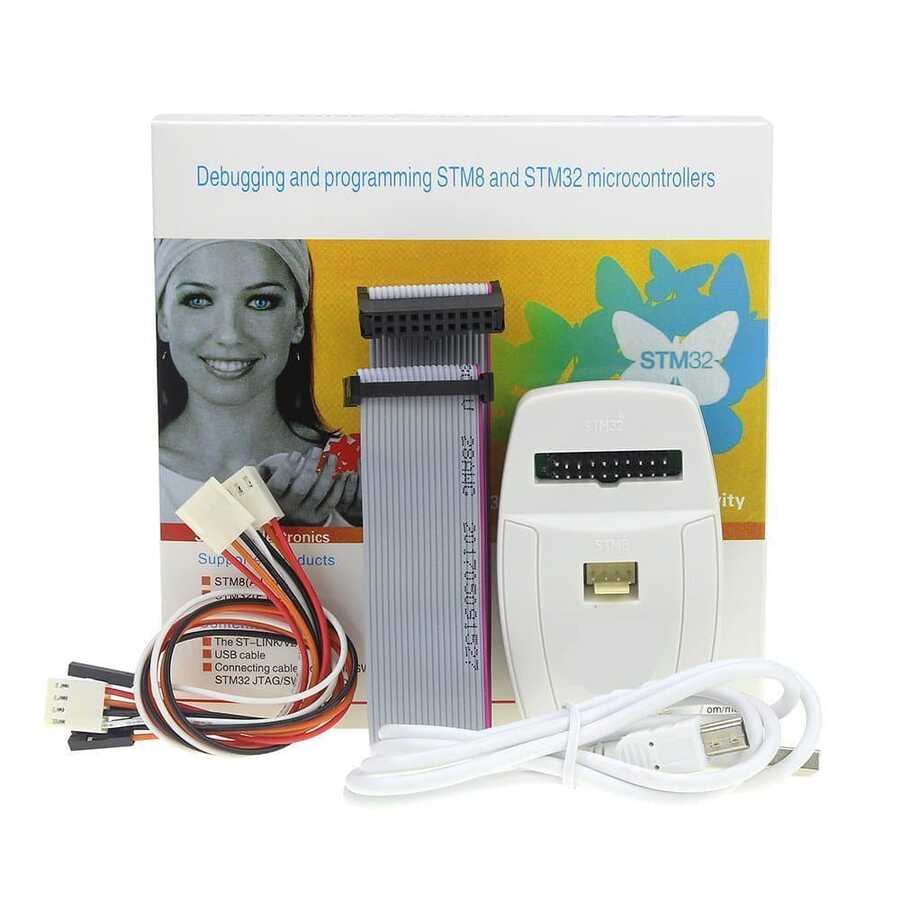

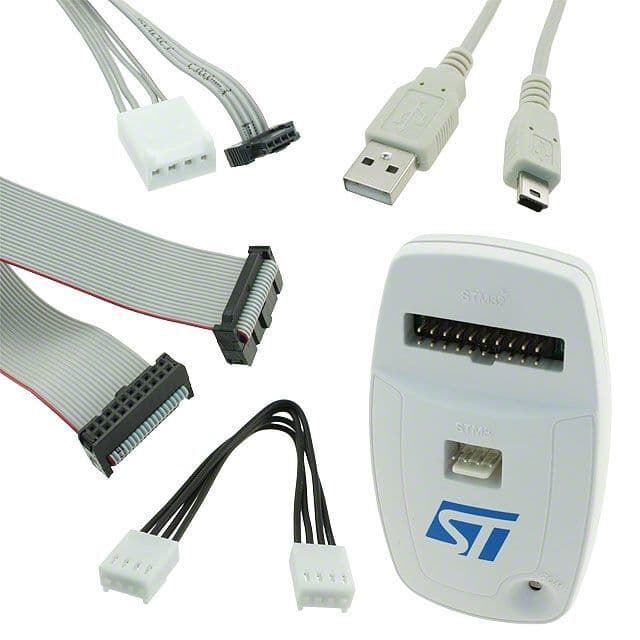

ST-LINK V2 - STM8 STM32 Programmer

ST-LINK V2 - STM8 STM32 Programmer, This programming card, developed by STMicroelectronics engineers, helps STM microcontrollers to detect errors in program loading and more importantly in applications. This device, which allows you to perform very fast operations, has SWIM, JTAG and SWD interface features. This programmer is also very helpful for beginners to experience how the codes work. Supporting low and high working speeds, this device provides working opportunities in different dynamics.

3 (14).jpg (33 KB)

ST-LINK V2 Specifications:

  • Operating Voltage: 5V/DC (Supplied by USB connector.)
  • USB 2.0
  • 1.65V to 5.5V Application Voltage Support in SWIM interface
  • SWIM Low Speed ​​and High Speed ​​Modes Support
  • SWIM Programming Speed ​​Rates: 9.7kbyte/s at Low Speed, 12.8kbyte/s at High Speed
  • SWIM Cable for Connection to an Application with ERNI Standard Connector
  • SWIM Cable for Connection to an Application with Pin Headers or 2.54mm Pin
  • Connectors
  • 1.65V to 3.6V Application Voltage Support and 5V Tolerant Inputs in JTAG/SWD
  • Interface
  • JTAG Cable for Connection to a Standard JTAG 20-Pin 2.54mm Pitch Connector
  • Direct Firmware Update Support (DFU)
  • Status LED Flashes During Communication with PC
  • Operating Temperature: 0-50C
  • 1000 V rms High Isolation Voltage (ST-LINK/V2-ISOL only))
