  • MX1508 DC Motor Driver Module - 2 Channel PWM Speed ​​Control

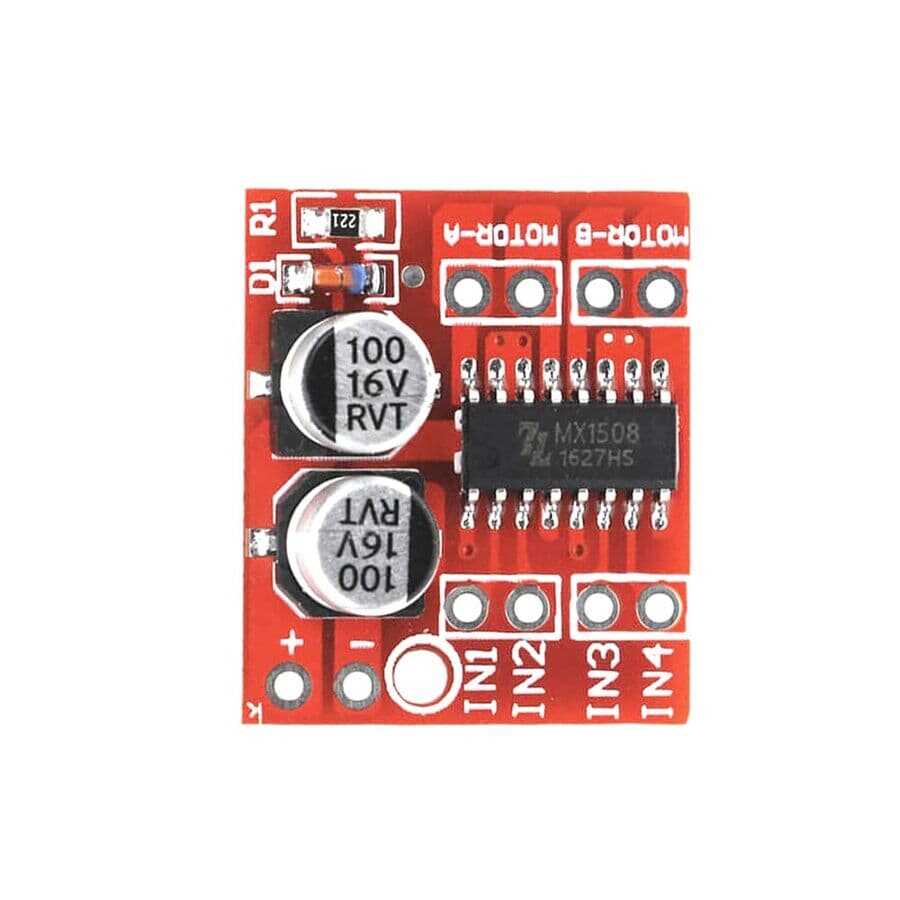

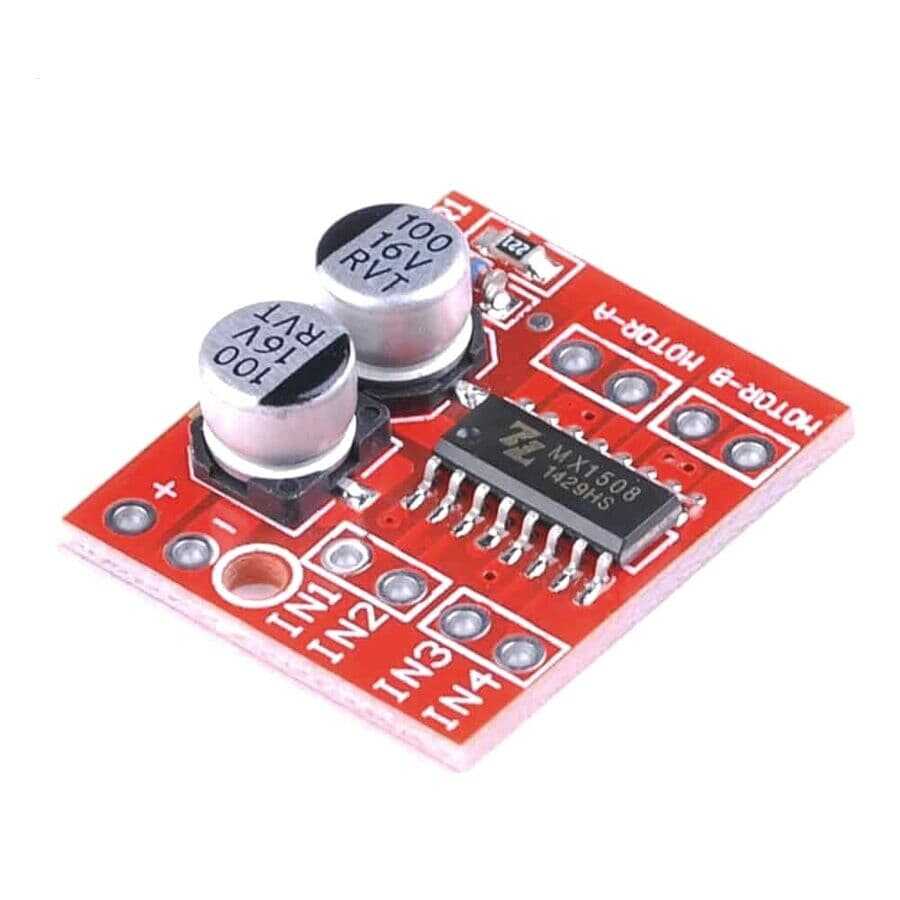

    MX1508 DC Motor Driver Module is a driver board that you can control the rotation speeds and rotation directions of two different DC motors separately from each other by using the double H-bridge integrated on it. You can also control a 4-pin, 2-phase single stepper motor depending on the need. This driver is frequently preferred by project builders due to its advantages such as easy use, small size and low cost. The board works by applying an input voltage between 2V and 10V in accordance with the "+" and "-" pins on the board. In order to control, the "IN" inputs must be connected so that control signals are applied, and the motors to be controlled must be connected to the "MOTOR A" and "MOTOR B" outputs.

    4 (13).jpg (30 KB)


    MX1508 DC Motor Driver Module Technical Specifications:

    • Input Voltage: 2-10V/DC
    • Control Signal Voltage: 1.8-7V/DC
    • Single Motor Working Current: 1.5A
    • Working Current: 2.5A (Max.)
    • Driver Type: Double H Bridge Motor Driver
    • 2 DC or 1 Step Motor Control
    • Width: 25mm
    • Length: 21mm
    • Height: 7mm
    • Screw Hole Diameter: 2mm
