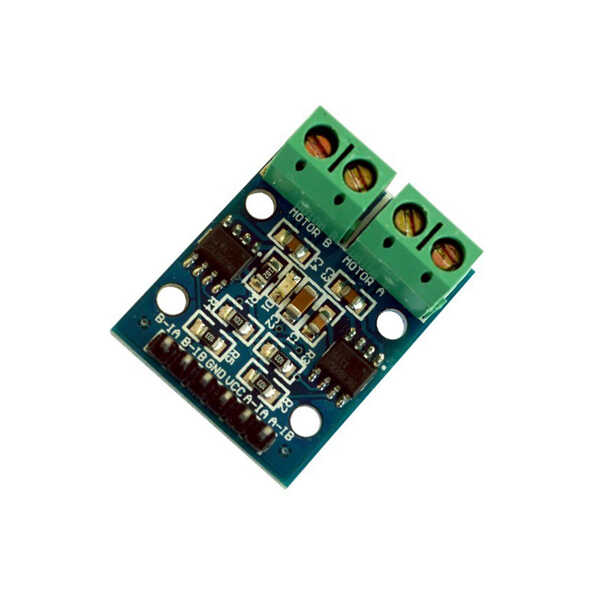

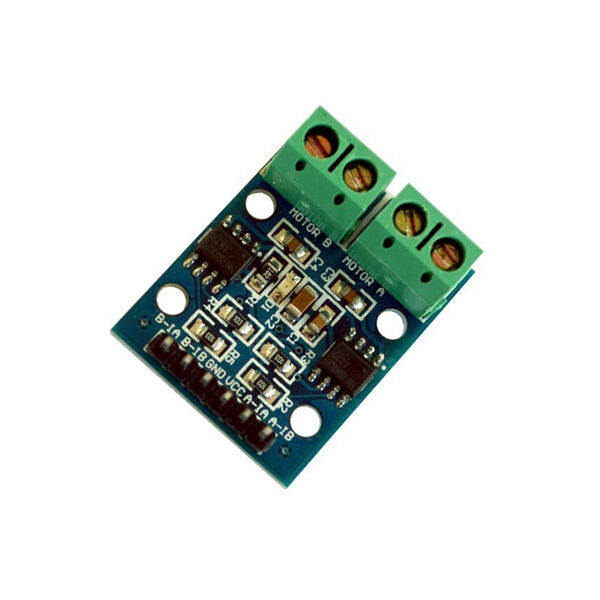

L9110 Pair Motor Driver Board

Product Code
:
11780
Brand / Origin
:
China
Quantity
:
0
Without Vat
:
13.33 TL
Out of stock Alert when in stock
Same Day Shipping
If you purchase before 3pm, your products will ship at the same day. Except saturday and sunday
Add to Favorites
You can add this product on your list and check it later.
- Gerilim düşümü hk. - , Motor sürücülerin çıkışlarında koruyucu diyot bulunduğundan bir miktar gerilim düşümü mutlaka olacaktır.
5/ 5
- Hiçbir Sıkıntı Görmedim - , Bence gayet güzel bir motor sürücü kartı. Hiç bir sıkıntı yaşamadım. Diğer motor sürücü kartları kocaman bu minik.
5/ 5
- - , L293D gibi motor besleme girişine uygulanan gerilimi çıkışta düşürme yapar mı
3/ 5
34.3333333333333 Add Comment
Share:
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (3)
  • Recommend
  • Images
  • Suggestion Box
  • L9110 Pair Motor Driver Board is a proper priced, and small sized DC motor driver board. L9110 motor driver IC is available on the board. Driver board works with 2,5-12V input voltage range. Through this board, you can drive two seperate DC motor at different directions or 4 cabled diphase step motor. Driver output voltage is 7,6V. Through this, baord can be used easily with 6V motors. Board delivers continuously 800mA and peak 2A. Board can be used at Mini sumos, line follower robots and various motor control implementations. Enaple pin is not available on the board. Channels are active all the time. PWM can be pluuged to inputs directly.
    Features:
    • Board can control two motors seperately.
    • Deliver 800mA current per channel.
    • Deliver 7,5V voltage per channel.
    • Dimensions : 31 mm x 22 mm
    • Weight : 7 gr
    Pin Mapping:
    • IA2: Left motor 1. input
    • IB2: Left motor 2. input
    • IA1: Right motor 1. input
    • IB1: Right motor 2. input
    • GND: Ground Connection
    • Vcc: Supply Voltage
