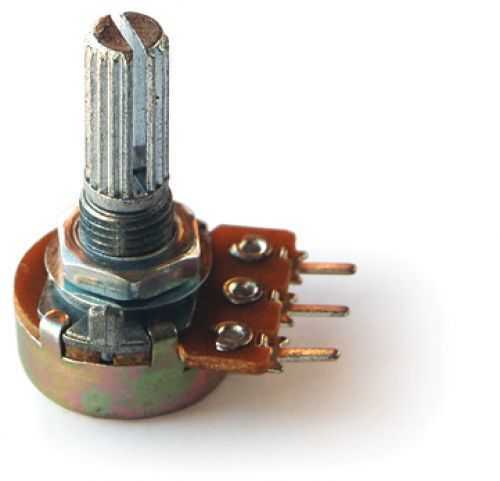

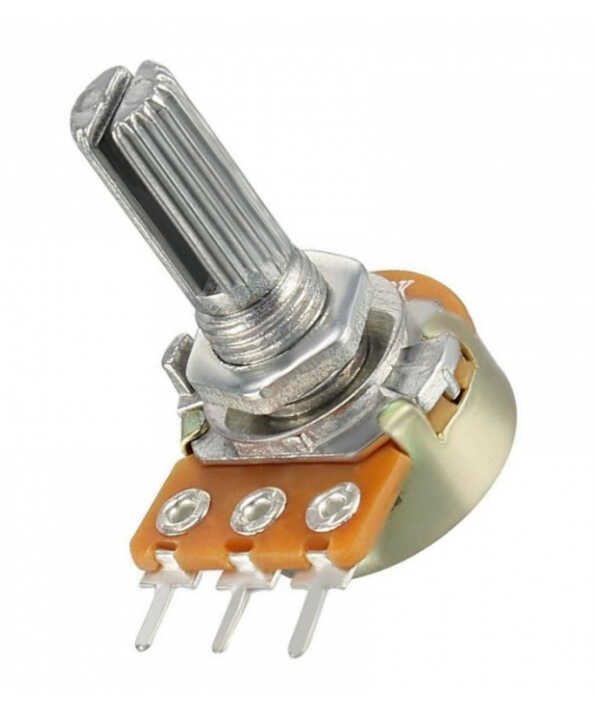

100K Potansiometer - WH148

100K Potentiometer - WH148

The WH148 series 100K potentiometer is a rotary adjustable resistor ideal for applications that require variable resistance in electronic projects. With this potentiometer, you can precisely adjust voltage or signal levels in your circuit and use it in audio control, LED brightness adjustment, and other analog control applications. Its 100 KΩ resistance value and standard 3-pin connection ensure easy integration. Featuring a carbon film resistive element and long shaft design, the WH148 offers reliable performance and is commonly preferred in projects using Arduino, Raspberry Pi, or other control boards.

100K Potentiometer - WH148 Technical Specifications:

• Model: WH148 - 100K potentiometer

• Resistance Value: 100 KΩ – B100K

• Tolerance: ±20 % (typical)

• Type: Rotary potentiometer

• Resistive Element: Carbon film

• Number of Pins: 3 pins

• Shaft Diameter: ~6 mm

• Shaft Length: ~13–16 mm (long shaft version)

• Mounting Type: Through-Hole (THT)

• Applications: Audio control, light dimmers, analog level adjustments, hobby electronics
