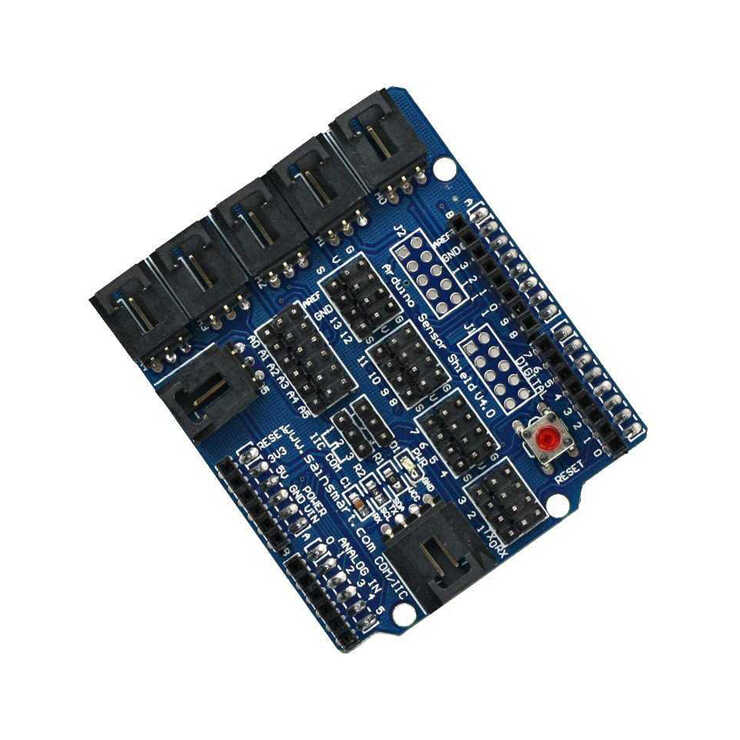

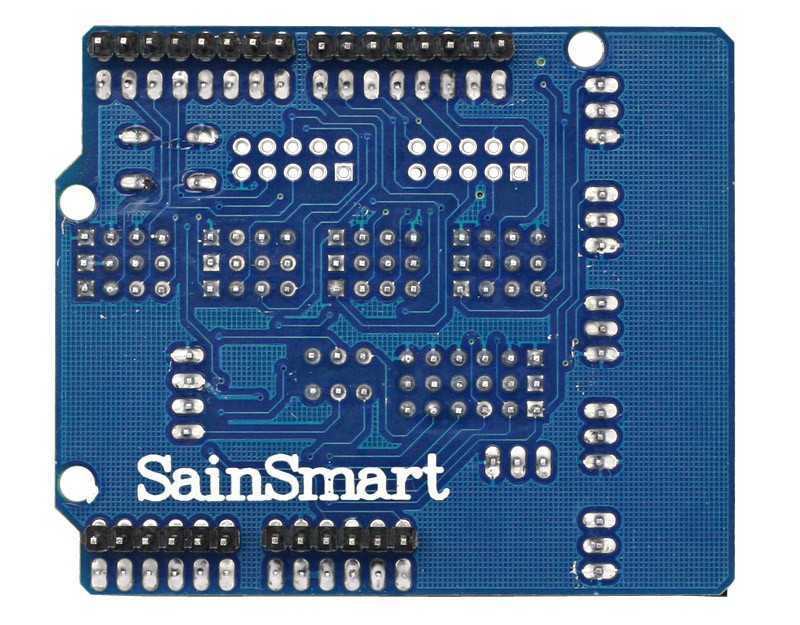

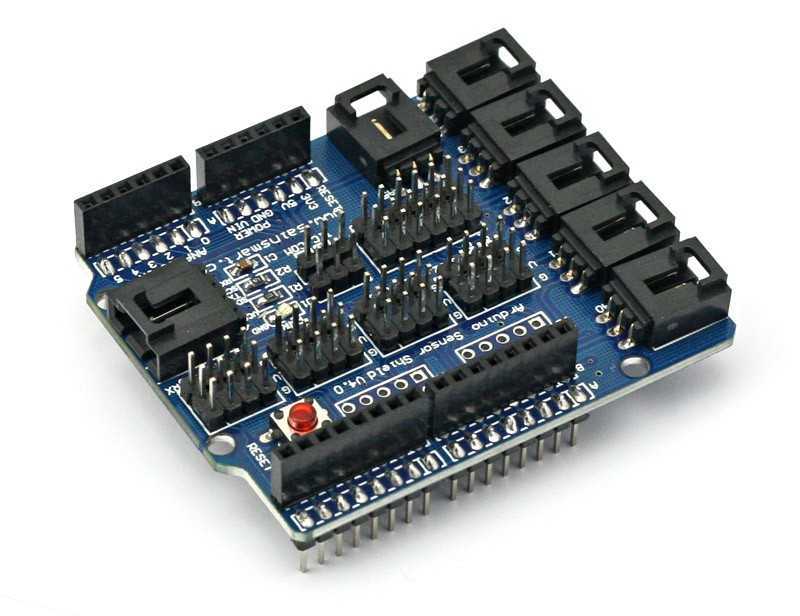

The Uno Sensor Shield for Arduino is a highly useful expansion module designed for you to use together with hardware in the Arduino® ecosystem, allowing you to plug in many input/output units onto the board without complex wiring.
It is specifically optimized for the original Arduino® UNO R3 model; however, it can also be used seamlessly with the Arduino® Leonardo or other compatible boards that have a similar pin structure.

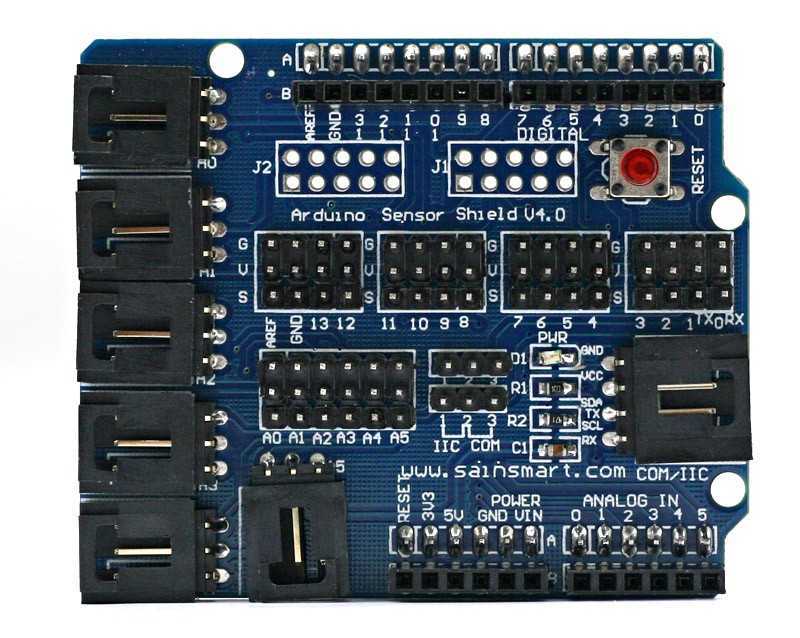

All digital and analog input/output pins of the microcontroller on the board are distributed across the board in clusters of 3 pins in the order of DATA (Signal), VCC (5V), and GND (Ground).
This way, all kinds of sensors, servo motors, relays, and similar hardware can be easily plugged into the board and used without the need for complex breadboard setups.
In addition, the UART and I2C ports have been placed in separate sections on the board for comfortable use. The "Communication Port" connector can be configured as I2C or UART according to your needs using the jumpers on the board.
This sensor shield is fully compatible with standard UNO hardware. It can also be physically plugged in and used with the Arduino® Mega 2560 R3 and Leonardo models. However, because the I2C and SPI ports on these models are located on different pins, only these specific ports cannot be directly used with the Mega and Leonardo.
Note: All of the headers and connectors on it are factory soldered and shipped ready to use.
