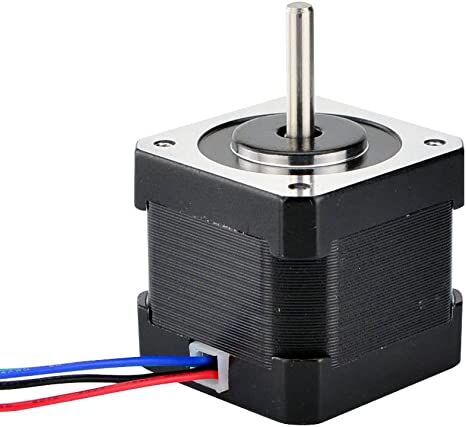

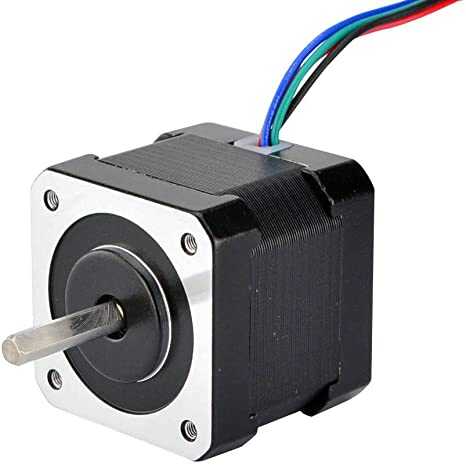

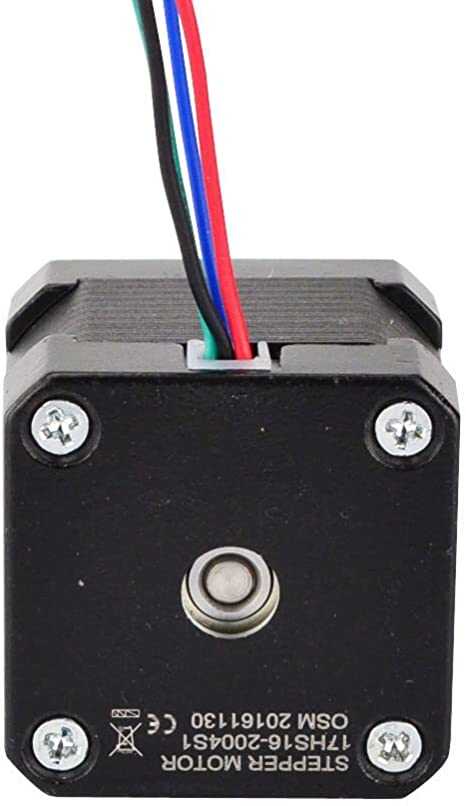

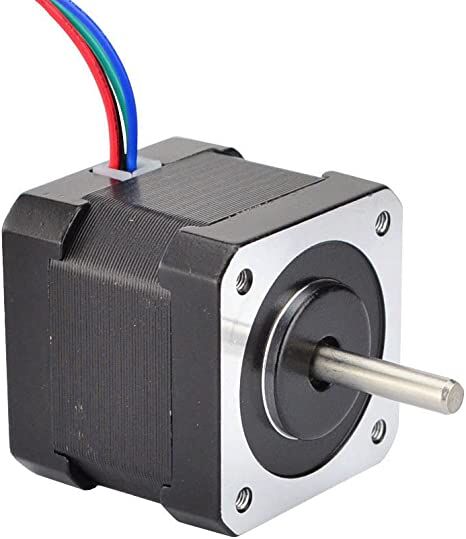

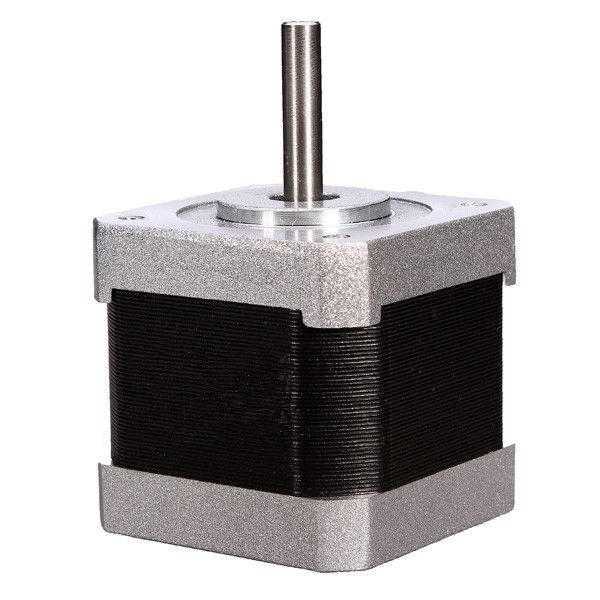

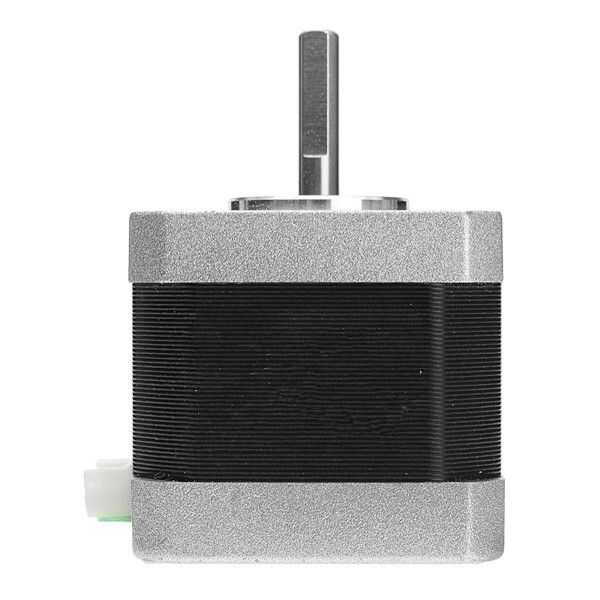

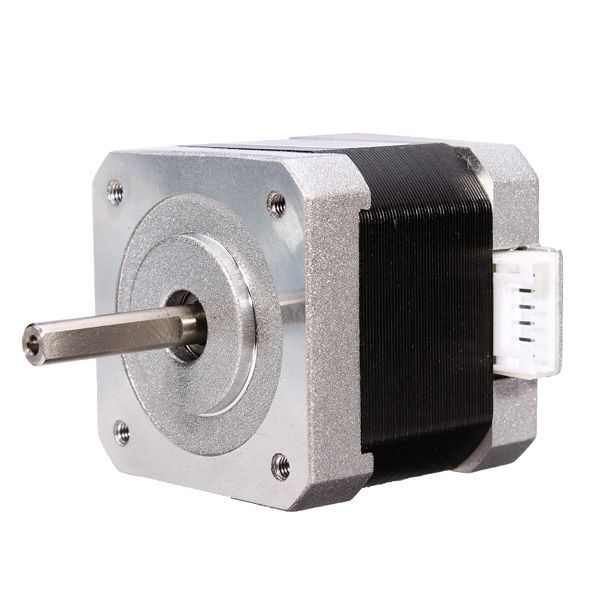

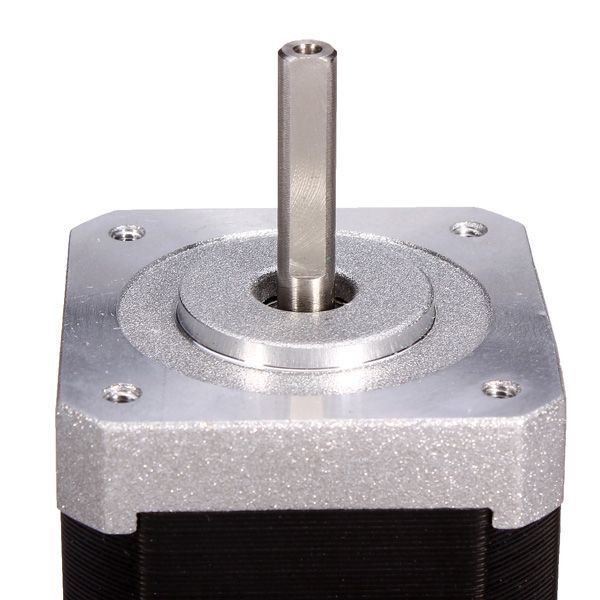

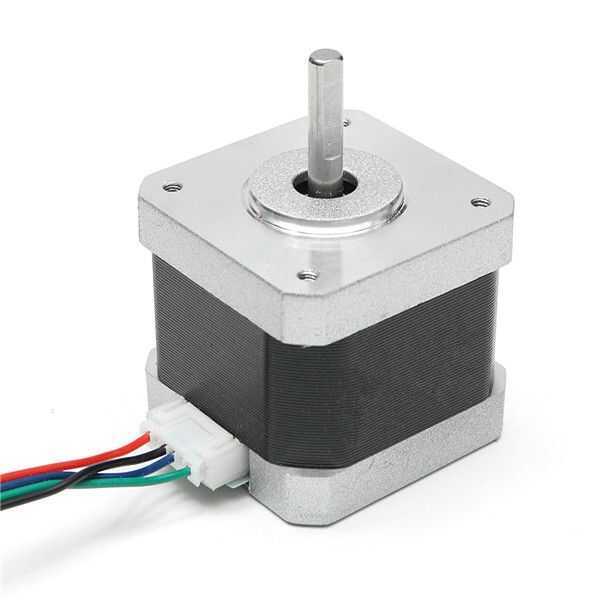

Nema17 Stepper Motor 1.68A BYGHW609

Nema17 Step Motor 1.68A BYGHW609

The Nema17 Step Motor is widely used in projects that require precise positioning, such as 3D printers and CNC machines. Thanks to its digital control capability, it can be easily driven by computers, microcontrollers, or control boards. By converting electrical energy into step-by-step rotational motion, it allows accurate control of angular position. Compared to other step motors, it stands out with its larger body structure and higher torque capacity.

Note: The product is sold without cable.

Nema17 Step Motor 1.68A BYGHW609 Technical Specifications:

• Body Dimensions: 39.50 x 42.50 mm

• Current Rating: 1.68A

• Shaft Diameter: 5 mm

• Shaft Length: 20 mm

• Rated Voltage: 2.8V / 4V (Can also operate with 12V and 24V)

• Coil Resistance: 1.70 Ω (per coil)

• Coil Inductance: 4.5 mH (per coil)

• Holding Torque: 4 kg.cm

• Cable Length: 300 mm
