Mega 2560 R3 Proto Shield Kit with Mini Breadboard for Arduino

Mega 2560 R3 Proto Shield Kit with Mini Breadboard for Arduino

The Mega 2560 R3 compatible proto shield kit helps you turn your projects from a breadboard into a permanent and organized circuit.

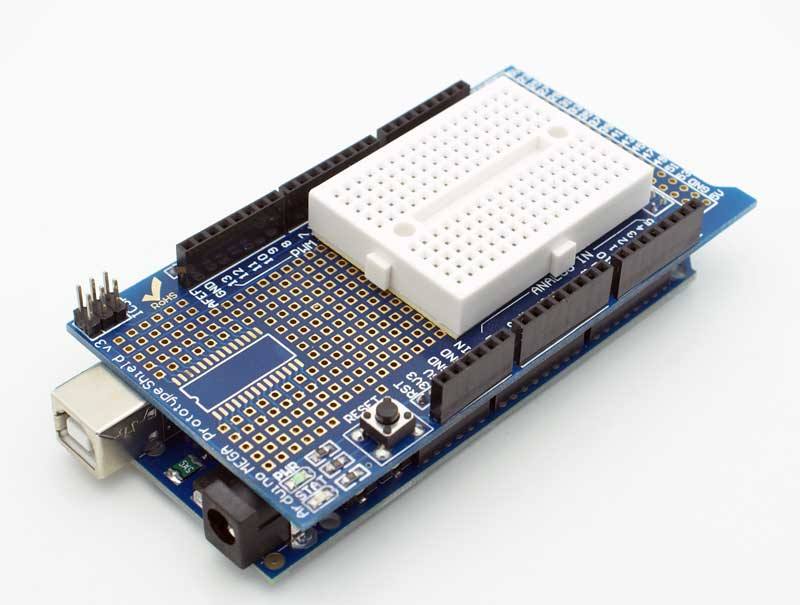

It allows you to professionally use your specially designed circuit schematics together with the original Arduino® Mega 2560 R3 or Mega 2560 R3 Development Board Compatible with Arduino.

Note: The product in the video is the UNO R3 compatible version, but the basic usage is exactly the same as the Mega 2560. The components on it and the pin layout vary.

You can also use this proto shield module without soldering.

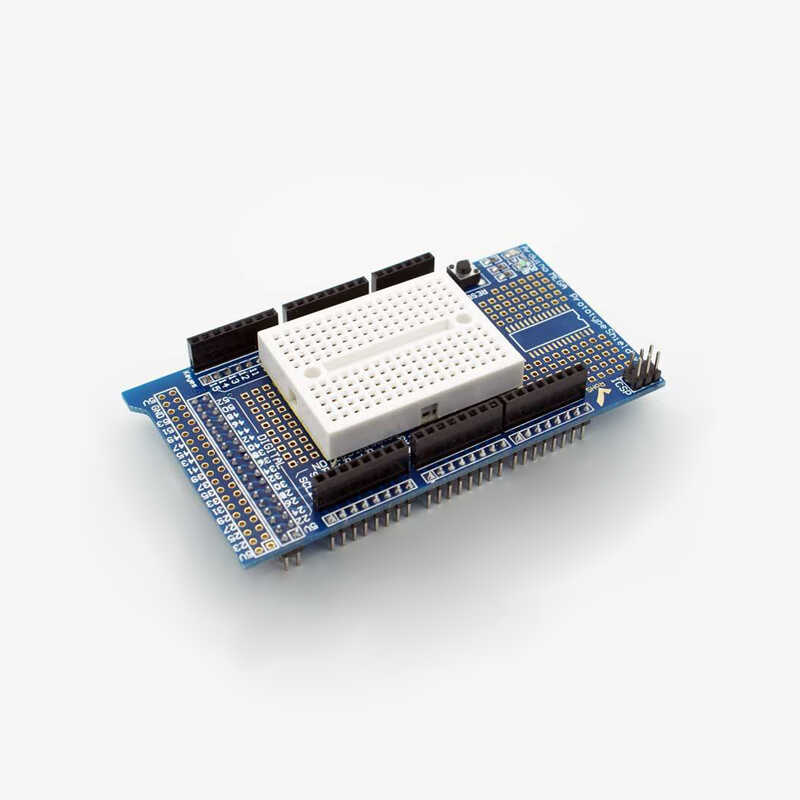

Thanks to the Mini Breadboard included in the kit and placed in the middle section, you can quickly prototype and test without wasting time on soldering.
The Proto Shield brings all hardware pins to an upper level, making access to connections easier. In addition, the special surface mount (SMD) pads on the shield allow you to include these types of components in your projects.

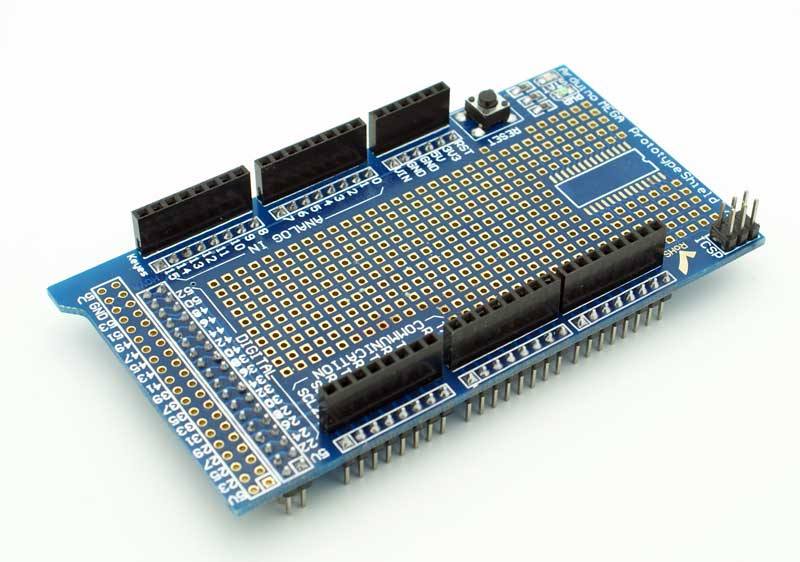

The compatible proto shield has a standard Mega R3 pin layout and features a reset button on the board that provides ease of use.
Note: All headers and connectors on the module are factory soldered and shipped ready to use.

Mega 2560 R3 Proto Shield Kit with Mini Breadboard for Arduino Technical Specifications

• Full compatibility with Mega 2560 R3 pin structure

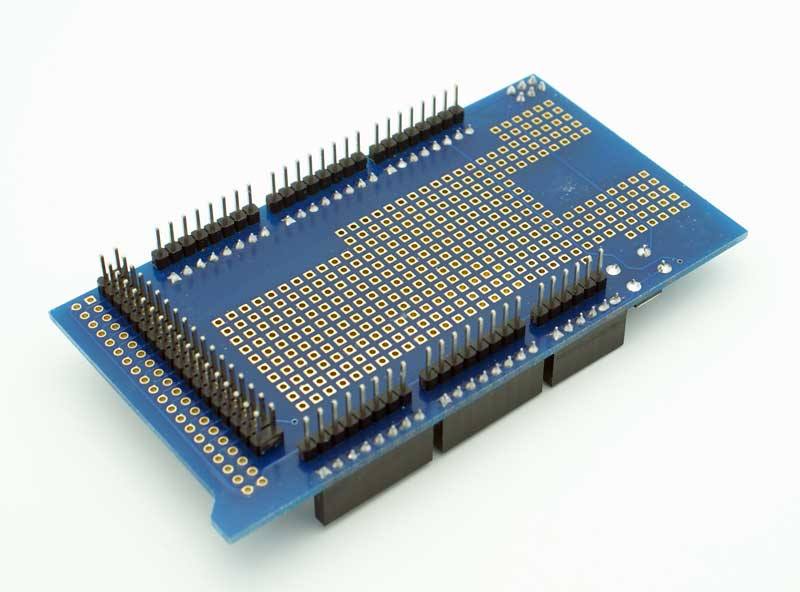

• Soldering area for both SMD and standard (THT) components
• Reset button located on the hardware
• Board Dimensions: 55.9 mm x 105.5 mm

Products That Can Be Used Together:

• Mega 2560 R3 Development Board Compatible with Arduino
• Shield Modules Compatible with Arduino
• Mini Breadboard Types

Documents and Useful Links:

• Proto Shield Usage Guide (Video - English)

If you are unfamiliar with the Arduino® ecosystem, you can check out our Lessons for Arduino® series on our blog.
