UNO R3 Proto Shield Kit with Mini Breadboard for Arduino

UNO R3 Proto Shield Kit with Mini Breadboard for Arduino

The UNO R3 Proto Shield Kit with Mini Breadboard for Arduino helps you turn your projects from a breadboard into a permanent and organized circuit.
It allows you to professionally use your specially designed circuit schematics together with the original Arduino® UNO R3 or UNO R3 Development Board Compatible with Arduino.

You can also use this proto shield without soldering.

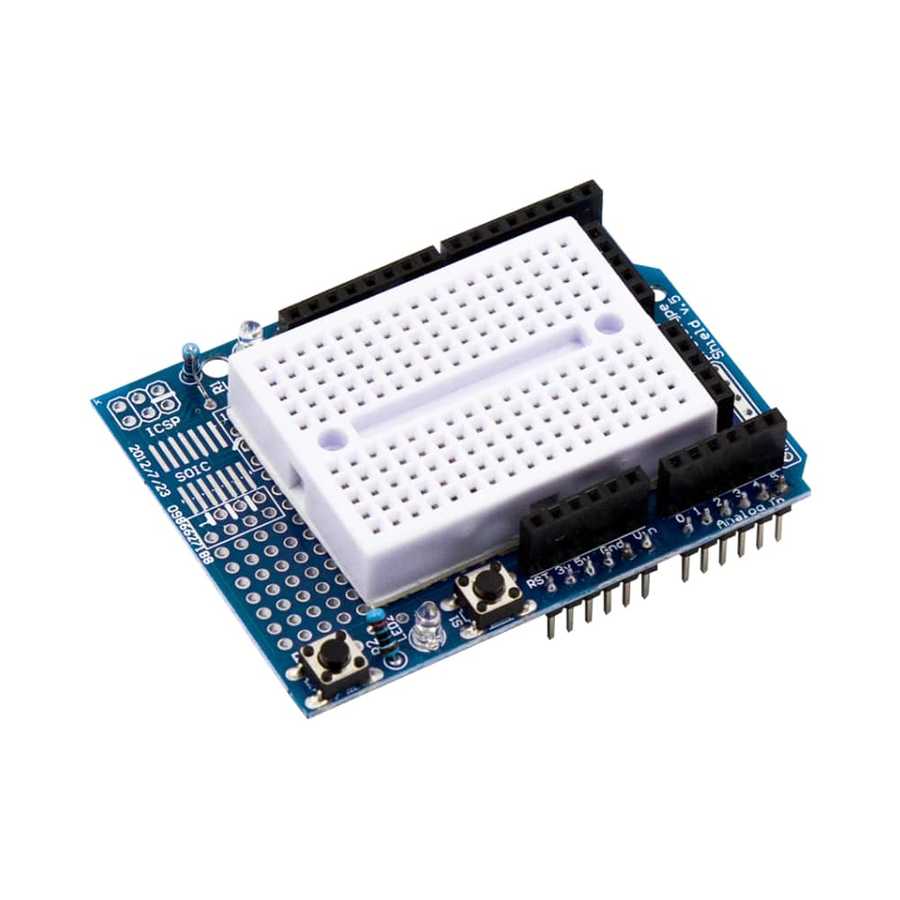

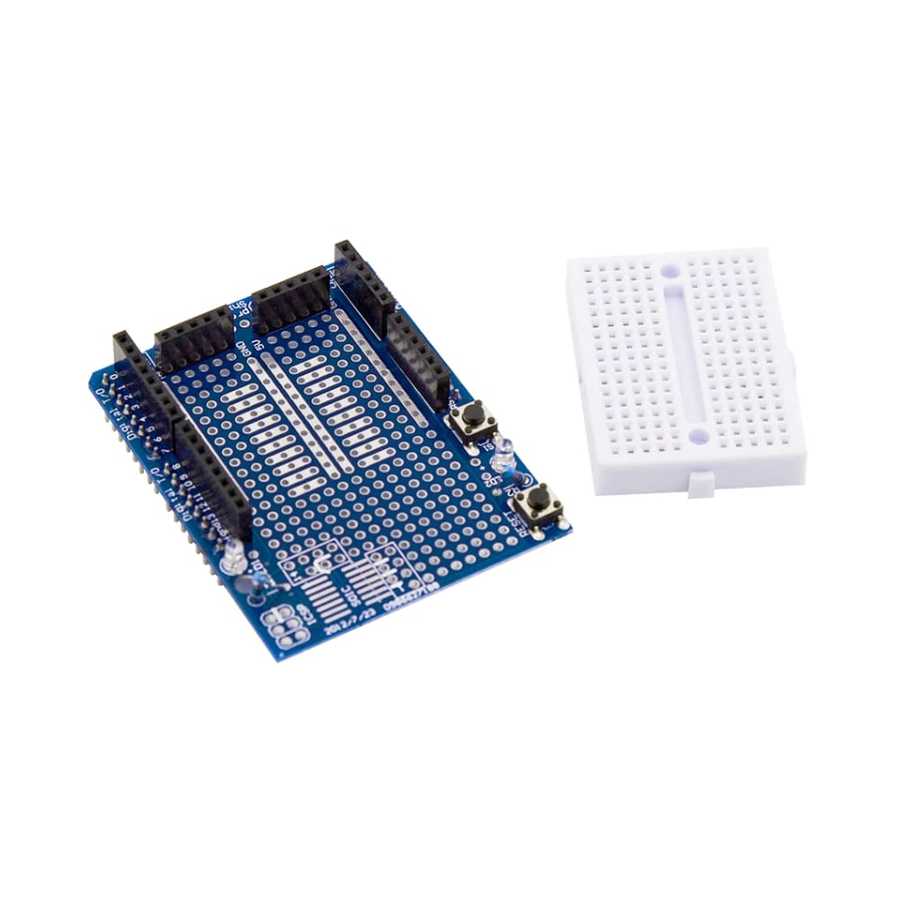

Thanks to the Mini Breadboard included in the kit and placed in the middle section, you can quickly prototype and test without wasting time on soldering.

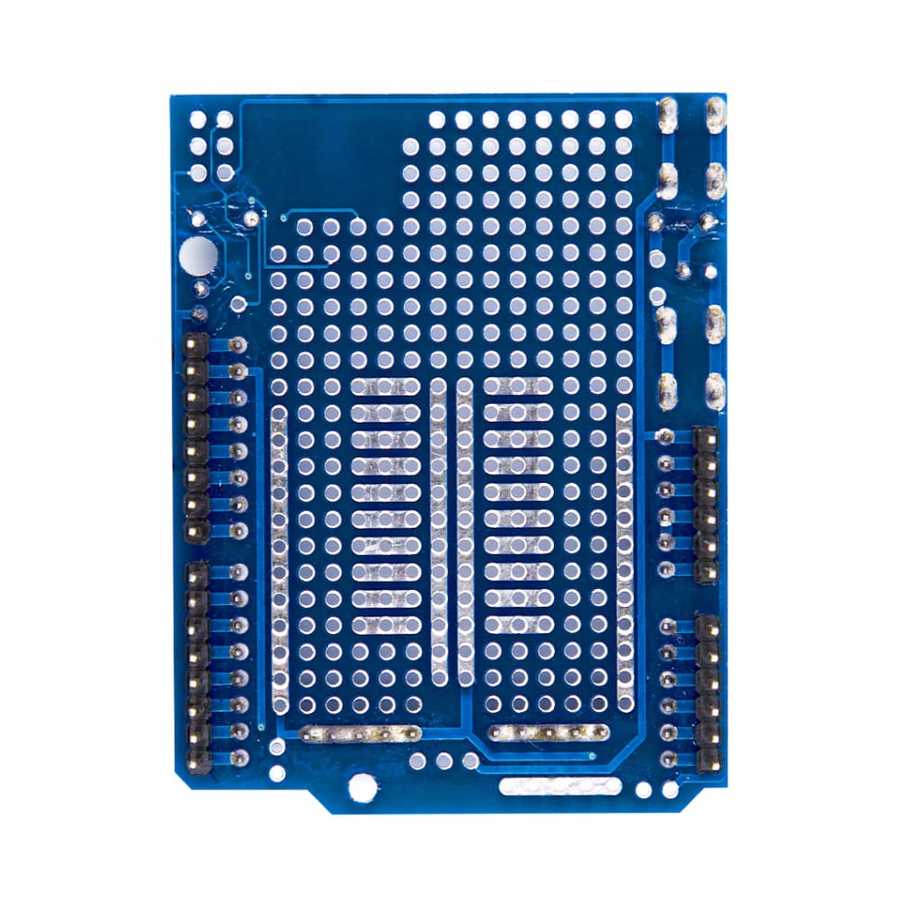

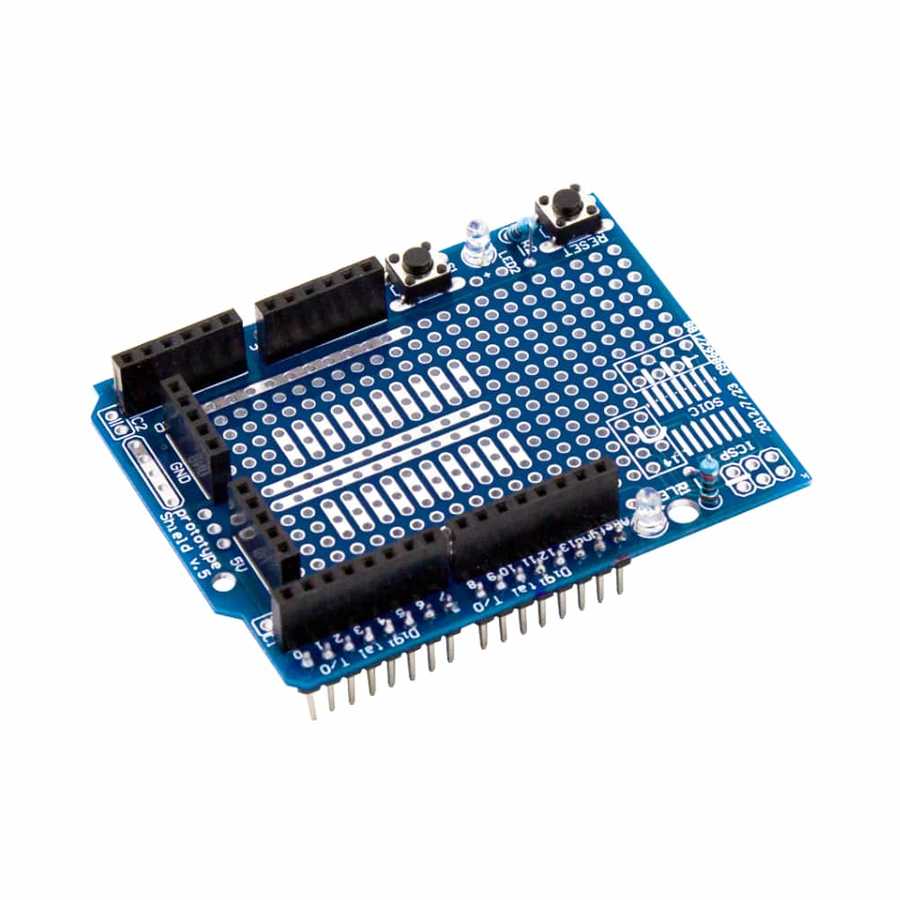

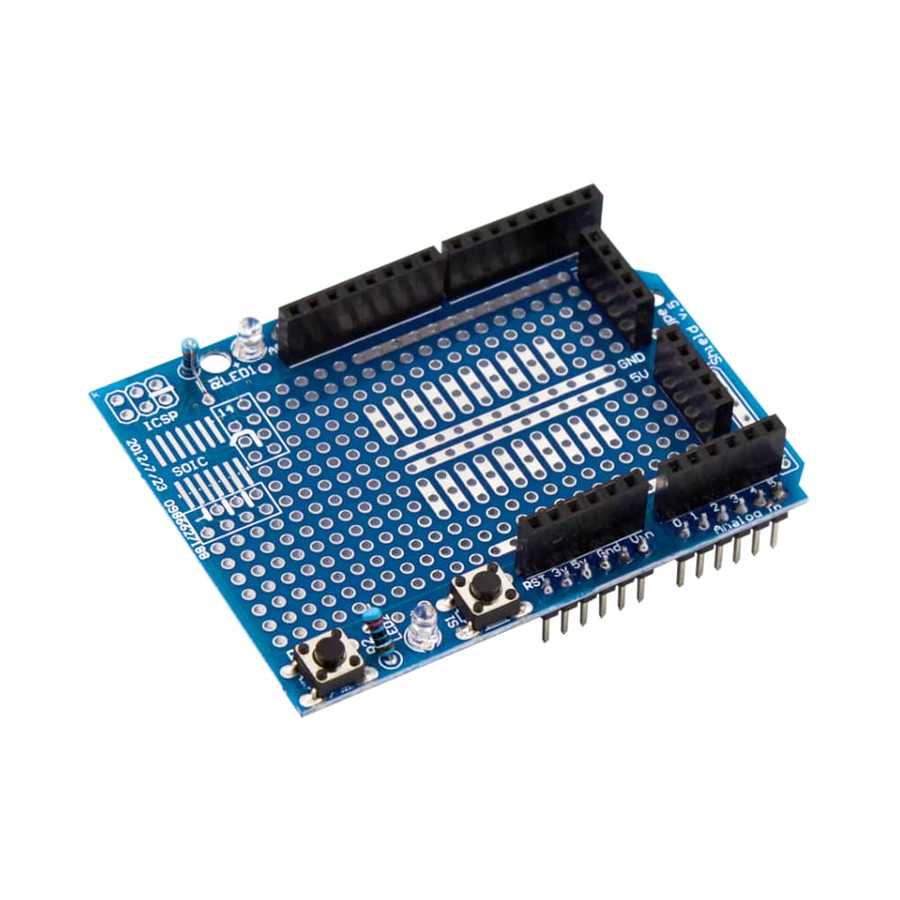

The Proto Shield brings all hardware pins to an upper level, making access to connections easier. In addition, the special surface mount (SMD) pads on the shield allow you to include these types of components in your projects.

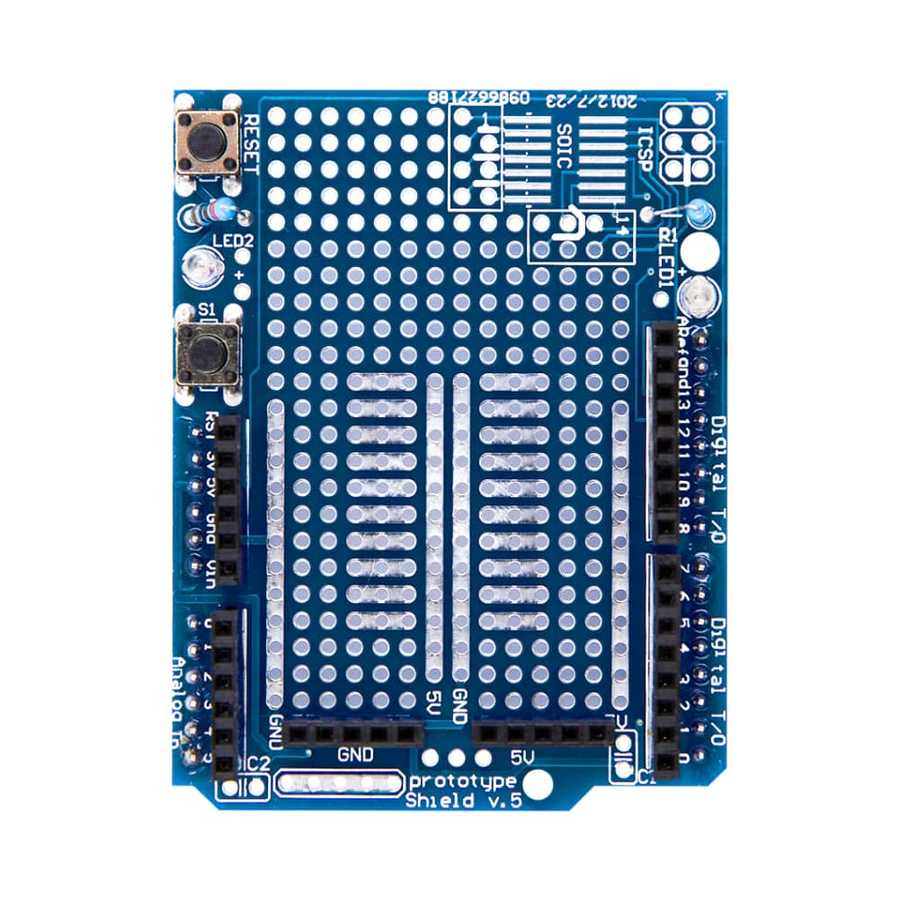

The compatible proto shield has a standard R3 pin layout and features a reset button on the board that provides ease of use.
Note: All headers and connectors on the module are factory soldered and shipped ready to use.

• Soldering area for both SMD and standard components
• 2 built-in LEDs for general use
• 1 programmable push button for general use
• Reset button located on the hardware
• Full compatibility with R3 pin structure

Products That Can Be Used Together:

• UNO R3 Development Board Compatible with Arduino
• Shield Modules Compatible with Arduino
• Mini Breadboard Types

Documents and Useful Links:

• UNO R3 Proto Shield Usage Guide (Video - English)

If you are unfamiliar with the Arduino® ecosystem, you can check out our Lessons for Arduino® series on our blog.
