IRF520 Mosfet Driver Module

Product Code
:
16078
Brand / Origin
:
China
Quantity
:
0
Without Vat
:
3.69 TL
Out of stock Alert when in stock
Same Day Shipping
If you purchase before 3pm, your products will ship at the same day. Except saturday and sunday
Add to Favorites
You can add this product on your list and check it later.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (2)
  • Recommend
  • Images
  • Suggestion Box

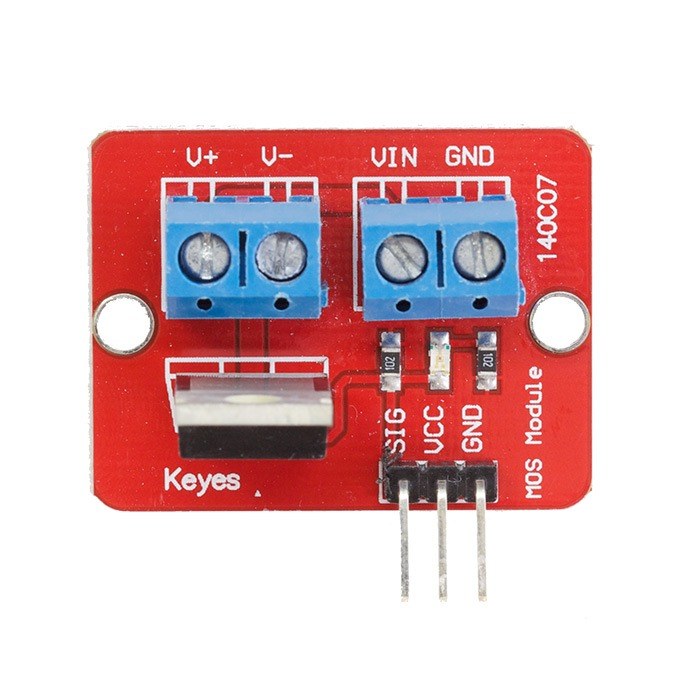

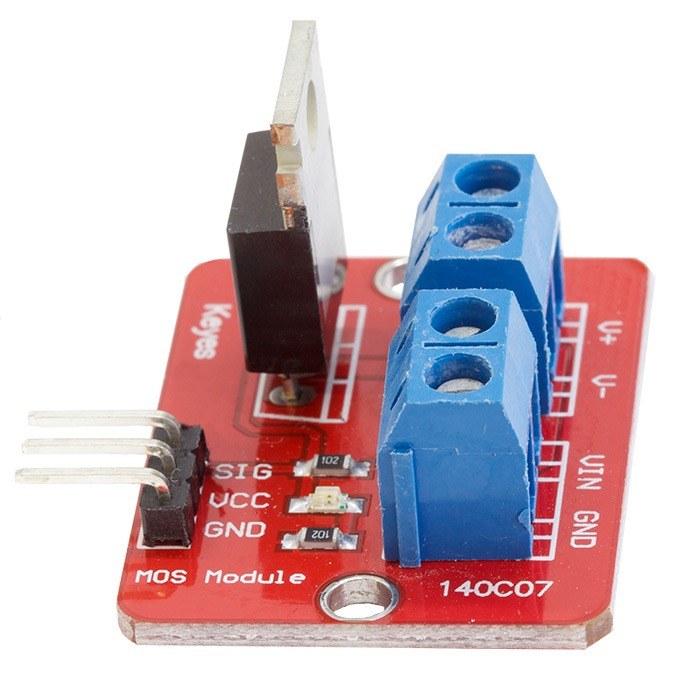

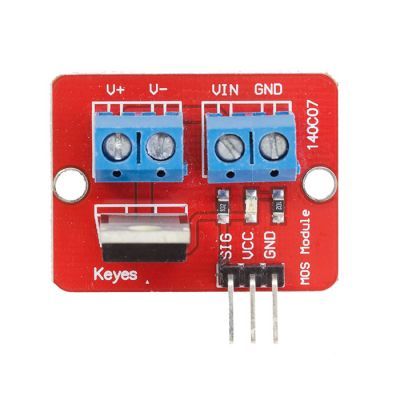

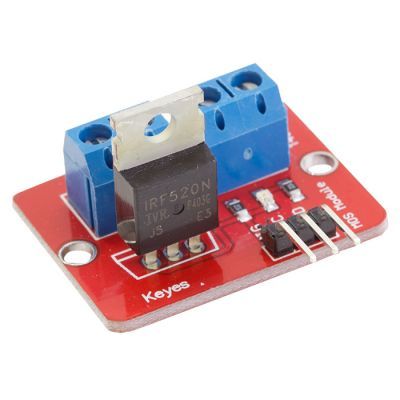

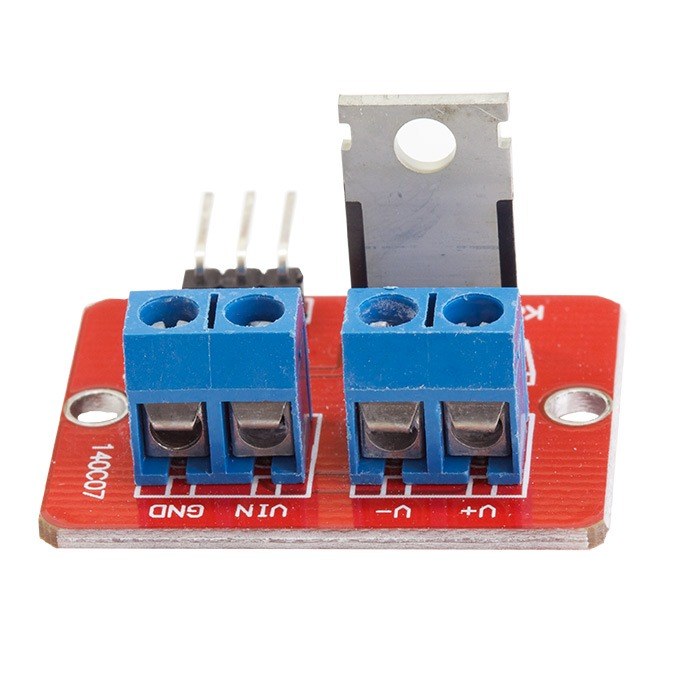

  • Here is a simple breakout board for the IRF520 Mosfet. Easy hookup to your Arduino or other 3-5v micro controller. Pulse current through a PWM pin, and use this to control a pump, LED, or other DC device at up to 24v, and ~5A. (You can check the specs here)

    Real simple to use: The simplest way of explaining how this little board works is this: You connect the power for the device you want to control to the Vin and GND. You connect your device to the V+ and V- screw terminals. When the SIG line is HIGH, a little LED lights up, and the GND is 'connected' to the V-. When the SIG line is LOW, the LED turns off, and the GND becomes 'disconnected' to the V-. The V+ and Vin are continuously connected.

    You can power this device from your Arduino, VCC goes to the 5V connection, and GND to the GND pin on your Arduino.

    Features:

    • Voltage: 3.3V, 5V
    • Output load voltage :0-24V
    • Output load current: <5A (1A and above requires a heat sink)
    • Platform: Arduino, MCU, ARM, Raspberry PI.
    • Using original IRF520 Power MOS, you can adjust the output PWM.
    • Drive up to 24V allows the load, such as LED lights, DC motors, miniature pumps, solenoid valves.
    • PWM dimming LED can be used to achieve step less dimming, variable speed motor control.Note: Above 1 A load, you need to install heat sink.
