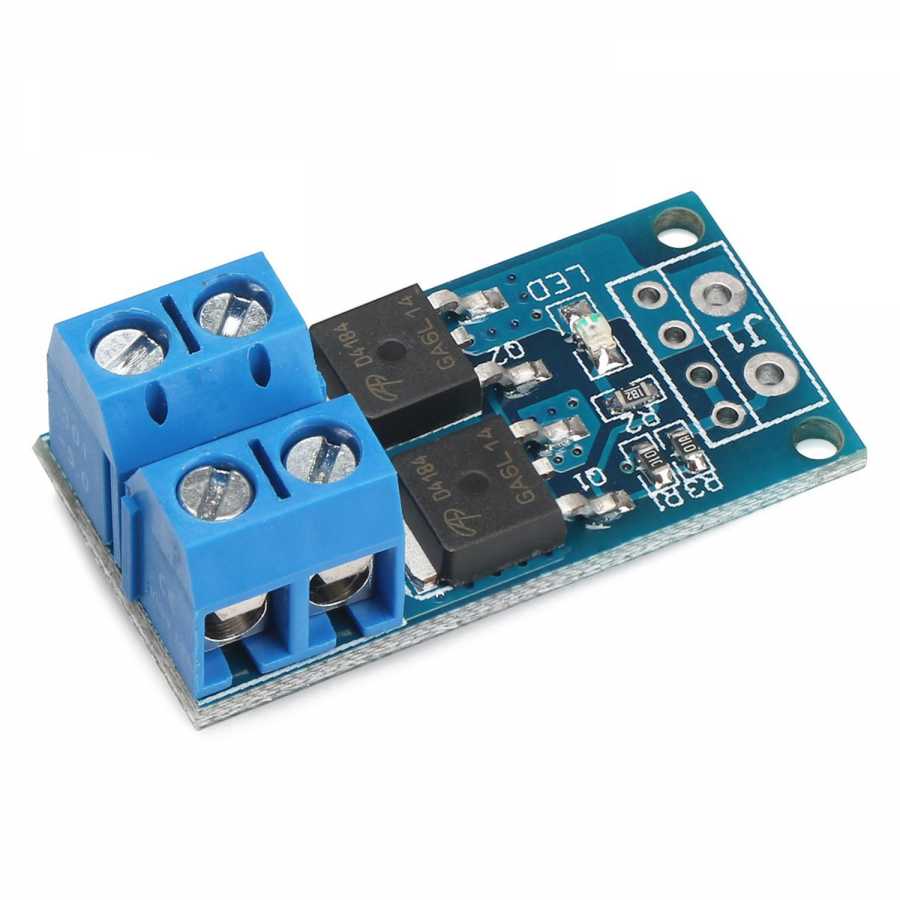

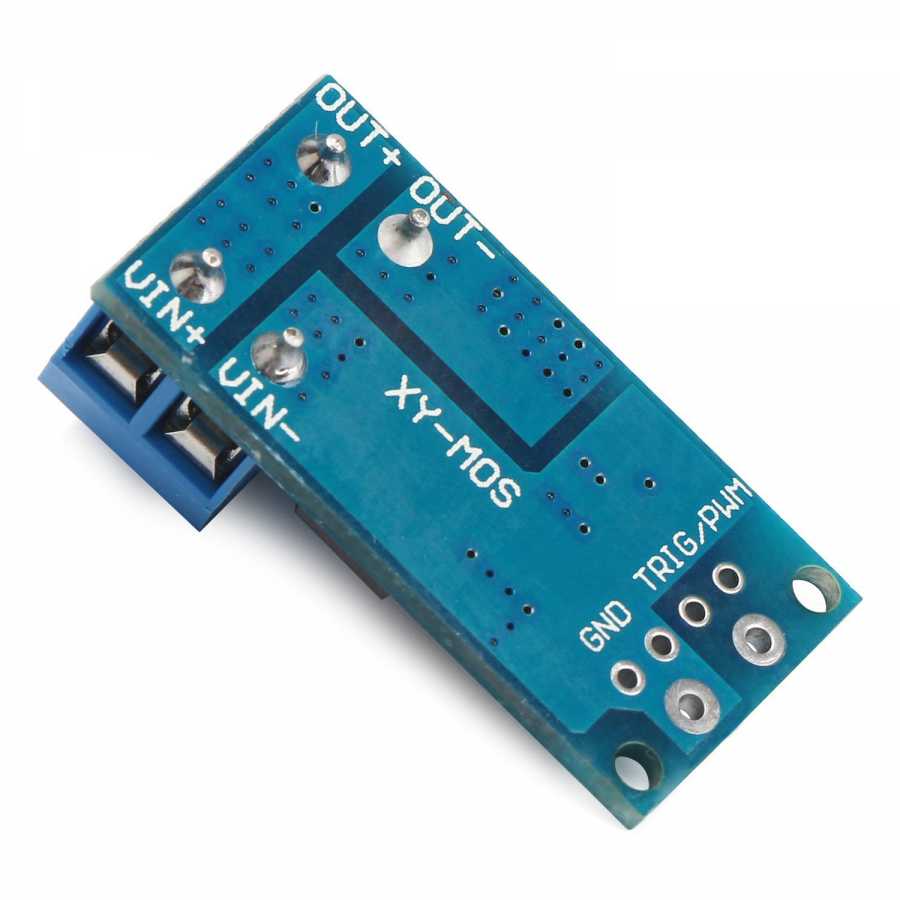

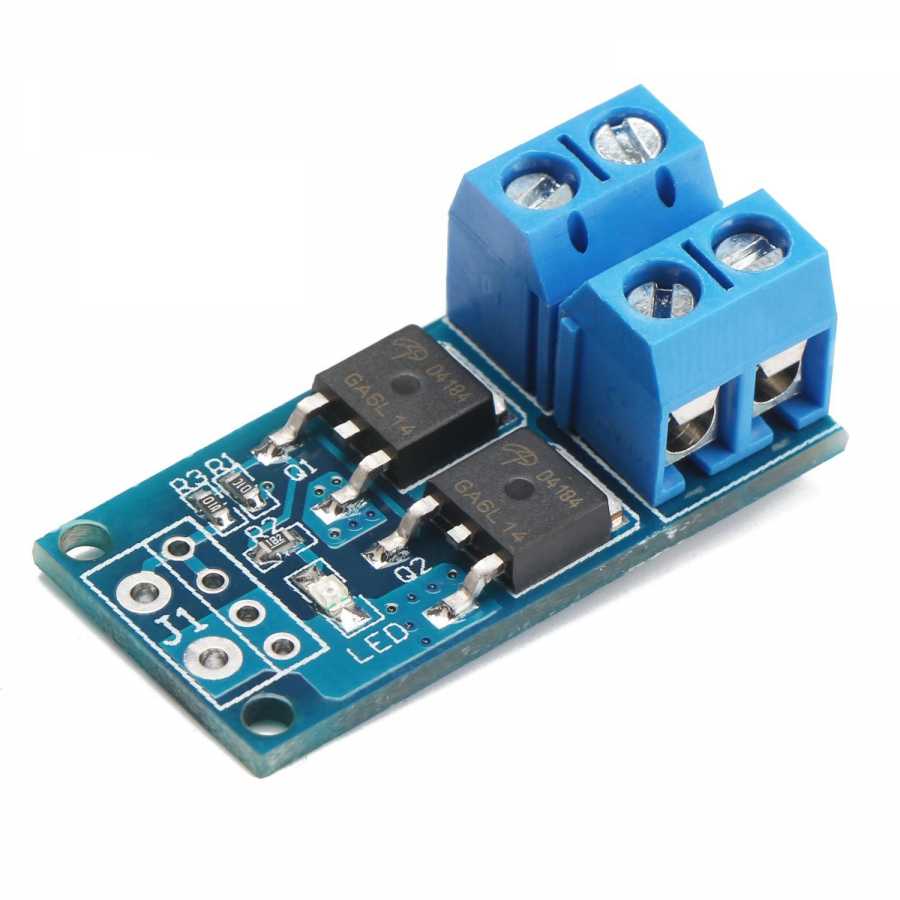

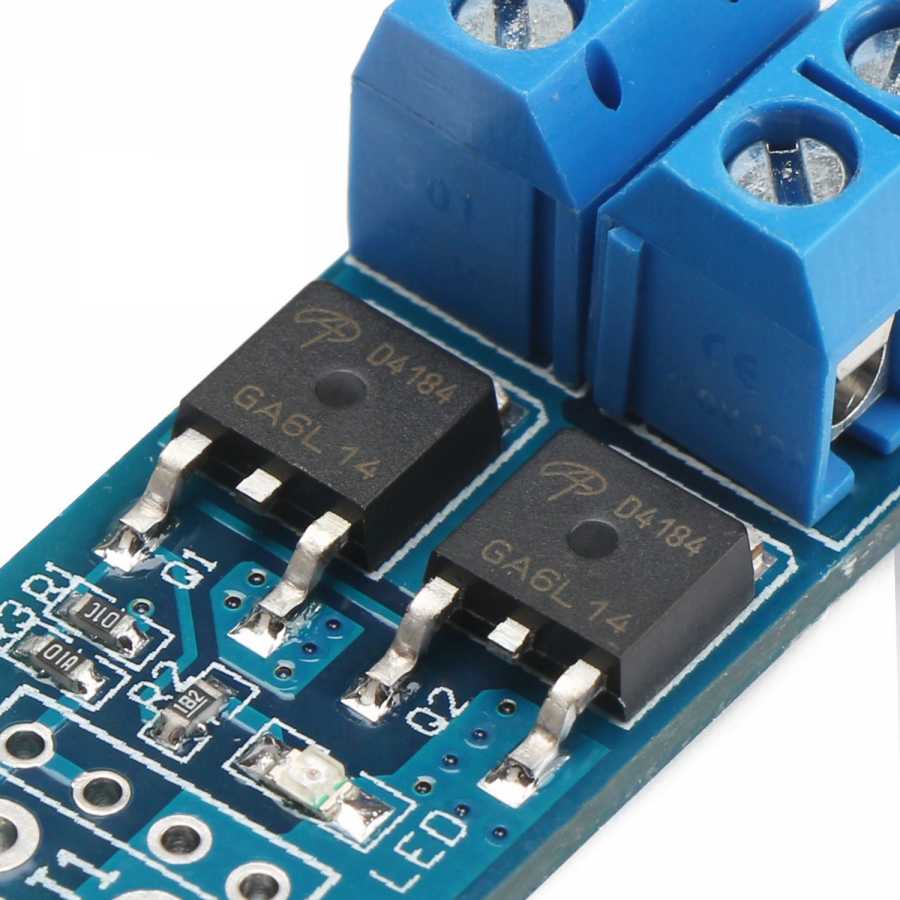

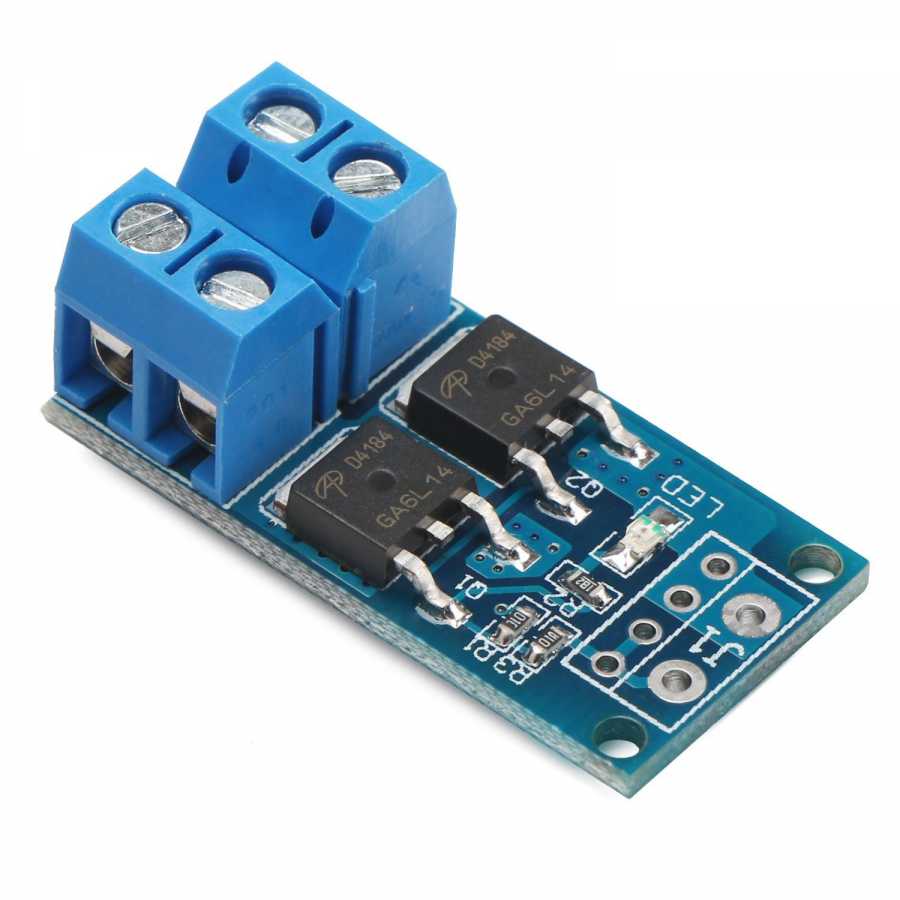

15A 400W PWM Supported MOSFET Swtiching Module

Product Code
Brand / Origin
Without Vat
19.51 TL
Same Day Shipping
Orders placed until 5:00 on weekdays and 10:30 on Saturday are shipped the same day.
Add to Favorites
Click here to add this product to your list and review it later.
Technical Service
We are always with you with our experienced staff and advanced support services.
Refund Guarantee
We carry out the process without upsetting you with a 14-day return guarantee.
Add Comment
  • Features
  • Payment Options
  • Comments (3)
  • Recommend
  • Images
  • Suggestion Box

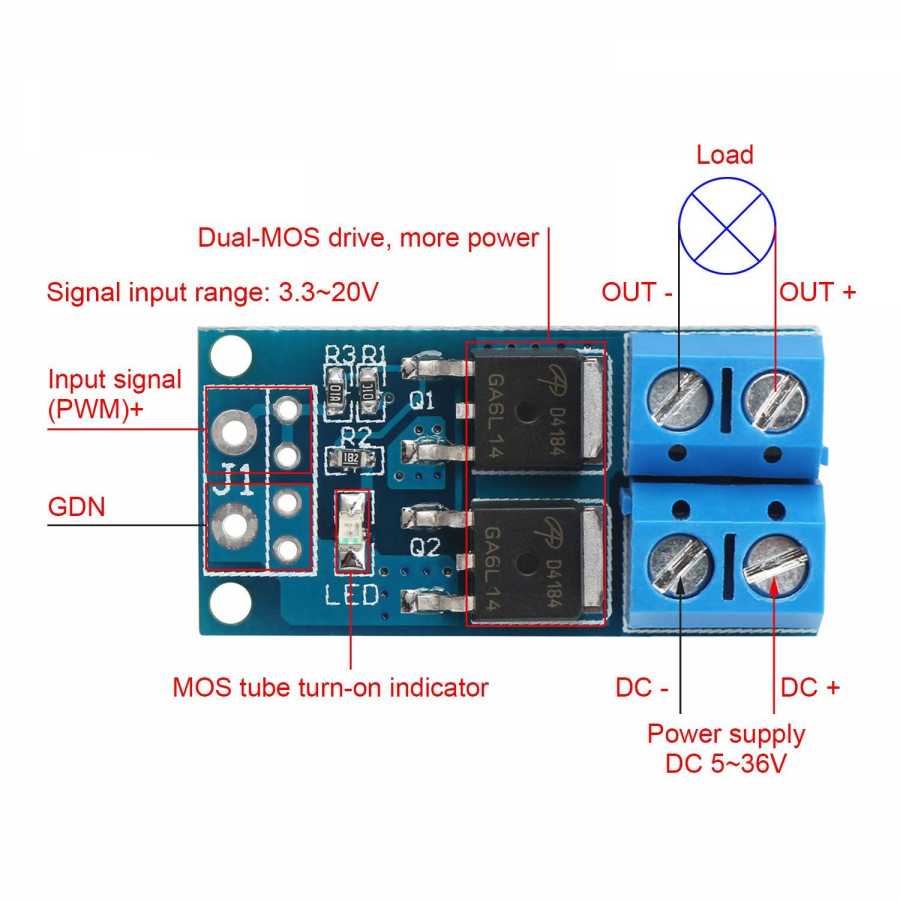

  • You can switch loads up to DC 5-36V/15A with this module. It operates like a relay board. Supports PWM input for proportional control (i.e DC motor speed control).

    Technical specifications:

    • Operating voltage: DC 5-36V
    • Trigger source: Digital high-low (DC3.3V-20V) (can be connected IO port of microcontroller,
      PLC interfaces, DC power, etc. The module can access PWM signal, which can perfectly supported the frequency of 0-20KHZ)
    • Output current: 15A continuous, 30A burst
    • Output power: 400W max.
    • Operating temperature: -40~85°C

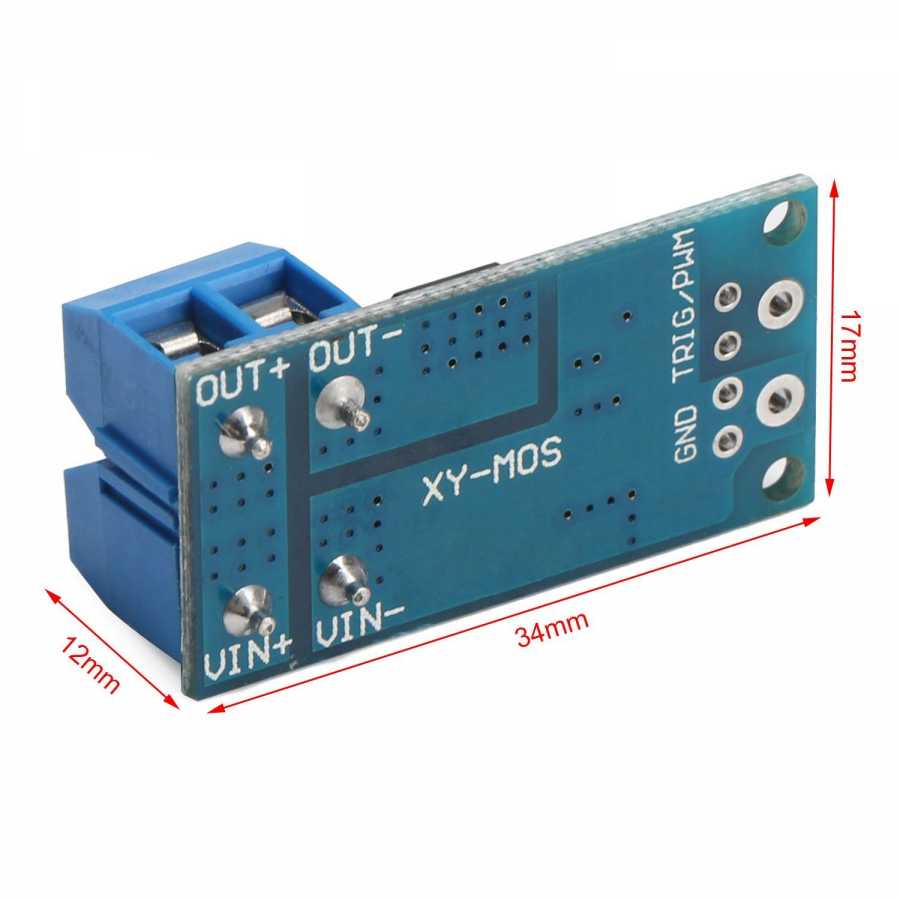

    • Dimensions: 34 × 17 × 12mm
