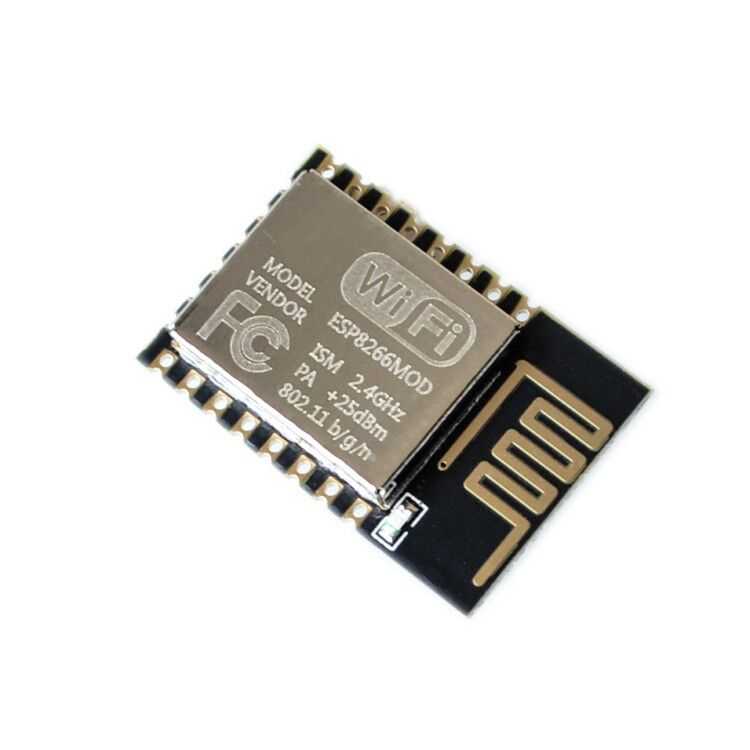

ESP-12E is the updated SMD version of the popular ESP8266 WiFi module. It is perfect for your IoT applications and projects.

Specifications:
  • 802.11 b/g/n wireless network support
  • 32-bit low power CPU
  • 10-bit DAC (digital-to-analog converter)
  • Support for TCP/IP stack
  • 4MB SPI flash (program memory)
  • Integrated PLL, regulator and power management
  • Supports antenna diversity
  • WPA/WPA2 supported WiFi (2.4 GHz)
  • STA/AP/STA+AP WiFi modes
  • SmartLink support for Android and iOS devices
  • SDIO 2.0, (H)SPI, UART, I2C, I2S, IRDA, PWM and GPIO comminucations
  • Current consumption: Deep sleep <10µA, power-off 5<µA
  • Data transmission delay after wake-up <2ms
  • Power consumption on stand-by mode: <1.0mW (DTIM3)
  • +20dBm RF output power on 802.11b mode
  • Operating temperature: -40ºC ~ 125ºC

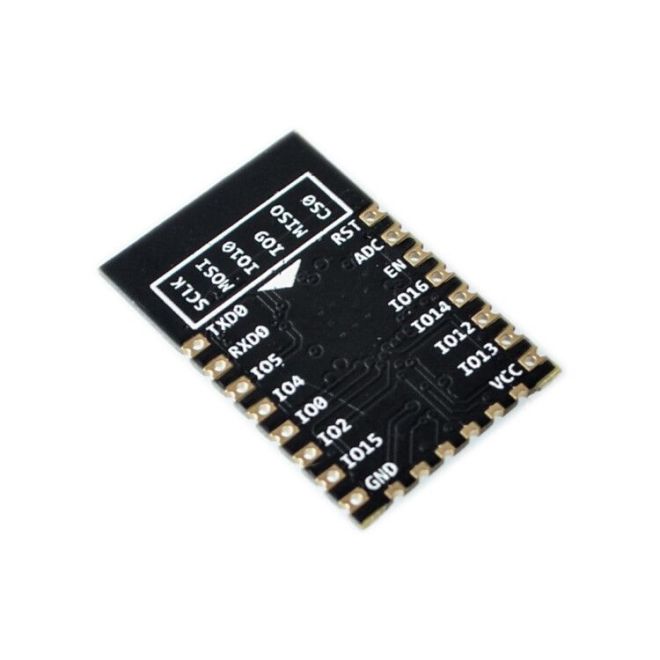

ESP-12E Pinout


Datasheet
17881
ESP-12E ESP8266 Wifi Module
ESP-12E ESP8266 Wifi Module
:
70.33 TL + VAT
:
84.40 TL
