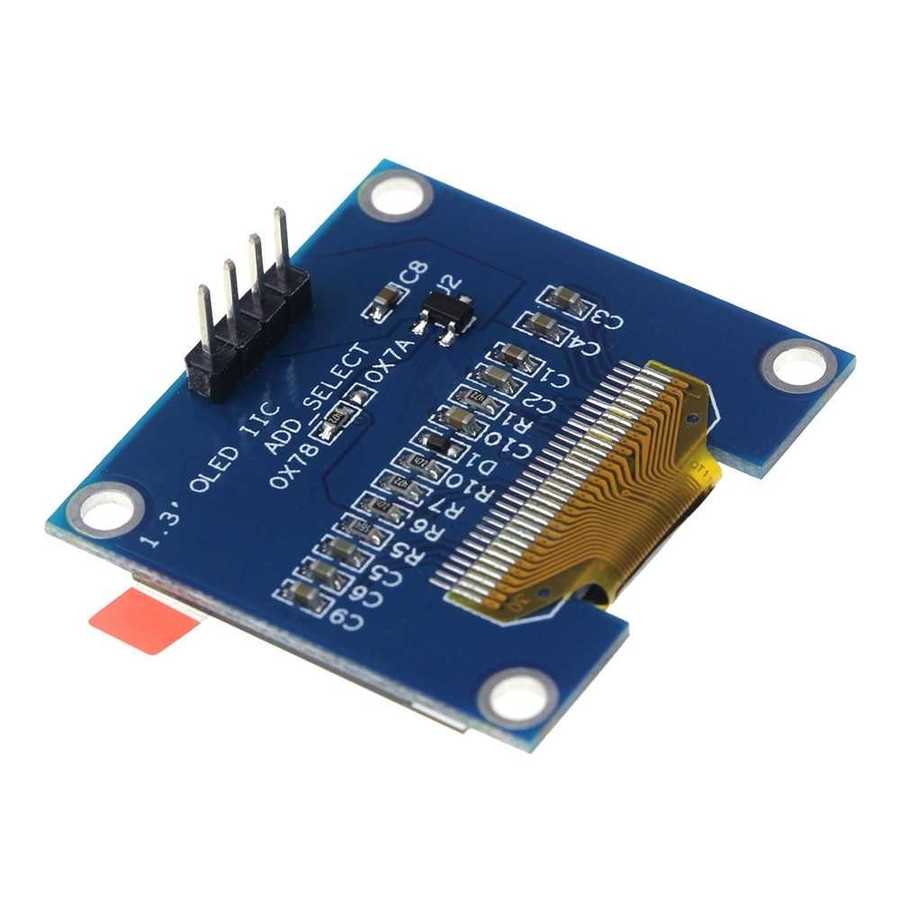

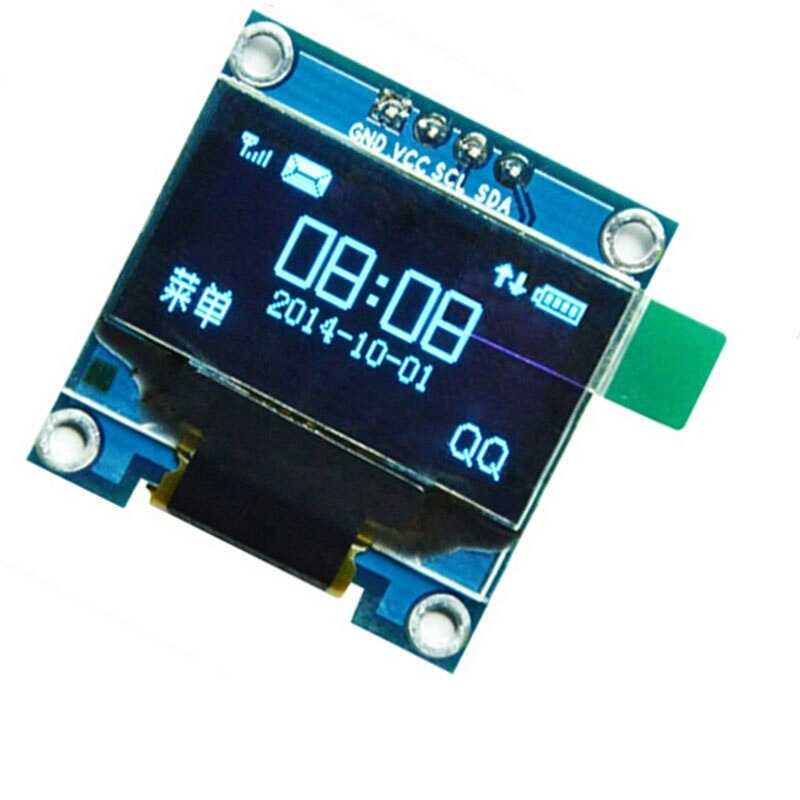

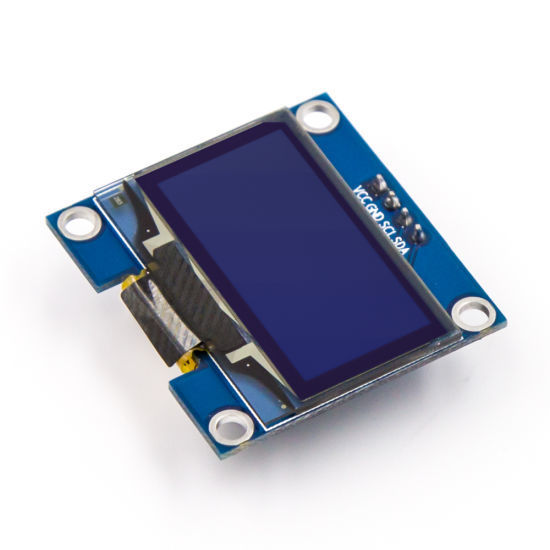

1.3 inch I2C OLED Ekran - SSD1106

OLED (Organic Light Emitting Diode) is a self-emitting technology that consists of a thin, multi-layered organic film sandwiched between an anode and cathode. Unlike LCD technology, OLED does not require a backlight and therefore has much lower power usage. OLED has high application potential for almost any type of display and is considered the cutting-edge technology for next-generation flat panel displays.

1.3 inch I2C OLED Screen - SSD 1106 Technical Specification:

Does not need backlight, high brightness
Light and thin 1.3 inch screen
Has wide viewing angles
Low operating voltage and power consumption (3.3V – 5V)
Quick response and easy use
Wide operating temperature range (-40c to 85c degrees)18505
Pin order of the product; "GND-VCC-SCL-SDA"
Interface: I2C
Resolution: 128 x 64
blue color
Driver IC: SSH1106 (Arduino Library: U8g2 library - Raspberry Pi Library: WiringPi)
GND: Power Ground
VCC: Power + (DC 3.3 ~ 5v)
SCL: Clock Line
SDA: Data Line
1 x 1.3" I2C OLED Display



Similar Products:





Documentation:




Features
Ekran Çeşidi
OLED
18505
1.3
1.3" Inch Blue I2C IIC OLED LCD Module 4pin (with VCC GND) SSH1106 Chip
:
171.85 TL + VAT
:
206.22 TL
