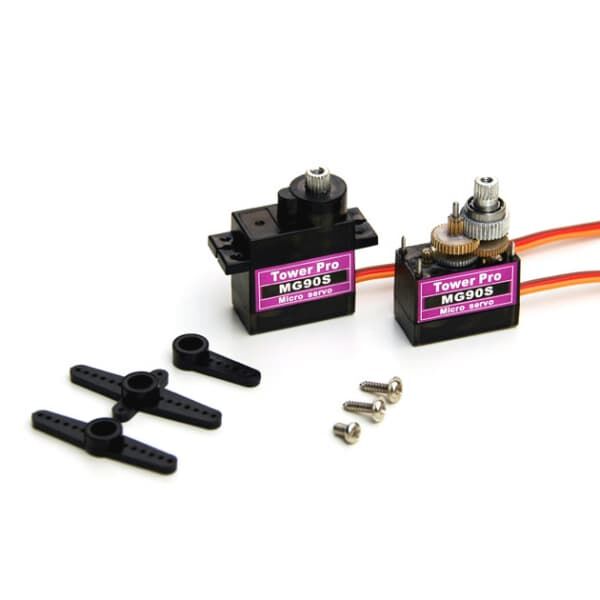

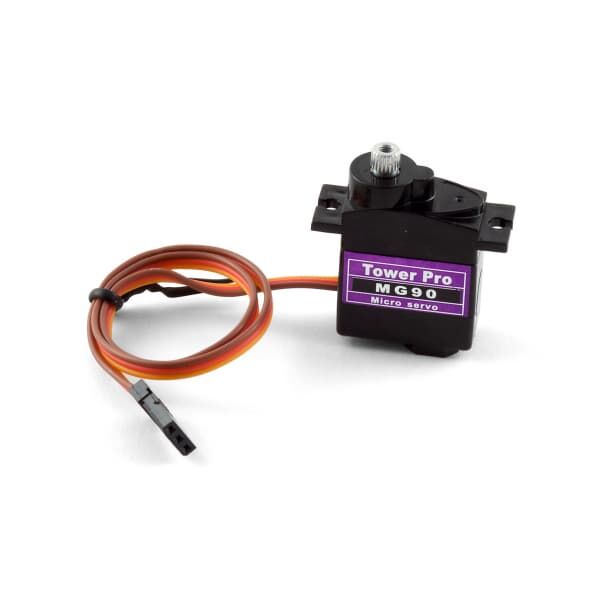

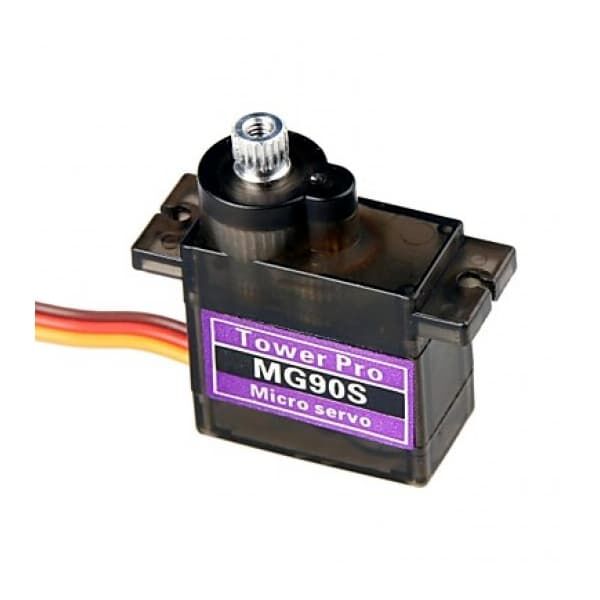

MG90S Micro Servo Motor - Continuously Rotating

MG90S Micro Servo Motor - Continuously Rotating

Servo is defined as a drive system that performs angular-linear position, speed and acceleration control in mechanisms without error. In other words, it is a motion control mechanism. Servo motors are the most used motor type in robot technologies, but they are also used in RC (Radio Control) applications. RC Servo Motors were first used in remote control model vehicles. Servos are designed to take the desired position and not change their position unless a new command comes. Servo motors can be used for many different purposes. There are models in different sizes and different torque powers. You can click here to find the most suitable servo motor type for your project.

MG90S Micro Servo Motor Technical Specifications:

• Model: Tower Pro MG90S
• Operating Voltage: 4.8V (~6V)
• Working Speed: 0.1s/60 degrees
• Stall torque: 1.8 kgf cm
• Temperature range: 0ºC – 55ºC
• Gear Type: Metal Gear
• Weight: 11.5gr

Note: Only the final-stage gear is made of metal; intermediate gears are plastic.
