PT2272 4 Channel RF Receiver Module - Compatible with 4KM and 1KM Transmitters

Product Code
Brand / Origin
Without Vat
52.49 TL



Same Day Shipping
Orders placed until 5:00 on weekdays and 10:30 on Saturday are shipped the same day.
Add to Favorites
Click here to add this product to your list and review it later.
Technical Service
We are always with you with our experienced staff and advanced support services.
Refund Guarantee
We carry out the process without upsetting you with a 14-day return guarantee.
Add Comment
  • Features
  • Payment Options
  • Comments (18)
  • Recommend
  • Images
  • Suggestion Box

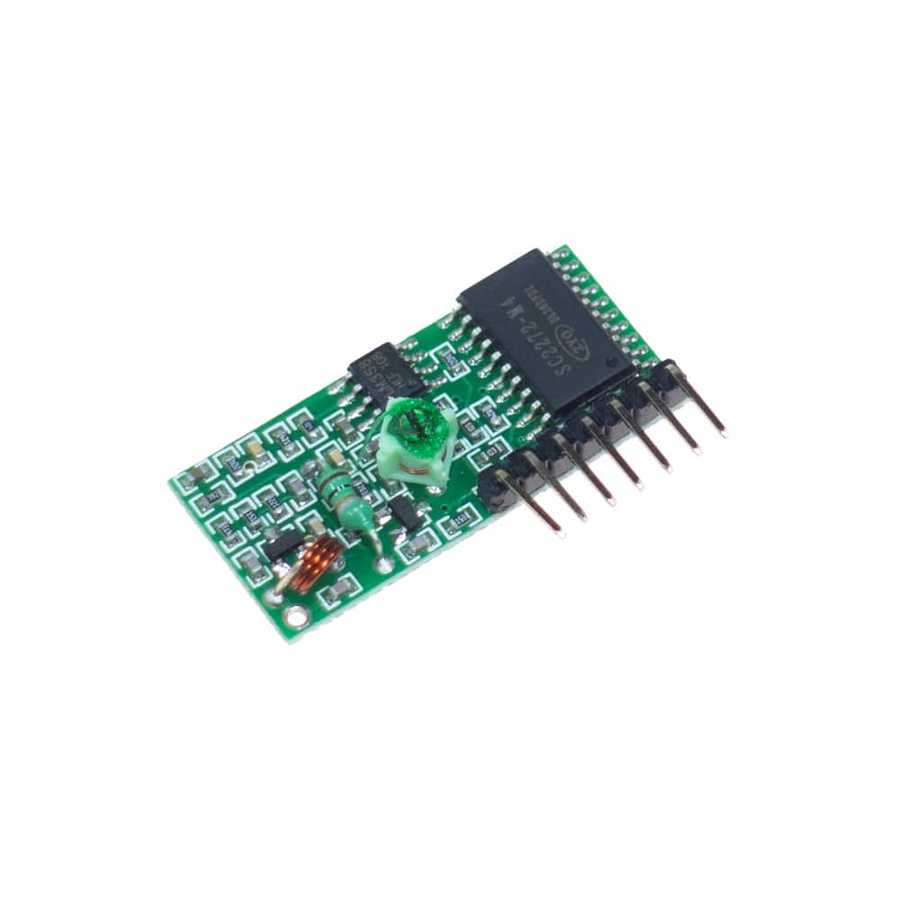

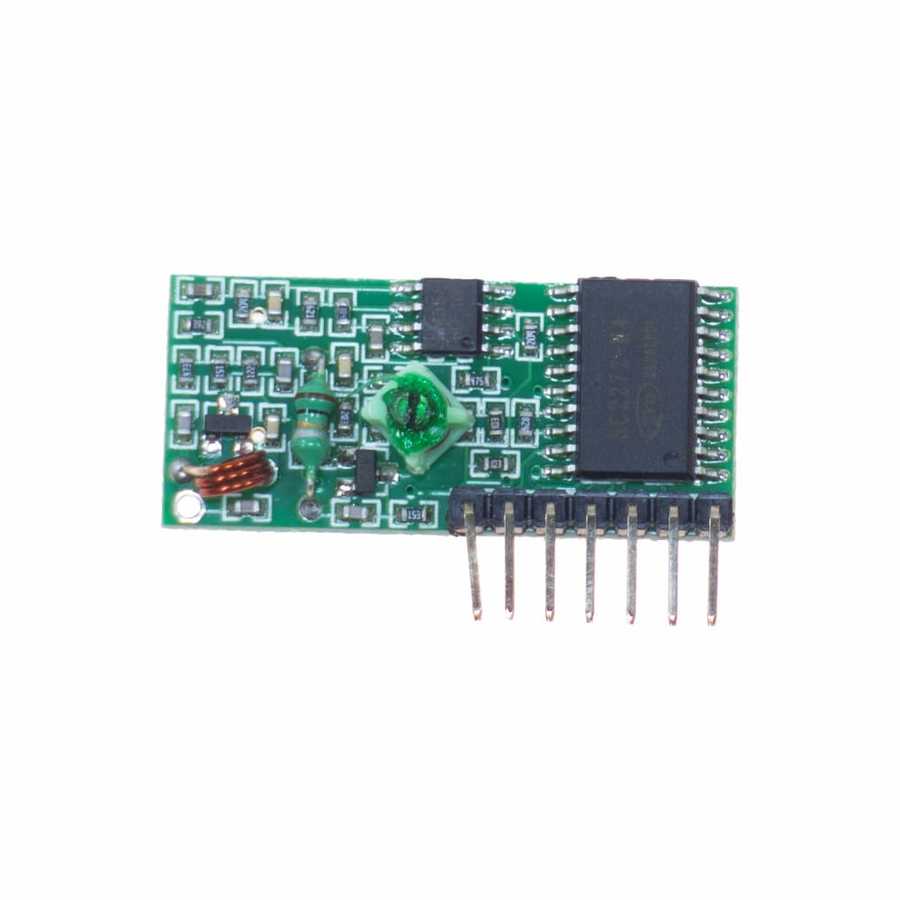

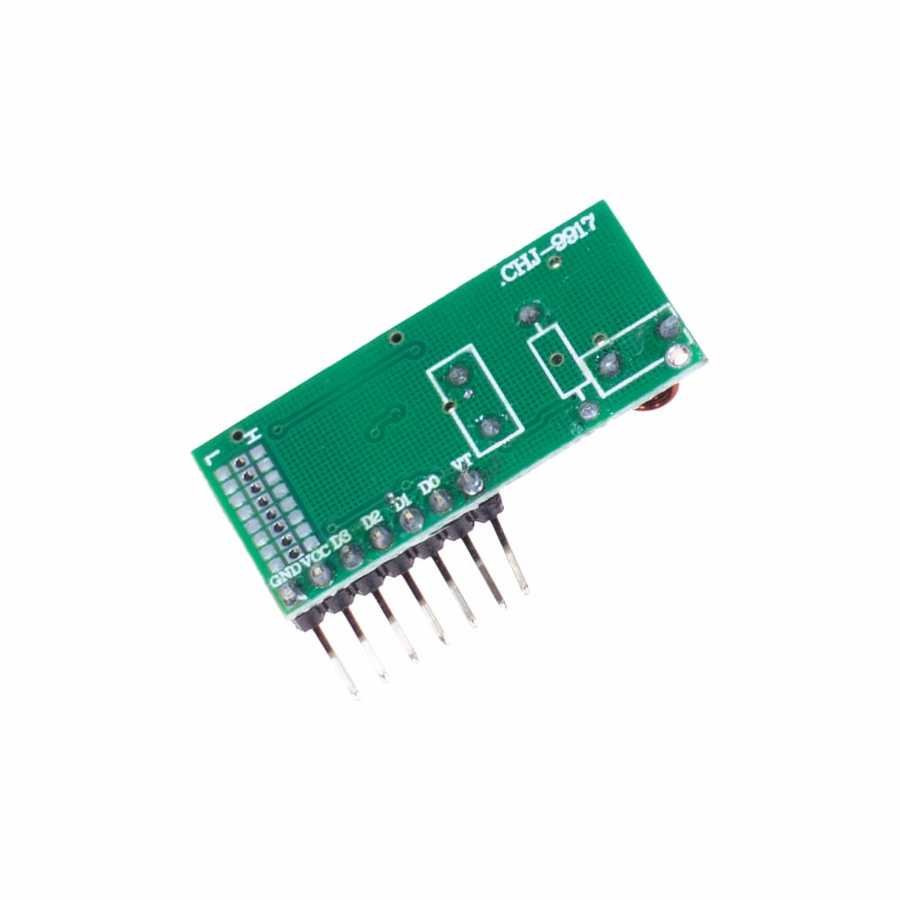

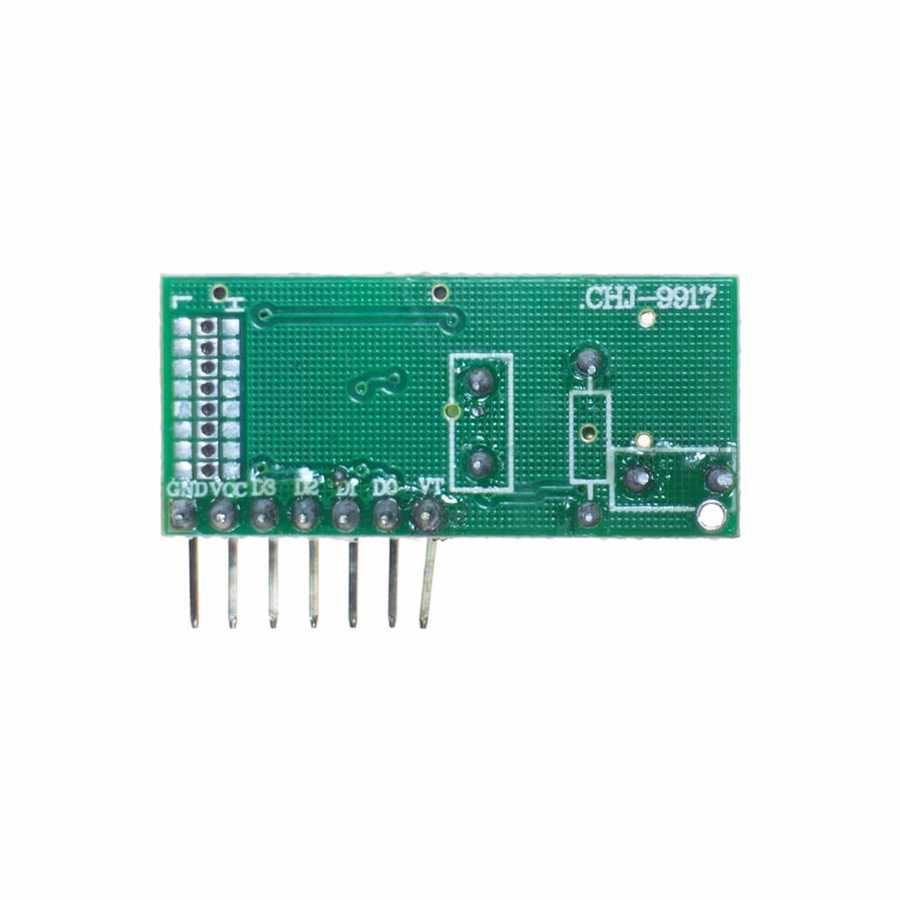

  • The PT2272-M4 (Rx) receiver module is designed to be used in conjunction with the PT2262 (Tx) transmtter modules (1km and 4km models). When used together they are a set of wireless modules operating at 433MHz and utilise the the Princeton Technology Corp PT2262 & PT2272 remote control encoder and decoder IC's. They provide an easy way of remotely controlling up to 4 channels without the need of a microcontroller. This makes them ideal for applications such as security systems, garage door controllers, home automation, and remote control.

    Receiver Board Parameters:

    • Working Frequency: 433MHz
    • Working Voltage: DC 5V
    • Working Current: ≤3mA (5.0V DC)
    • Modulation Mode: ASK
    • Sensitivity: -105dBm (50Ω)
    • Data Output: high level signal TTL
    • Output type: Momentary
