Mini Adjustable 3A Step-Down Voltage Regulator

Product Code
:
11747
Brand / Origin
:
China
Quantity
:
100+
Without Vat
:
4.85 TL
Quantity:

-

+

Same Day Shipping
If you purchase before 3pm, your products will ship at the same day. Except saturday and sunday
Add to Favorites
You can add this product on your list and check it later.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (1)
  • Recommend
  • Images
  • Suggestion Box

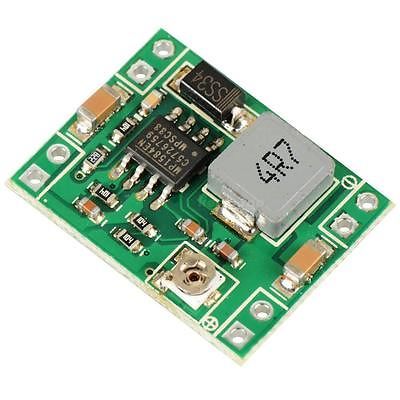

  • This DC-DC step-down voltage regulator board has a step-down switching regulator on it. The regulator can pass through current up to 3A on itself. It's input voltage range is 4.5-28V and you can get an output voltage adjustable between 0.8-20V via the mini potentiometer on the board. You can use this voltage regulator board in hobby and robotic projects.
    When using this board, the input voltage always must be higher than output voltage. IN+ is positive voltage input, IN- is GND input, OUT+ is positive voltage output, OUT- is GND output.
    Features:
    • Input Voltage: 4.5-28V
    • Output Voltage: 0.8-20V
    • Output Current: 3A

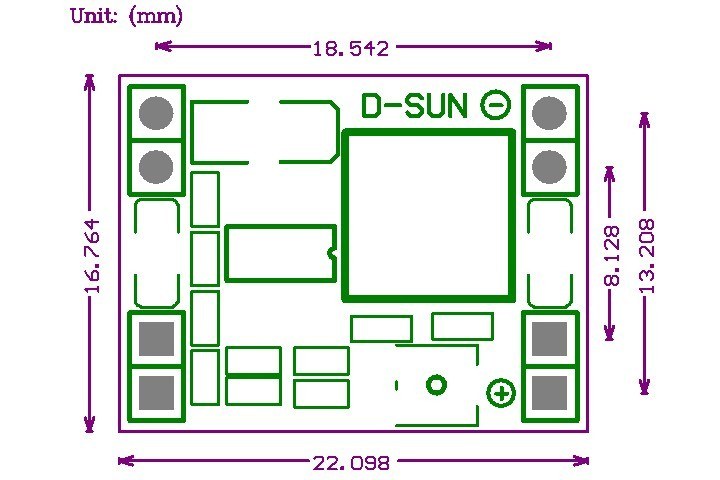

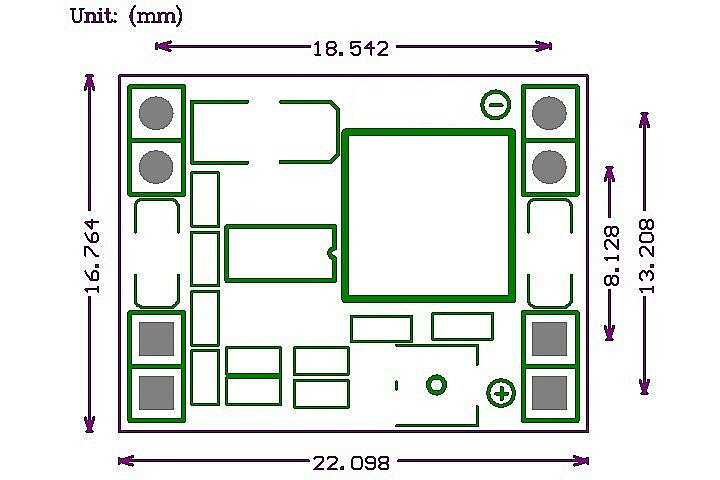

    • PCB Size: 23x17x4mm
