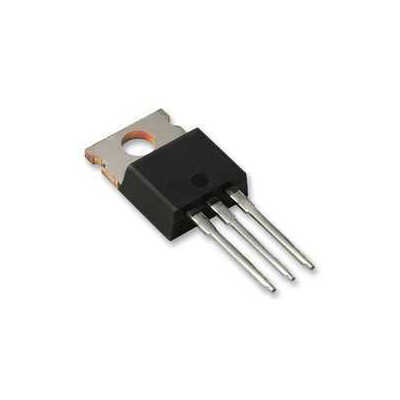

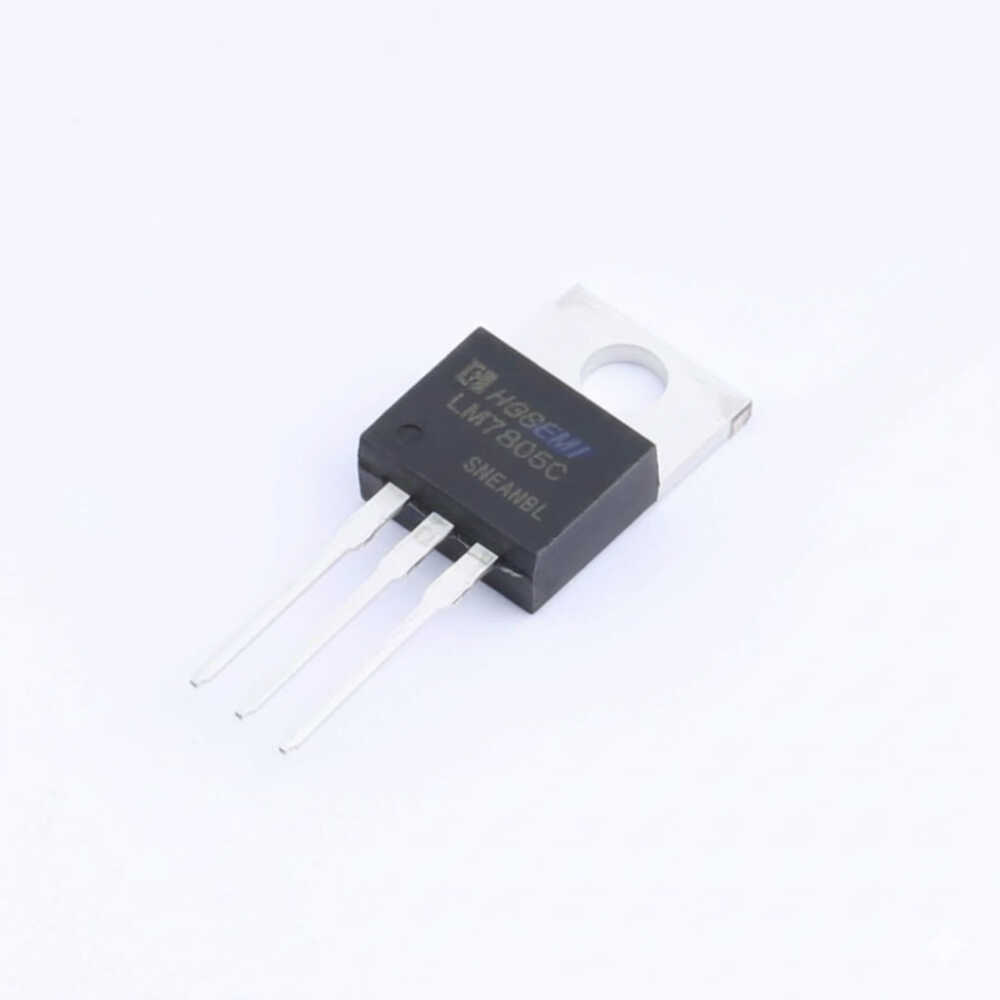

LM 7805 - TO220 IC

LM7805CT - 5V 1A Linear Voltage Regulator - TO-220

The LM7805CT is a popular positive linear voltage regulator that provides a stable 5V output. With a wide input voltage range and built-in overcurrent and thermal protection, it ensures reliable and safe voltage regulation. It is commonly used in systems operating at 5V, such as microcontrollers, sensors, and digital circuits. The TO-220 package allows for efficient heat dissipation, making it suitable for high-current applications.

LM7805CT - 5V 1A Linear Voltage Regulator Technical Specifications:

• Output Voltage: 5V (fixed)

• Maximum Output Current: 1A

• Input Voltage Range: 7V - 20V

• Voltage Regulation: 4% (max)

• Built-in Thermal and Short Circuit Protection

• Typical Operating Temperature Range: 0°C ~ +125°C

• Package Type: TO-220

Useful Documents:

• LM7805CT Datasheet
