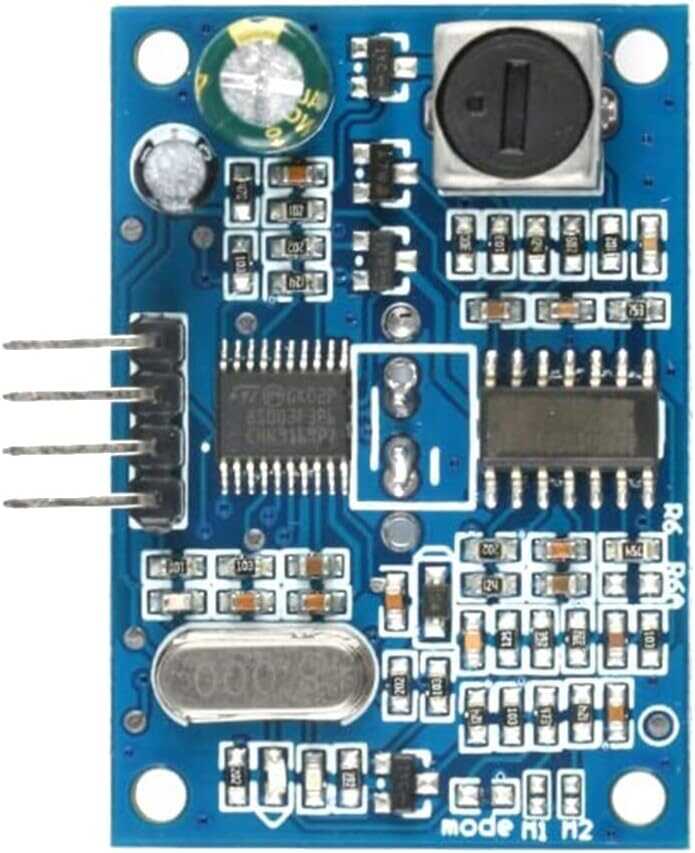

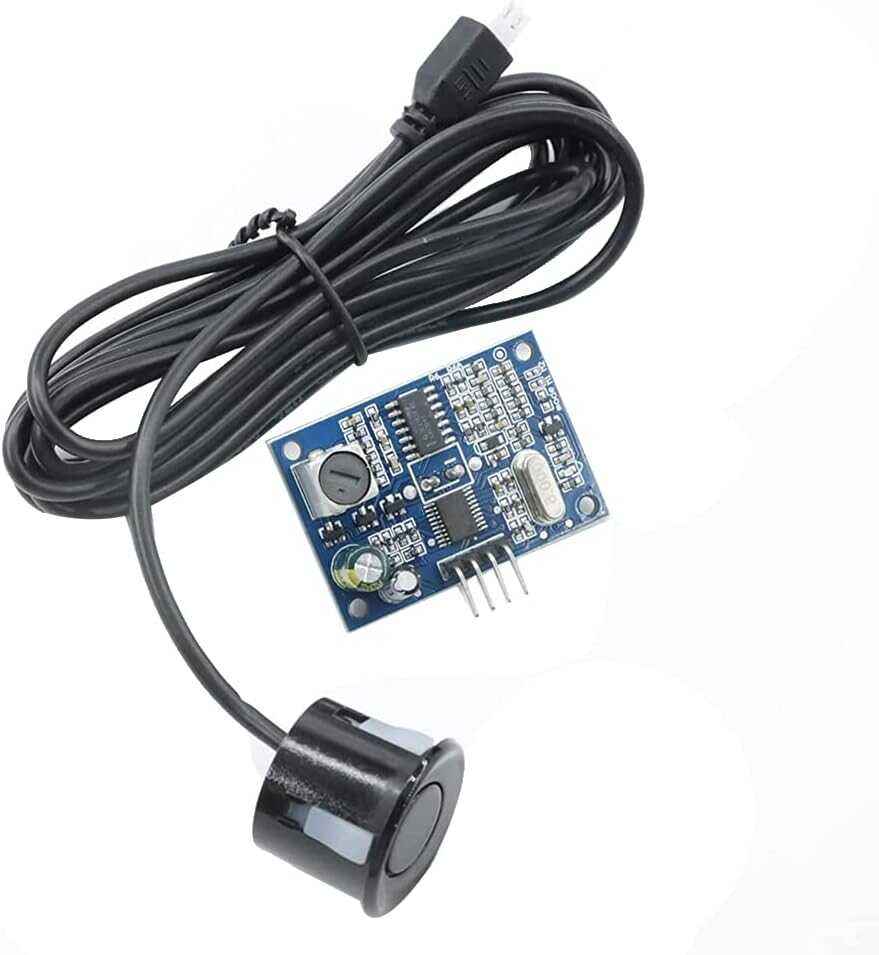

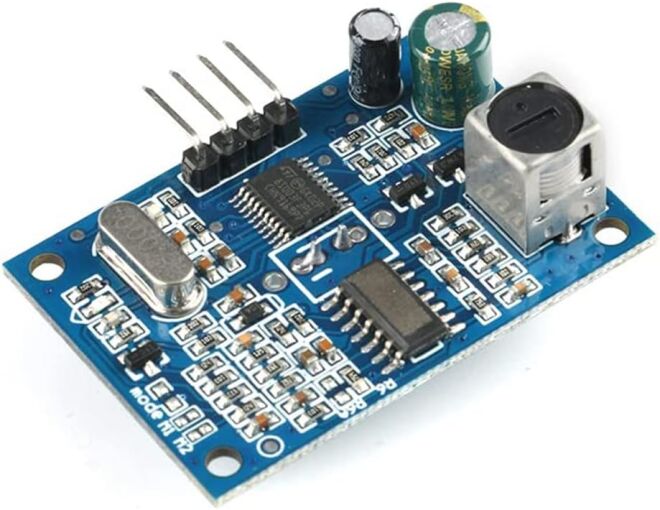

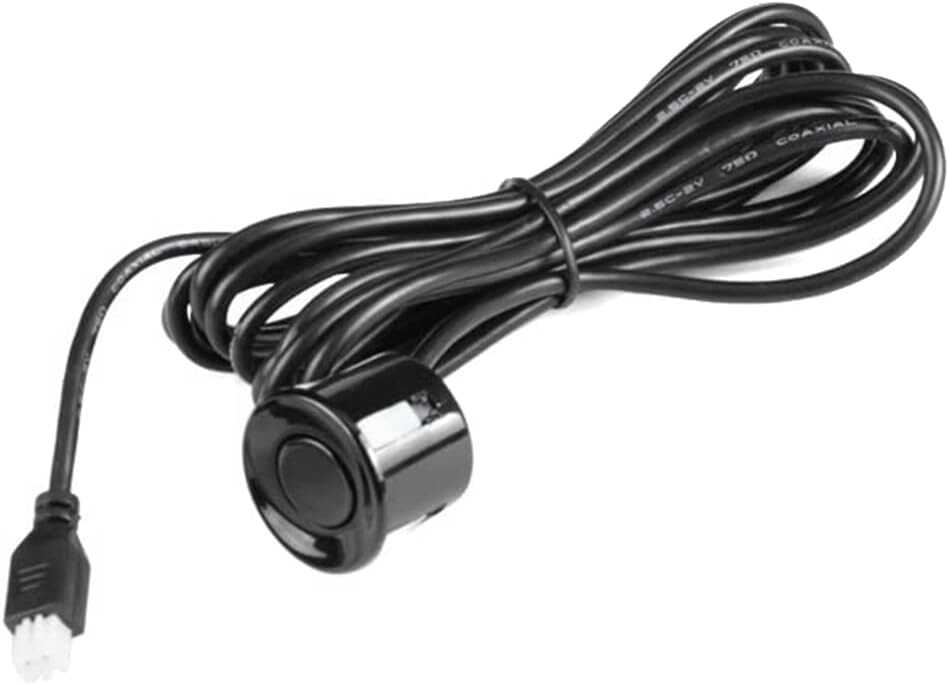

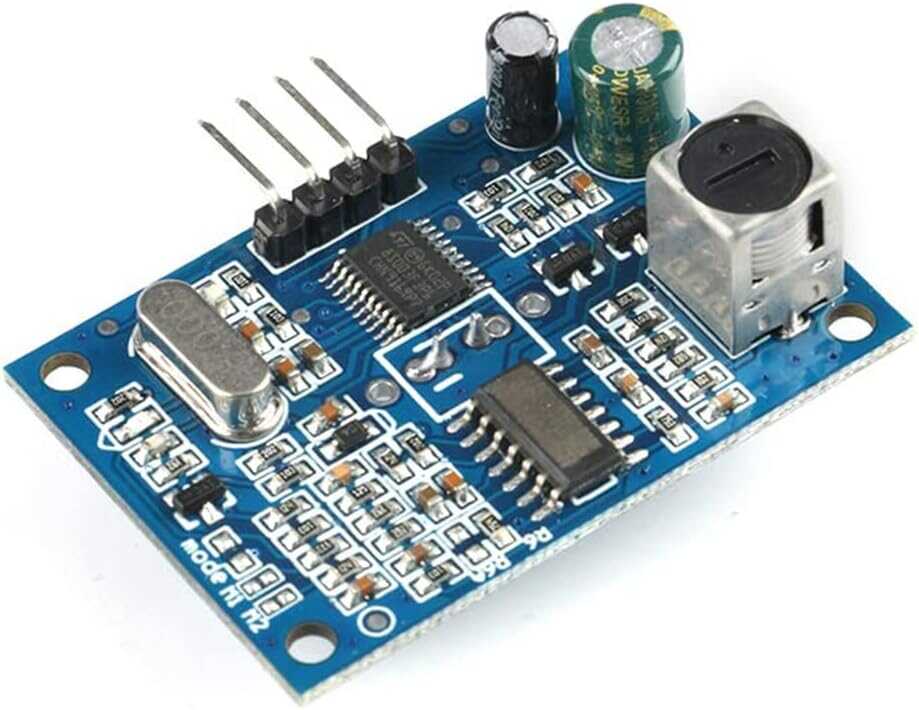

JSN-SR04T Waterproof Ultrasonic Sensor

This is a waterproof version of HC-SR04 ultrasonic Distance Sensor. It's usage and connections are exactly same as HC-SR04.

Features:

• Operating Voltage: 5V DC
• Static Operating Current: 5mA
• Operating Current: 30mA
• Acoustic Emission Frequency: 40kHz
• Maximum range: 4.5m
• Minimum range: 25cm

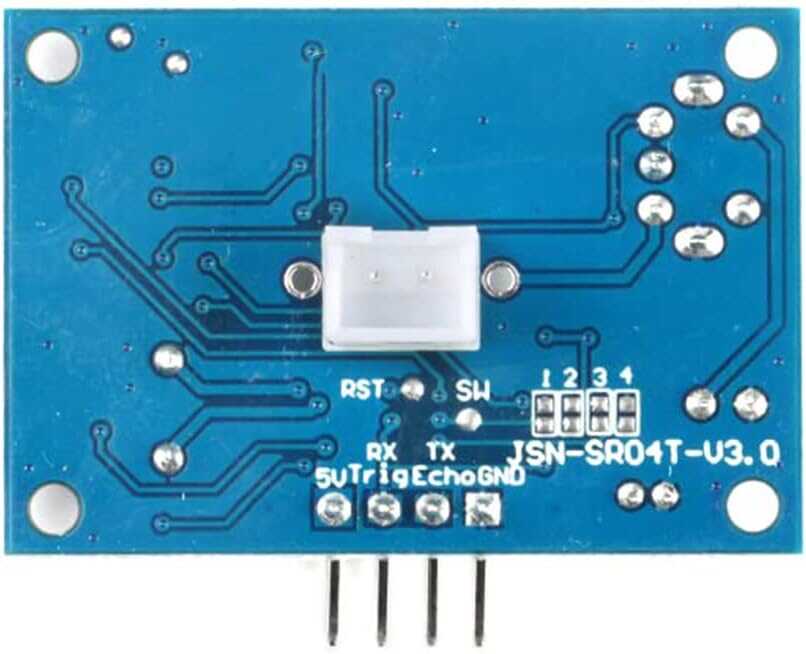

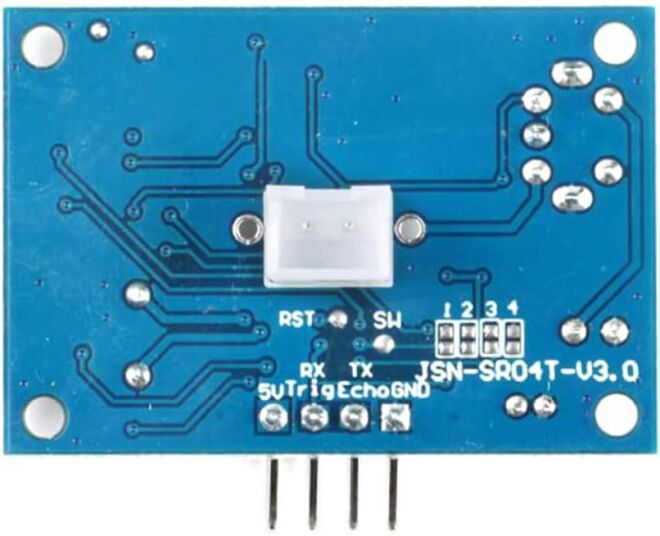

• Connection pins: +5V, Trig, Echo, GND
• Module Dimensions: 41mm * 28.5mm
• Sensitivity: ~0.5cm
• Sight Angle: <50°
• Operating Temperature: -10 ~ 70 ℃
• Storage Temperature: -20 ~ 80 ℃

Documents:

• JSN-SR04T example use with Arduino
