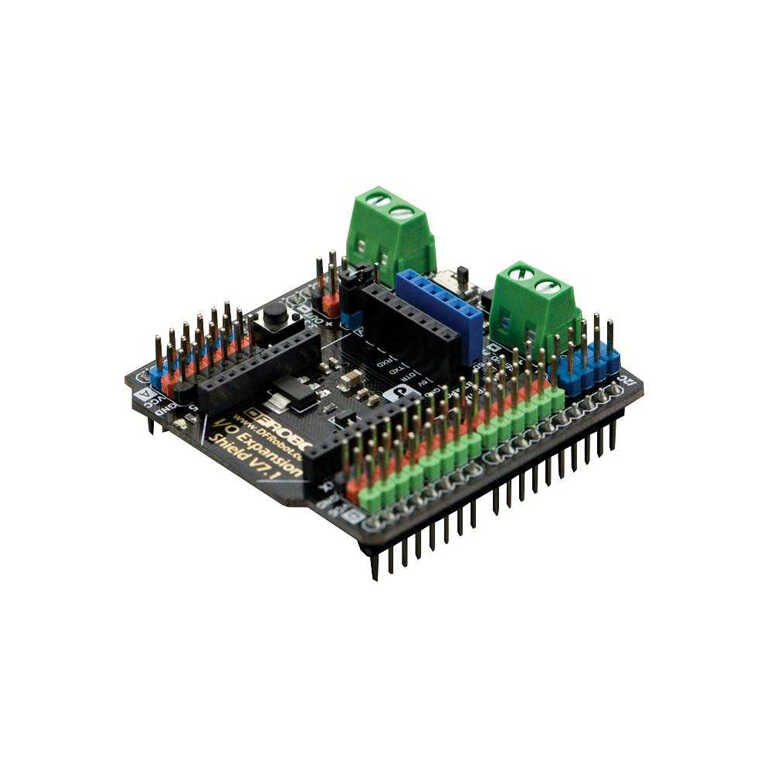

Gravity IO Expansion Shield for Arduino V7.1

Product Code
:
18437
Brand / Origin
:
DFROBOT
Quantity
:
10+
Without Vat
:
69.08 TL
Quantity:

-

+

Same Day Shipping
If you purchase before 3.30 pm, your products will ship at the same day. Except saturday and sunday
Add to Favorites
You can add this product on your list and check it later.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (2)
  • Recommend
  • Images
  • Suggestion Box
  • INTRODUCTION:

    IO Expansion shield is one of the market favourites. Fast robotics prototyping made affordable and simple thanks to this design. Soldering and wiring often becomes a problem when a bridged connection happens and components break. Increasing time and cost for projects. Often, without this solution and a soldering station, wire cripping tools or soldering station, robot prototyping or electronics DIY becomes a very long term project.
    Gravity IO Expansion Shield for Arduino Selection Guide

    The DFRobot Expansion shield introduced to the market the famous color code for sensors and actuators input and output. The 3 pin format for Signal, Voltage and Ground is extremely useful, specially if used altogether with our increasingly large range of modules, sensors and devices that just fit .

    Alternatively, the board includes power input for salvaged power supplies or laboratory power supplies. Very common Xbee socketfor multipurpose wireless connectivity such as RF, wireless, bluetooth.

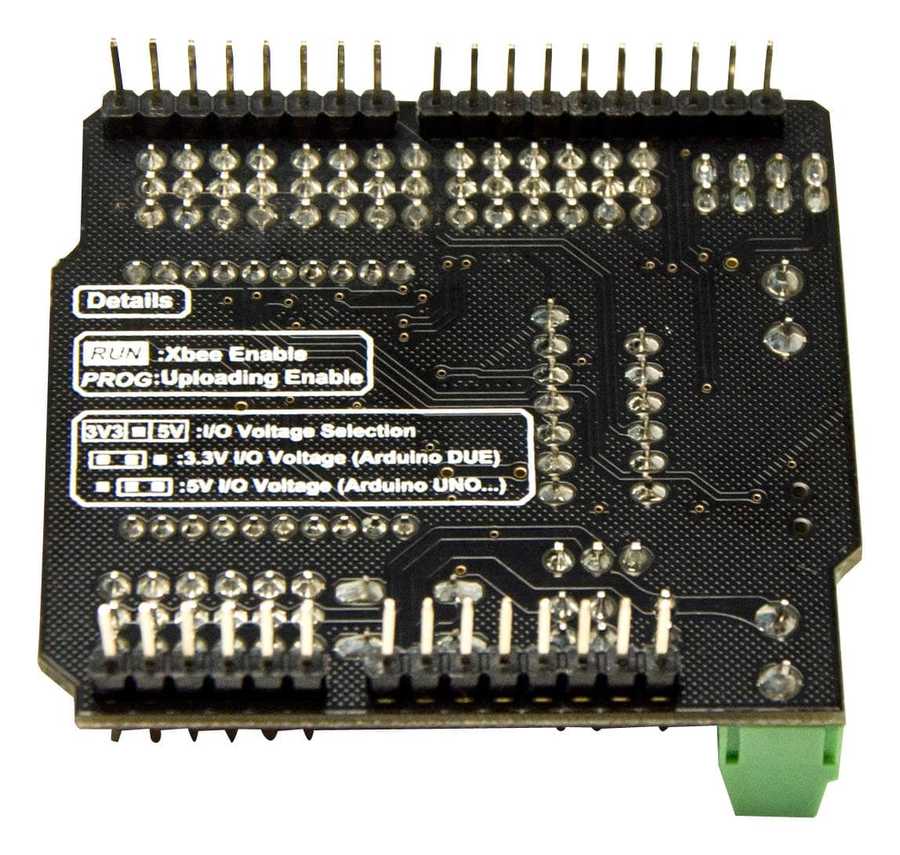

    The new version includes a voltage hardware setting through a jumper to allow compatibility with a bigger range of components at 3.3v like Raspberry pi, Due and others.

    It also includes a Servo external power, with a protective diode. This way you can enable a large range of servos from your Arduino.

    Latest version features a convenient switch that lets you program your ATmega328 boards like UNO, while you have another Serial device connected like a Xbee. Switch it, program it and get it back up and running with another switch. You don't need to disassemble your hardware or wiring.

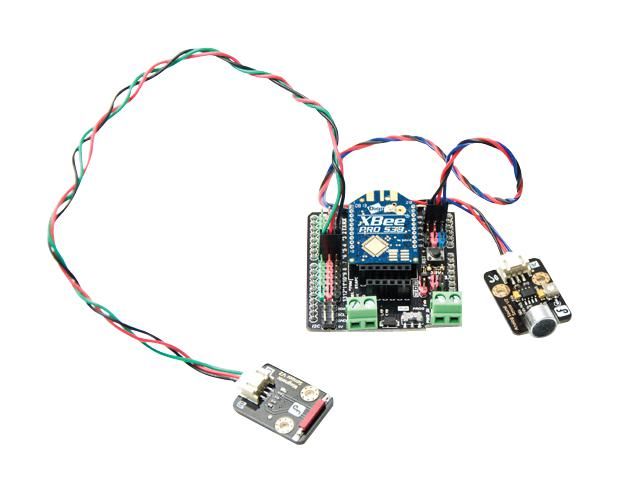

    Gravity: IO Expansion Shield for Arduino Sensor Connection

    A LED on top board and a reset button is in order to make it just a natural extension to Arduino boards. The LED is connected to pin 13

    FEATURES:

    • Compatible with the new Arduino Due
    • 3.3V/5V operating voltage select
    • Switch for wireless communtcation & programme
    • More Easily recognitive interfaces
    • Colorful header for illustrating digital or analog pins
    • Immersion gold surface

    SPECIFICATION:

    • Input Voltage
    • 7-12V, PWR_IN
    • 4.8-6V, SERVO_PWR, depending on your servo
    • Compatible module voltage: 5V/3.3V
    • Support interface: I2C, SPI, Xbee (Xbee pro), Bluetooth, APC220

    DOCUMENTS:

    SHIPPING LIST:

    • IO Expansion Shield for Arduino V7.1 x1

    PROJECTS:

    Project 1. Sunflower - Arduino Solar Tracker
    In modern solar tracking systems, the solar panels are fixed on a structure that moves according to the position of the sun. In this project it designs a solar tracker using two servo motors, a light sensor consisting of four mini photocells and Arduino UNO board.
    Hardware Components:
    DFRduino UNO R3
    I/O Expansion Shield for Arduino
    DF05BB Tilt/Pan Kit (5kg)
    Mini Photocell x 4
    Resistor 100kOhm x 4
    DFRobot Solar Panel

    Project 2. How to make a Heart Rate Monitor
    This project makes a Heart Beat Detection and Monitoring System using Arduino that will detect the heart beat using the Pulse Sensor and will show the readings in BPM (Beats Per Minute).
    Hardware needs:
    Arduino UNO Rev3
    I/O Expansion Shield for Arduino
    Heart Rate Sensor
    ESP8266 WiFi Bee

    Project 3. Build KnowFlow: automatic water monitor

    KnowFlow is the name of this water quality monitoring device, based on Arduino Uno. It can automatically monitor 5 parameters of water: pH, Temperature, Dissolved Oxygen, Electronic Conductivity, ORP.

    • Central Control Unit: Arduino Uno (DFRobot Bluno in this case) and Expansion Shield (DFRobot Expansion Shield V7.1 in this case)
    • Water Sensors: pH (pH probe and pH circuit board); EC (EC probe and EC circuit board); ORP (ORP probe and ORP circuit board); Temperature (temperature probe and temperature circuit board); Dissolved Oxygen (DO probe, BNC and circuit board); real time clock circuit board
    • Data Storage: Micro-SD module, Micro SD card
    • Fit and fix: mounting plate, water proof box( 200mm_150mm_75mm), water proof joint
    • Other parts: Cables (Wires), bread board, bolts and nuts, screws, battery, double-sided adhesive, write on tape, small wrench, spiral cable wrap

    Project 4. How to Make An Automatic Water Changing System
    Main Components:
    DFRduino UNO R3  *1
    Gravity: IO Expansion Shield for Arduino V7.1 *1
    Gravity: Analog Turbidity Sensor For Arduino *1
    Immersible Pump & WaterTube *1
    Gravity: Analog pH Sensor / Meter Kit For Arduino *1
    Wall Adapter Power Supply 12VDC *1 Solenoid Valve *1
    Gravity: Digital 5A Relay Module *1
    Water Pipe *2m
    Interface (for solenoid valve) *2
    I2C 16x2 Arduino LCD Display Module

    Project 5. Arduino Project - Make an Arduino Intervalometer For Timelapse Photography
    Some SLRs have input jacks built in to them for external triggers or intervalometers for time lapse photography. What the Nikon D40 does have is an IR receiver, designed to be used with a shutter remote. Here is what I used on the Arduino Project:
    DFRduino UNO (Arduino Compatible)
    Gravity: IO Expansion Shield for Arduino
    Gravity: Digital IR Transmitter Module
    Gravity:Button Module

    Project 6. How to Make an Automatic Christmas Tree
    With all the lights and decorations that people use at Christmas, power is left on all the time and electricity bills skyrocket. I made this motion detecting Christmas tree light setup that only turns on when people are nearby.
    Hardware list:
    PIR Sensor x1
    Bluno x1
    I/O Expansion Shield v7.1  x1
    LED Strip x1
    Relay Switch   x1
    Mini mp3 module
    DFSpeaker v1.0
    Regular power extension lead (with some modifications)
    1k resistors x2

    Project 7. How to Make a Santa Alarm
    Using the new RGB color sensor available at DFRobot, I rigged up a simple proximity alarm. I can use this to warn me if someone is in a close range of my Christmas tree putting presents under there. The hardware of this project is pretty simple and suitable for beginners.
    1 x Bluno Microcontroller v2.0 (SKU: DFR0267)
    1 x Gesture Sensor
    1 x I/O Expansion Shield v7.1 (SKU: DFR0265) (the extra I/O’s are very useful and prevent messy wiring!)
    1 x Digital Buzzer Module (SKU: DFR0032)
    1 x 220R Resistor (any will do)
    1 x Red LED
    1 x Breadboard (for prototyping and checking the circuit – any will do.)
    Jumper Wires for connections



    Project 8. How to make a Smart Rock-Paper-Scissors Game Robot

    When finishing reading this tutorial, you will find those very simple devices, principles and technologies can help you build very interesting equipment.

    Hardware list:

    DFRduino Uno R3 x 1

    Gravity IO expansion shield for Arduino  x 1

    Tower Pro MG90S servo x 3

    Ultrasonic wave sensor x 1
