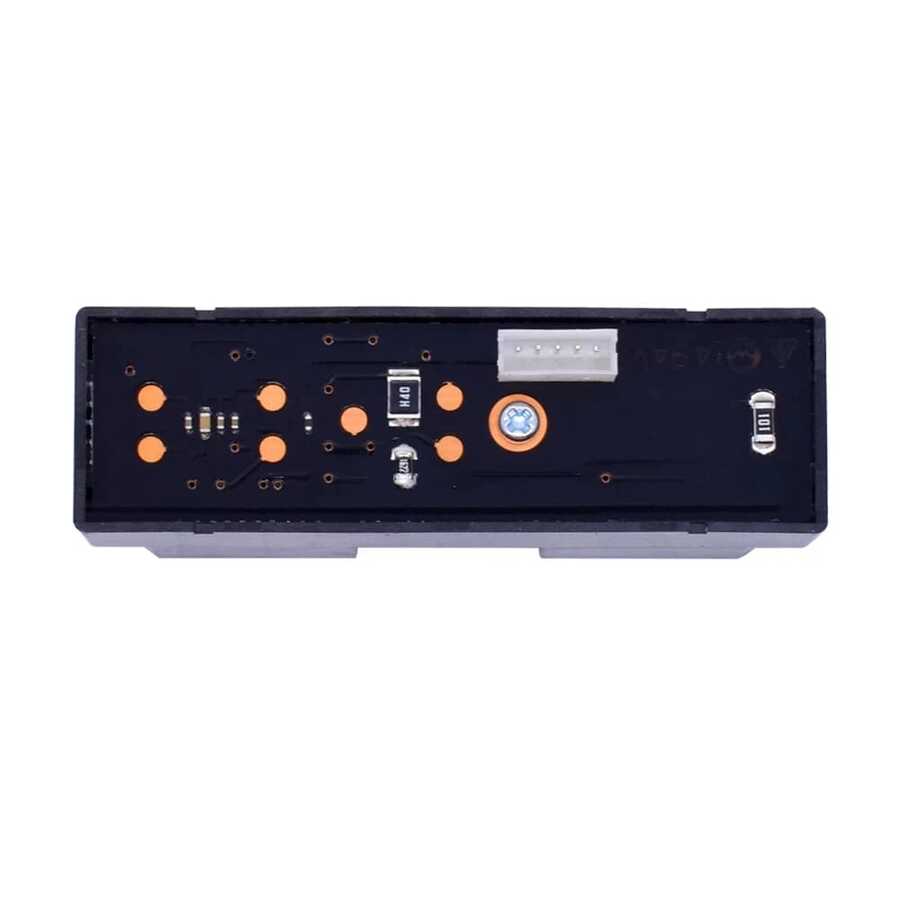

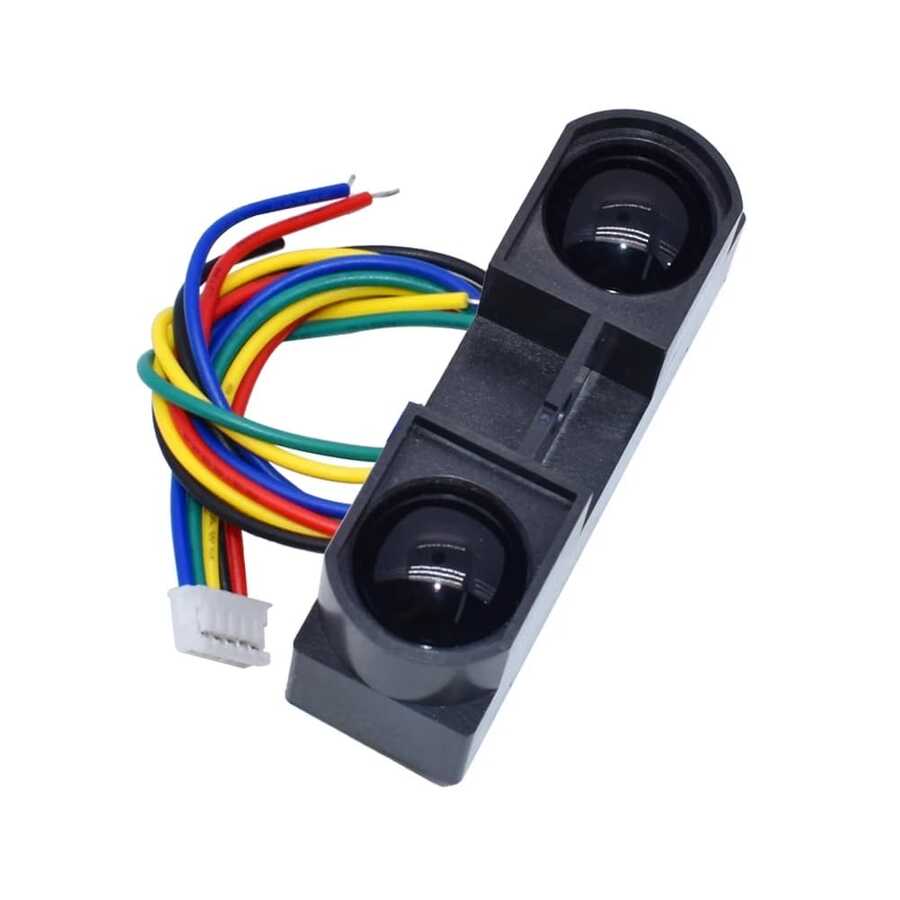

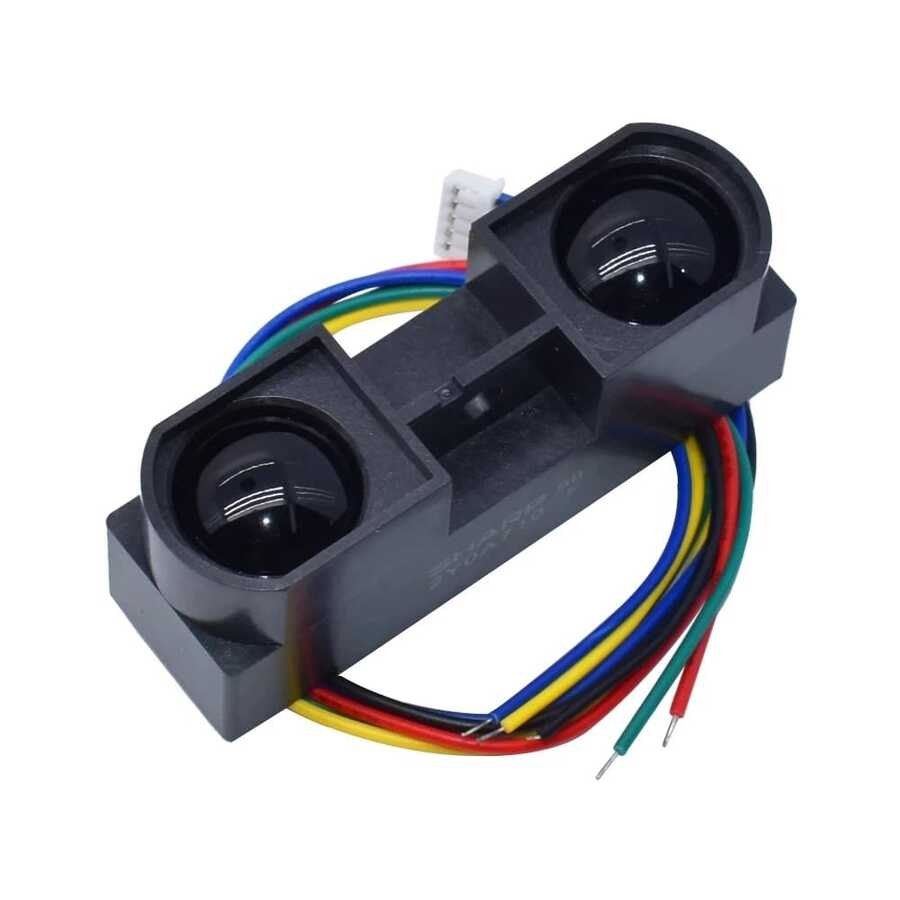

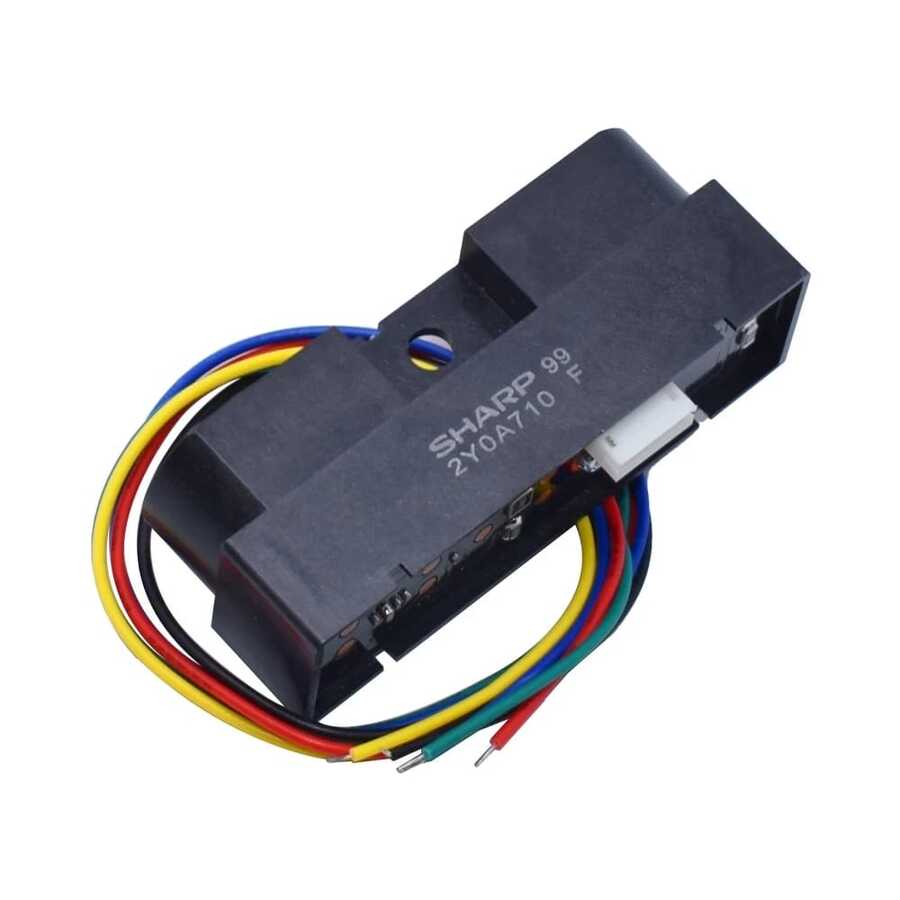

GP2Y0A710K0F 100-500cm IR Distance Sensor + Cable

Brand
Robotistan
Product Code
20075
Ölçüm Parametresi
Mesafe
Ölçüm Aralığı
110-550cm
Çalışma Voltajı
4.5-5.5V/DC
Fiyat
: 820.65 TL + VAT
KDV Dahil Fiyat
: 984.78 TL

GP2Y0A710K0F 100-500cm IR Distance Sensor + Cable

The GP2Y0A710K0F is a distance measurement sensor consisting of an integrated combination of PSD (position sensitive detector), IRED (infrared emitting diode) and signal processing circuitry. The reflection diversity of the object, the ambient temperature and the operating time do not easily affect the distance sensing due to the adoption of the triangulation method. This device outputs the voltage corresponding to the sensing distance. So this sensor can also be used as a proximity sensor.



GP2Y0A710K0F IR Distance Sensor Usage Areas:

  • Computers
  • Telecommunications Equipment
  • Measuring Devices
  • Home Electronics
  • Audio Devices
  • Rescue and Safety Equipment
  • Traffic Signaling
  • Transportation-Control devices



GP2Y0A710K0F IR Distance Sensor Technical Specifications:

  • Input Current: 50mA/DC
  • Detection Range: 100cm-550cm
  • Operating Voltage Range: 4.5V-5.5V DC
  • Output Type: Analogue
  • Dimensions: 58mm x 22.5mm x 17.6mm



GP2Y0A710K0F IR Distance Sensor Dimensions:








What is the difference between IR sensors and ultrasonic sensors?

The biggest difference between IR sensors and ultrasonic sensors is the way they work. Ultrasonic sensors use sound waves to find out how far you are from an object. IR sensors, on the other hand, use infrared light to determine if an object is present.



GP2Y0A710K0F IR Distance Sensor Package Contents:

  • 1 x GP2Y0A710K0F 100-500cm IR Distance Sensor + Cable
