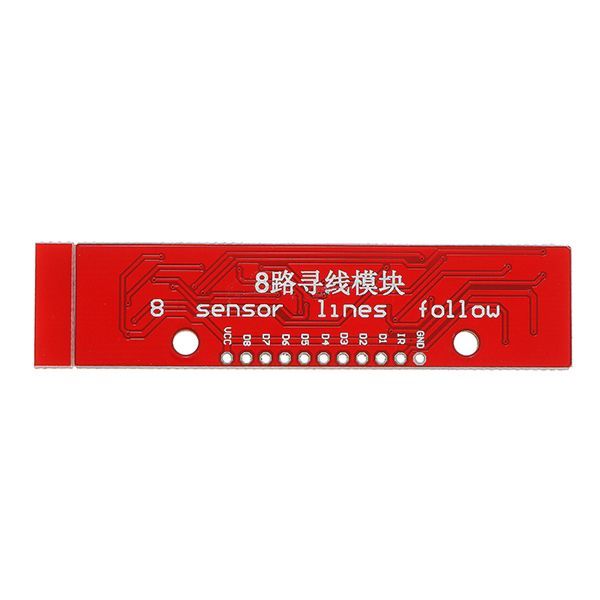

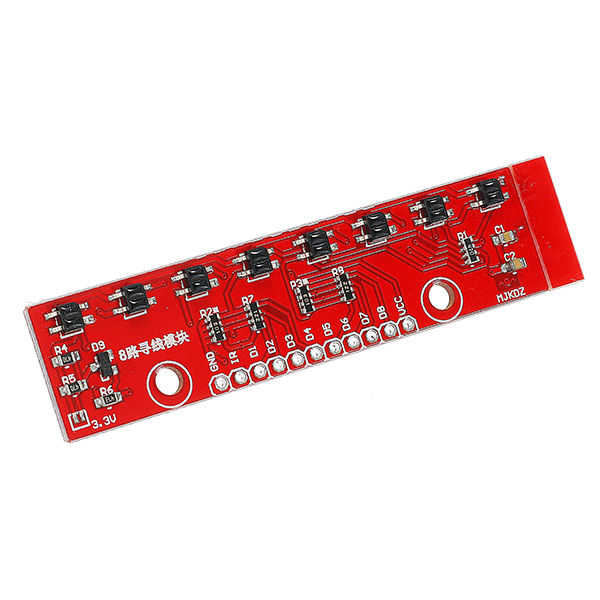

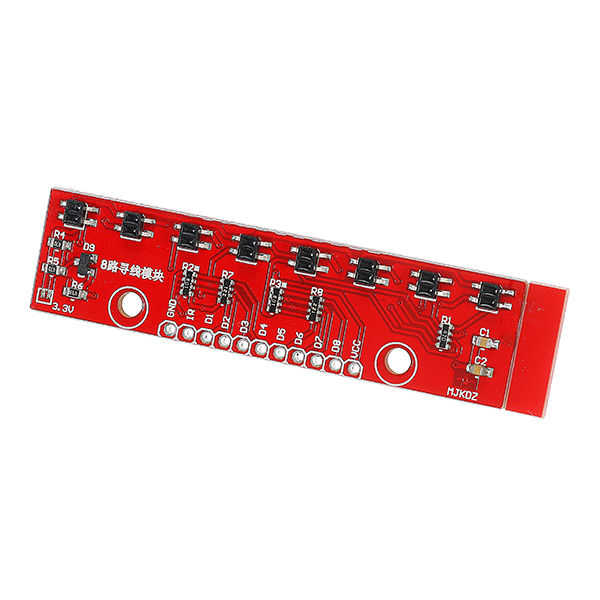

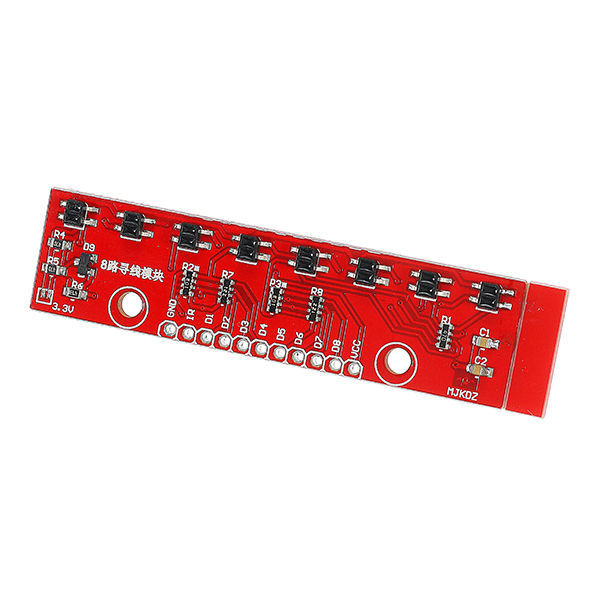

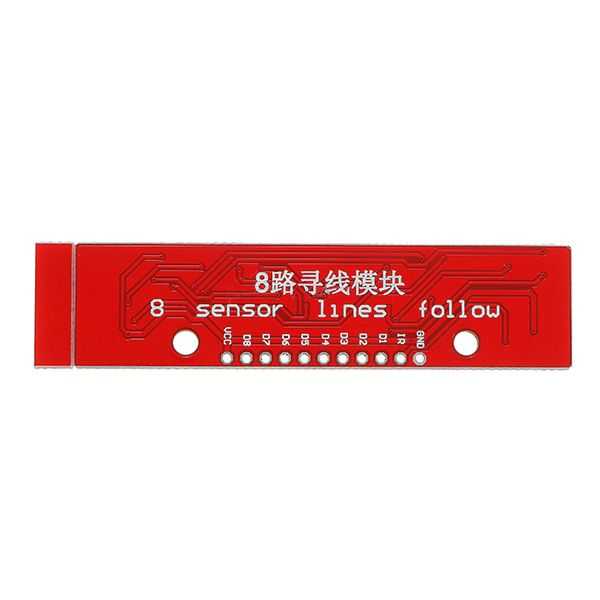

QTR-8A 8 Reflectance Sensor Board

Product Code
:
18116
Brand / Origin
:
Robotistan
Quantity
:
0
Without Vat
:
49.05 TL
Out of stock Alert when in stock
Same Day Shipping
Orders placed until 5:00 on weekdays and 10:30 on Saturday are shipped the same day.
Add to Favorites
Click here to add this product to your list and review it later.
Technical Service
We are always with you with our experienced staff and advanced support services.
Refund Guarantee
We carry out the process without upsetting you with a 14-day return guarantee.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box
  • The QTR-8A reflectance sensor array is intended as a line sensor, but it can be used as a general-purpose proximity or reflectance sensor. The module is a convenient carrier for eight IR emitter and receiver (phototransistor) pairs evenly spaced at intervals of 0.375" (9.525 mm). Each phototransistor is connected to a pull-up resistor to form a voltage divider that produces an analog voltage output between 0 V and VIN (which is typically 5 V) as a function of the reflected IR. Lower output voltage is an indication of greater reflection.

    The LED current-limiting resistors for 5 V operation are arranged in two stages; this allows a simple bypass of one stage to enable operation at 3.3 V. The LED current is approximately 20-25 mA, making the total board consumption just under 100 mA.

    Technicial Specifications:

    • Operating Voltage: 3.3 - 5V
    • Operating Current: 100mA
    • Output format: 8 analog signal voltage
    • Output voltage range: 0 V-Supply Voltage Value
    • Ideal sensing distance: 3 mm
    • Maximum sensing distance: 6 mm
    • Dimensions: 67mm x 17mm x 4mm
