7-Segment Shield for Arduino

7-Segment Shield Compatible with Arduino

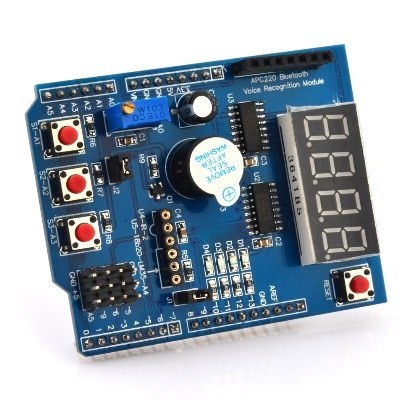

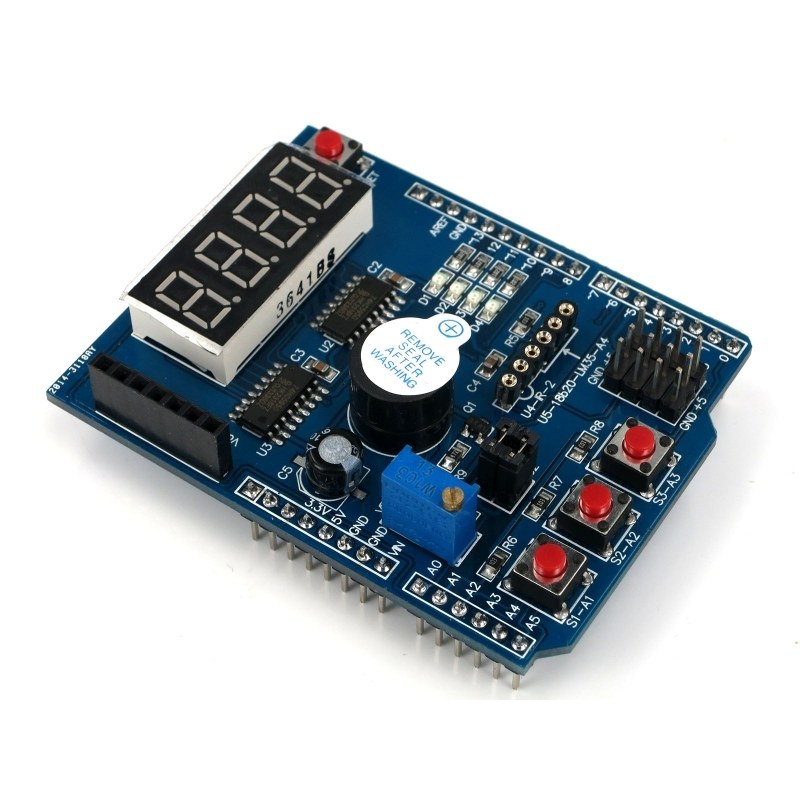

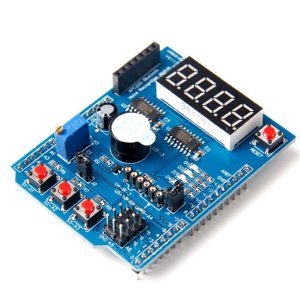

The 7-Segment Shield compatible with Arduino features many different components, providing the functionalities that might be needed in various projects. There is a 4-digit 7-segment display on the shield. This 7-segment display is driven by the 74HC595 IC. There are ready-to-use header connections to directly connect various temperature sensors (DS18B20 – LM35) and Bluetooth modules.

In addition, a buzzer has been added that can be used in projects such as alarms and playing melodies. Furthermore, there are 3 push buttons, a trimpot connected to the analog 0 (A0) pin, and 4 SMD LEDs on the board. For various sensor connections, 4 header connections consisting of a 5V-GND-Pin trio are provided.

You can watch the video below for example usages, and you can access the article with code explanations from the documents section.

Technical Specifications:

• Compatible with Arduino® boards
• 4-digit 7-segment display (driven by 74HC595)
• Ready-to-use connection headers for DS18B20 and LM35 temperature sensors
• 3296 trimpot connected to analog 0 input (can be used in applications such as reading voltage or adjusting LED brightness)
• Infrared receiver connection (for remote control applications)
• Buzzer (for applications such as alarm, melody playing, etc.)
• Header connection for Bluetooth or voice recognition module
• 4 header connections linked to digital pins 5, 6, 9, and analog pin 5 for easy connection to various sensors
• Dimensions: 69 x 54 x 11 mm
• Weight: 27 g

Products That Can Be Used Together:

• UNO R3 Development Board Compatible with Arduino
• Arduino® UNO R3
• Shield Types Compatible with Arduino
• HC-06 Bluetooth Module
• Sensor Modules
• LM35DZ Temperature Sensor
• DS18B20 Waterproof Digital Temperature Sensor

Documents & Useful Links:

• 7-Segment Shield Library (for Arduino®)
• Code and Explanations Regarding Shield Usage
• 74HC595 Datasheet
