5-24 V 400 Steps Incremental Optical Rotary Encoder, AB 2 Phase - E38S6G5-400B-G24N

Brand
Robotistan
Product Code
18898
Fiyat
: 577.83 TL + VAT
KDV Dahil Fiyat
: 693.40 TL
Money Order Price : 672.60 TL %3  Discount

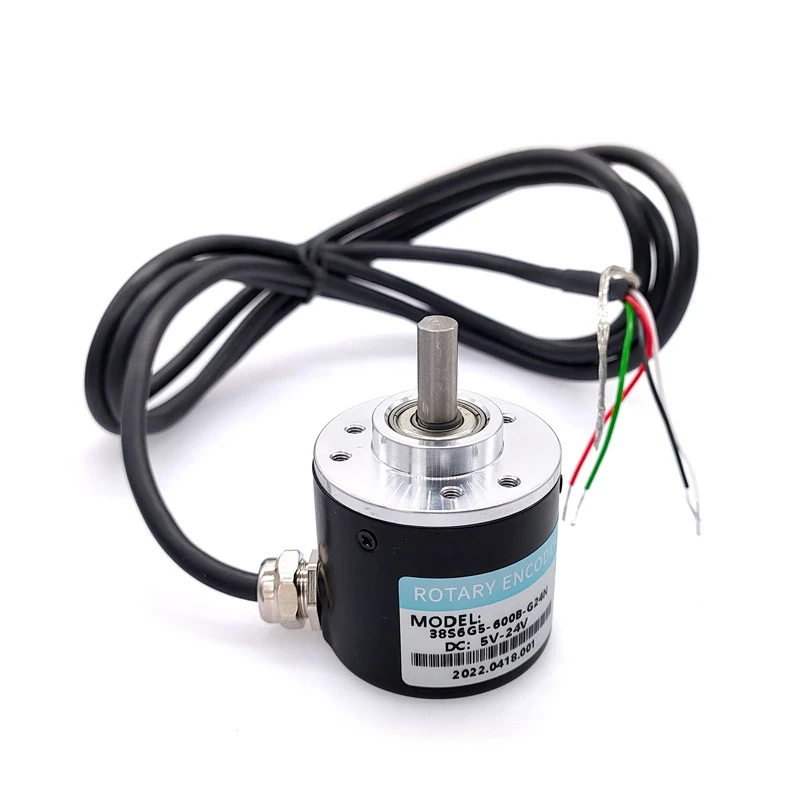

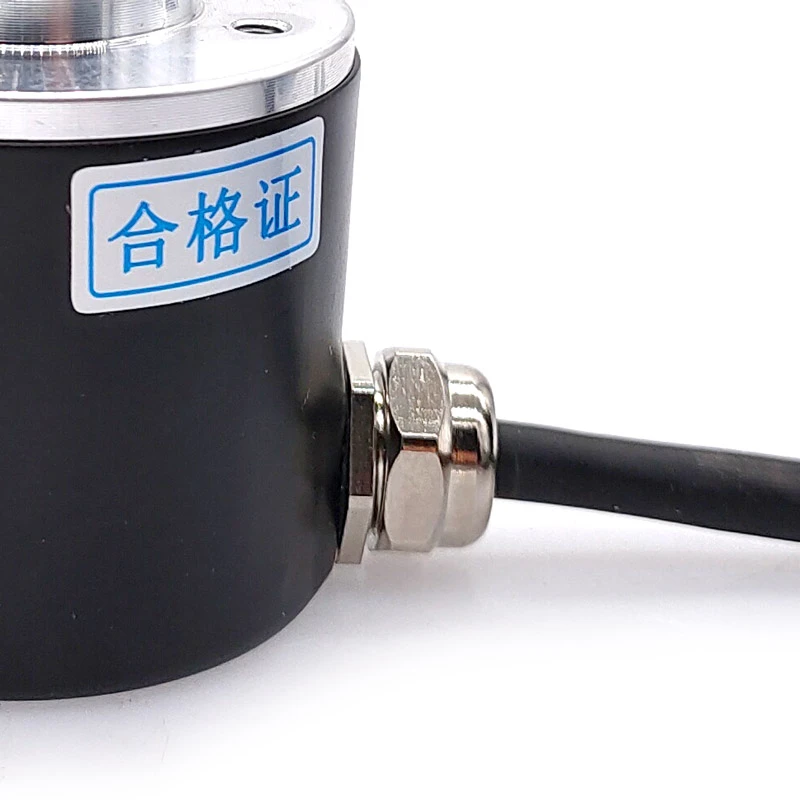

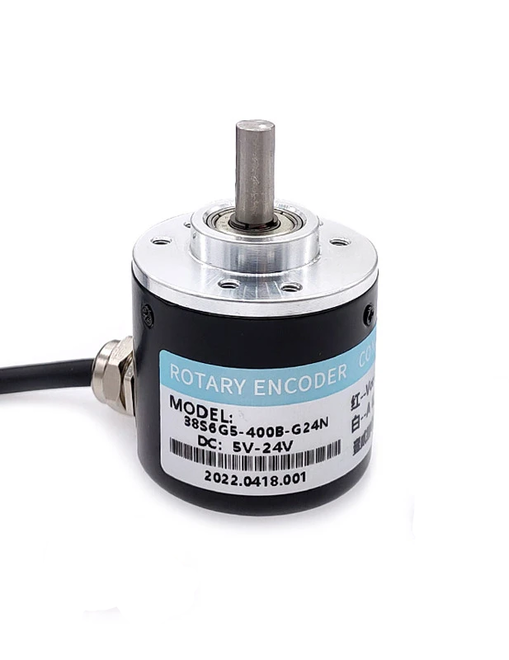

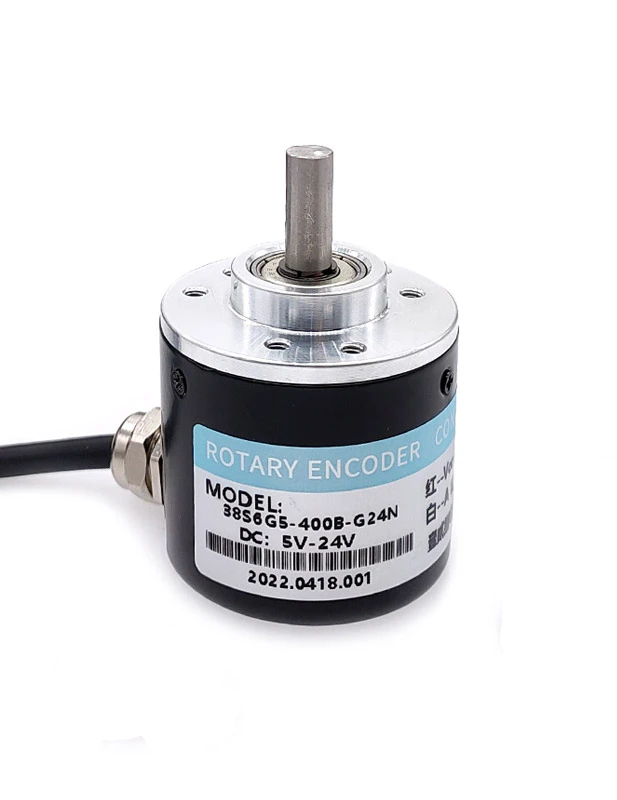

5-24 V 400 Steps Incremental Optical Rotary Encoder, AB 2 Phase - E38S6G5-400B-G24N

Encoders convert rotary or linear motion into digital signals. Typically used for monitoring or controlling motion parameters such as speed, direction, distance or location.

  • EU two-phase incremental optical rotary encoder 400 pulses, NPN open collector output.
  • Standard with 1.5m cable
  • Performance: 400 pulses / rev.
  • Operating voltage: DC5-24V
  • Maximum mechanical speed: 5000 rpm
  • Electrical response frequency: 20 K / s
  • Integrated speed: 2000 rpm

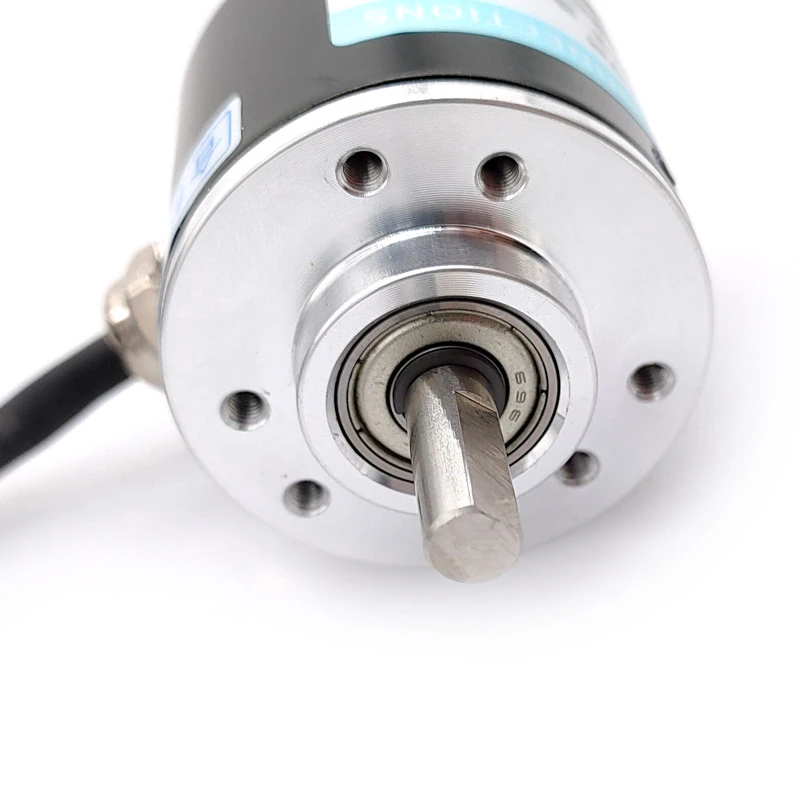

  • Size: encoder body size: oder38mm; shaft 136 × 13mm; Axis platform: high 5mm, 2020mm; Fixing holes: M3 screws
  • 28 circles with three mounting holes and 30 with three mounting holes; side

Exit:

AB rectangular two-phase quadrature pulse output circuit output NPN open collector output type, with this output type and internal pull-up resistor connected directly to the microcontroller or PLC, such as the 51 single or Mitsubishi PLC (PLC must be connected to the input connected to 0 v ), Note: If the encoder is not connected to the device, the oscilloscope cannot be an oscilloscope (open collector output when there is no tensile resistance, there is no voltage output) please to the oscilloscope plus two pull-up resistor AB two-phase output;

How to link:

  • Green = one phase
  • White = B phase
  • Red = VCC positive supply
  • Black = GND
  • Note: one phase and B phase output lines must not be connected directly to the vcc, otherwise they will burn out the output triode.

Package Included:

  • 1 x 5-24 V 400 Steps Incremental Optical Rotary Encoder, AB 2 Phase - E38S6G5-400B-G24N
