WaveShare 1.5 inch OLED Ekran - 128x128

Product Code
:
18314
Brand / Origin
:
WaveShare
Quantity
:
10
Without Vat
:
79.41 TL
Quantity:

-

+

Same Day Shipping
If you purchase before 3.30 pm, your products will ship at the same day. Except saturday and sunday
Add to Favorites
You can add this product on your list and check it later.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box

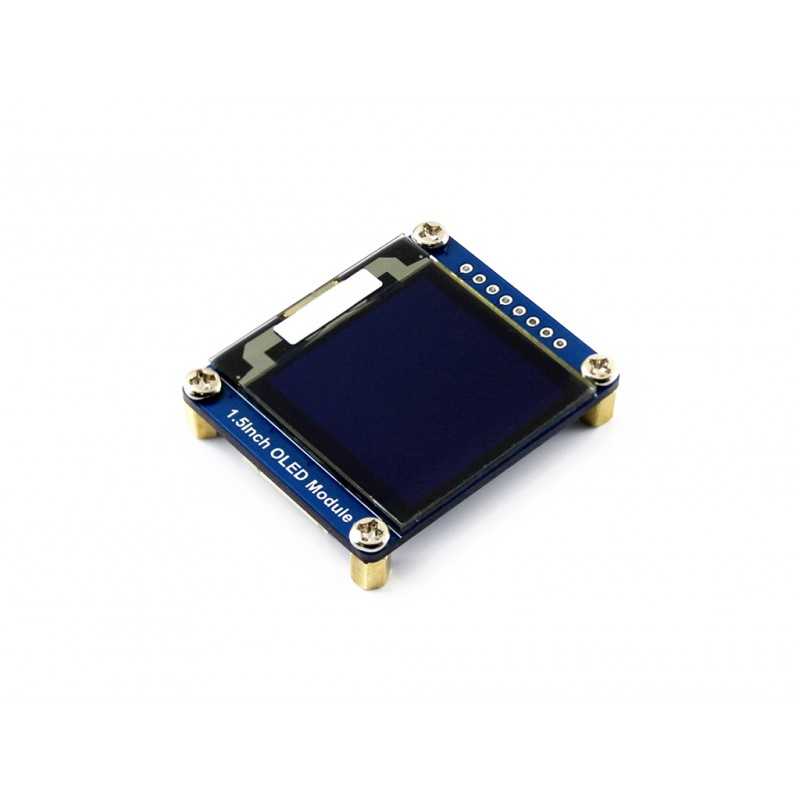

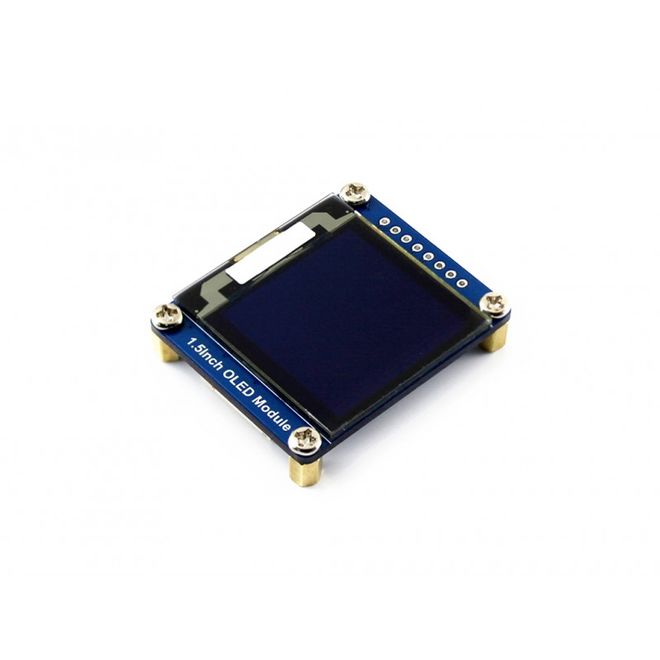

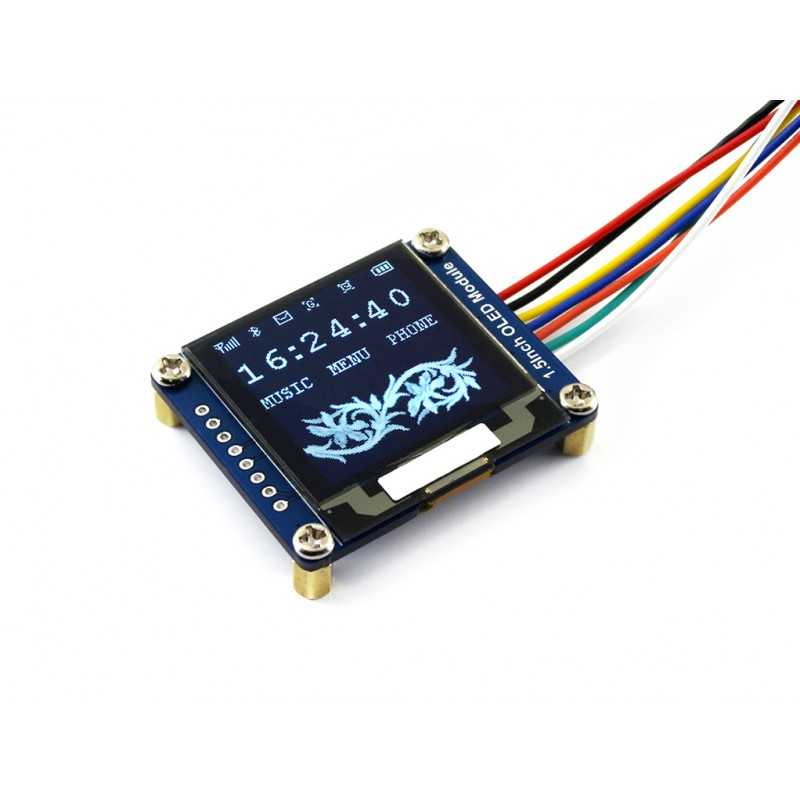

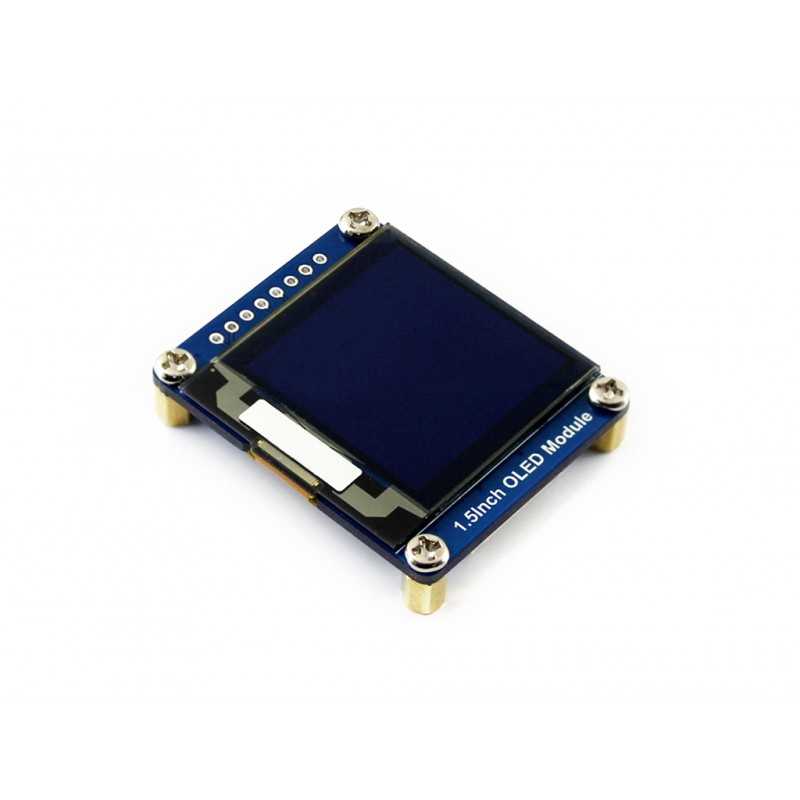

  • This is a general OLED display Module, 1.5inch diagonal, 128x128 pixels, 16 gray scale, with embedded controller, communicating via SPI or I2C interface.

    Features:

    • 128x128 high resolution
    • 16 gray scale, better display effect
    • Supports SPI or I2C interface, configured via onboard resistor
    • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

    Specifications:

    • Driver: SSD1327
    • Interface: SPI / I2C
    • Display color: White
    • Gray scale: 16
    • Resolution: 128x128 (most other competitive products are typically 128x64)
    • Viewing angle: >160°
    • Operating voltage: 3.3V / 5V
    • Dimension: 44.5 x 37 (mm)

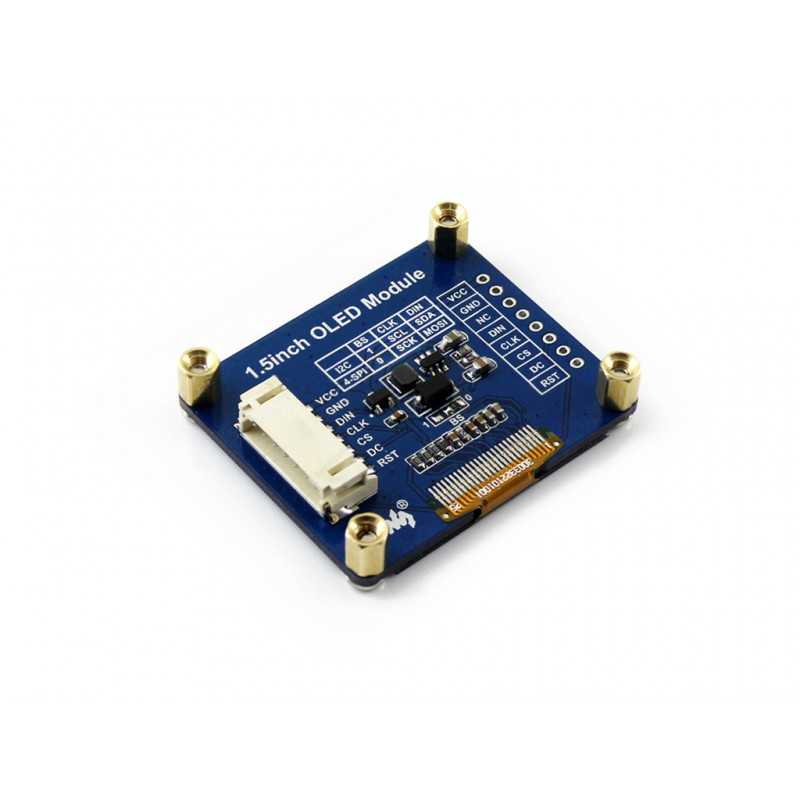

    Interface:

    SYMBOL DESCRIPTION
    VCC Power (3.3~5V input)
    GND Ground
    DIN Data input
    CLK Clock data input
    CS Chip selection, low active
    DC Data/Command selection (high for data, low for command)
    RST Reset, low active

    There are two available drive interfaces for this OLED module: 4-wire SPI and I2C:

      BS CS DC DIN CLK
    4-wire SPI 0 Chip select Data/Command MOSI SCK
    I2C 1 NC I2C address selection SDA SCL

    Dimensions:

    1.5inch OLED Module dimensions

    Documents:
