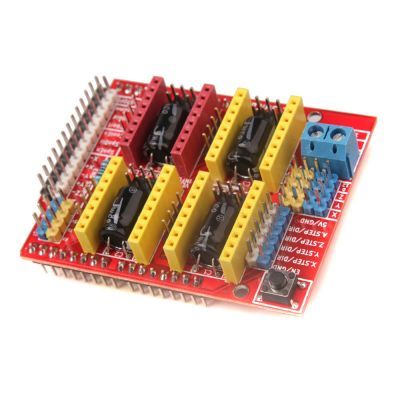

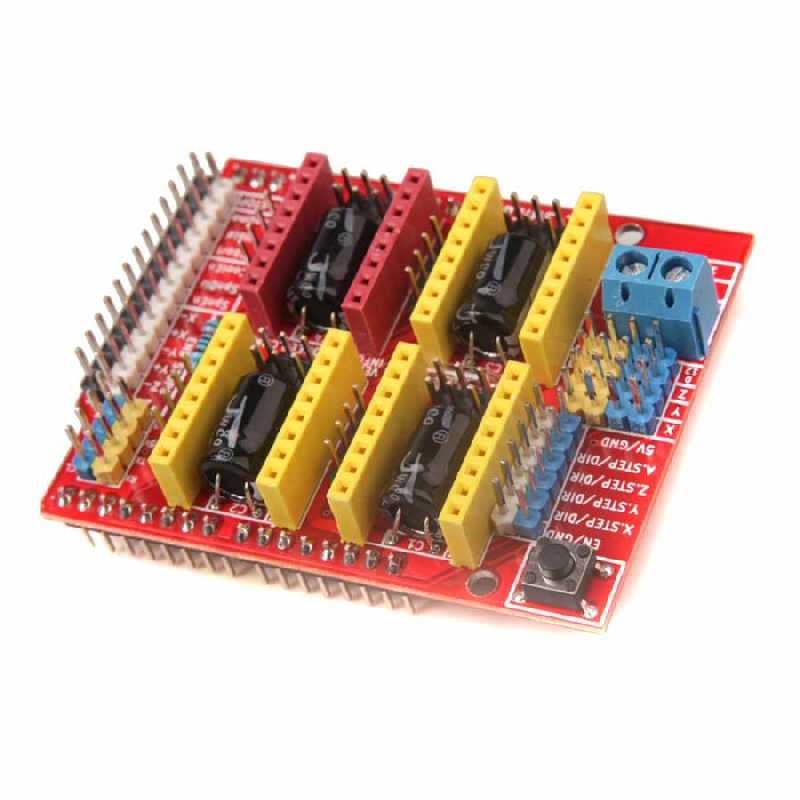

UNO CNC Shield (compatible with A4988) for Arduino

UNO CNC Shield Compatible with Arduino (A4988 Compatible)

The shield, which is a driver expansion board, can be used in projects requiring stepper motor control, especially CNC machines, 2-3 axis pen plotter projects, and laser cutting or engraving machines.
Although it is possible to use it in 3D printers, the pin count of the Arduino® UNO R3 board will not be sufficient to control a 3D printer.

4 drivers can be plugged onto the shield board. These are the X, Y, Z, and A axes. Under normal conditions, the A axis is not connected to any pin of the Arduino® UNO R3.

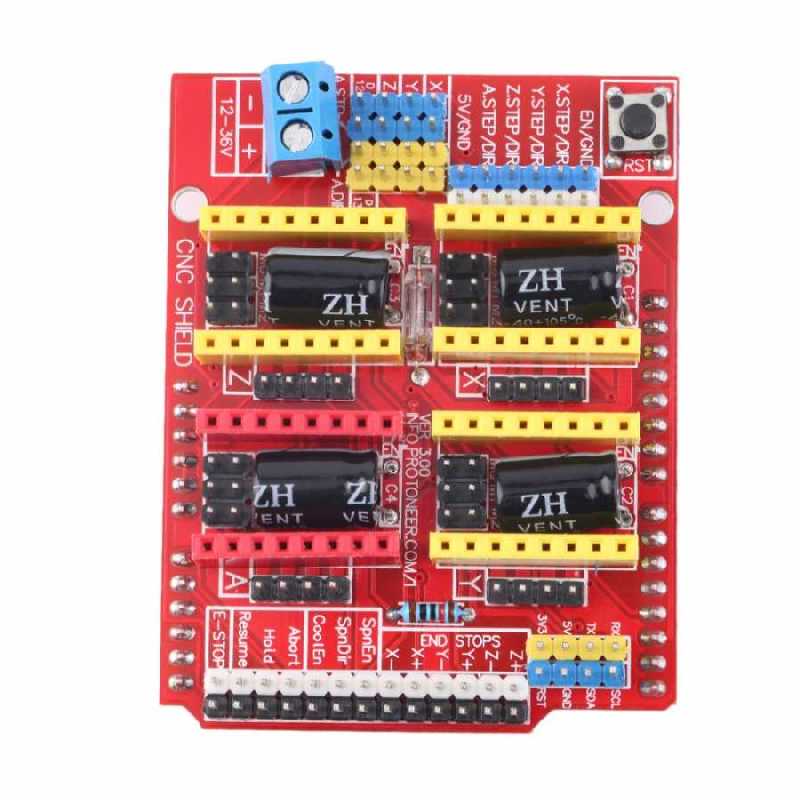

For the A axis, one of the X-Y-Z axes can be cloned if desired, or there is a jumper configuration in the area marked in green in the image below, which allows connection to pins D12 and D13 of the Arduino® UNO R3.

UNO CNC Shield Compatible with Arduino (A4988 Compatible) Technical Specifications:

• 4-Axis Control (X-Y-Z-A)
• 12-36V support (only the DRV8825 driver can operate with 36V)
• 2 limit switch pins for each axis

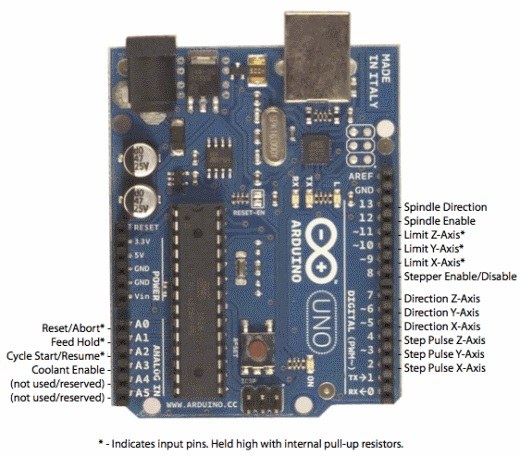

• GRBL compatible
• Pin outputs are available for Start, Stop, Pause, and Estop functions.

Products That Can Be Used Together:

• UNO R3 Development Board Compatible with Arduino (CH340)
• Arduino® UNO R3
• A4988 Stepper Driver
• HC-05 Bluetooth Module
• Stepper Motor Types

Documents & Useful Links:

• Click here to access highly detailed information about the product.
• GRBL GitHub Page
• Universal G-code Sender (GRBL compatible computer control interface)
• LightBurn (Paid software for laser machines built with CNC shield - has GRBL support)
