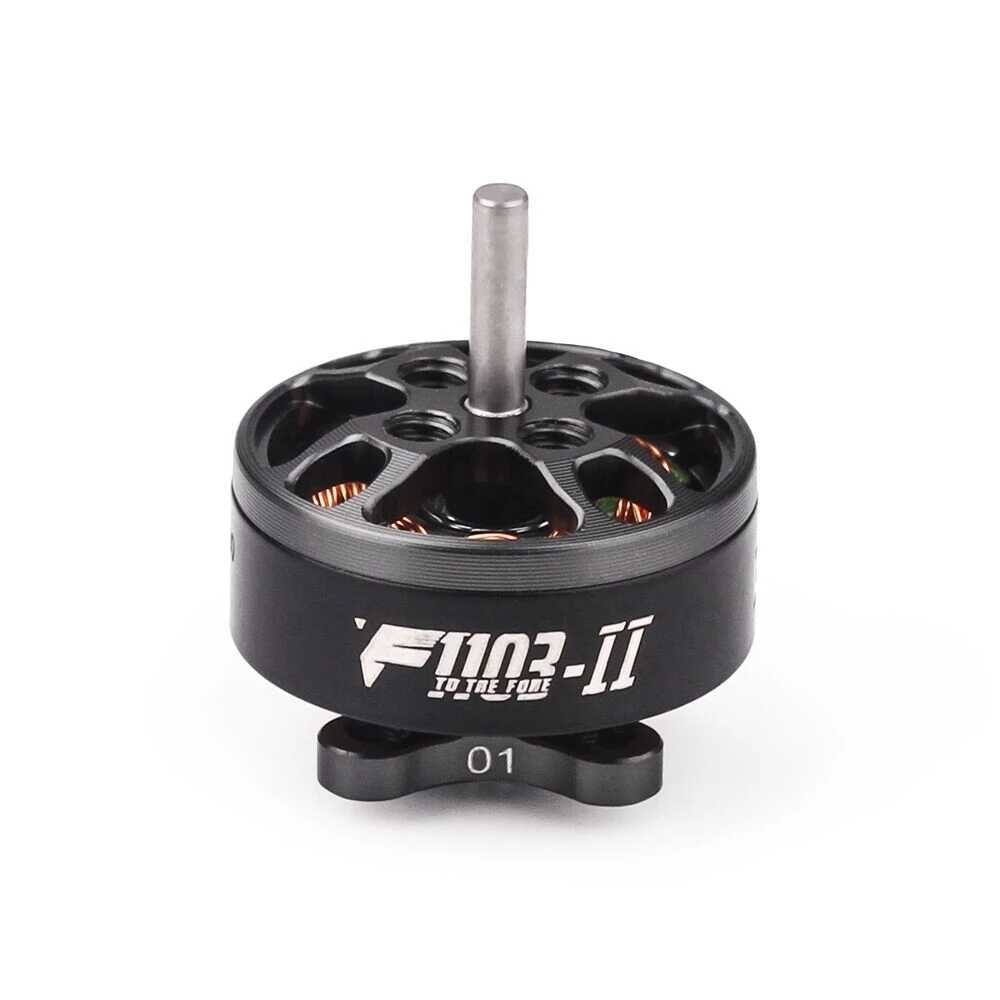

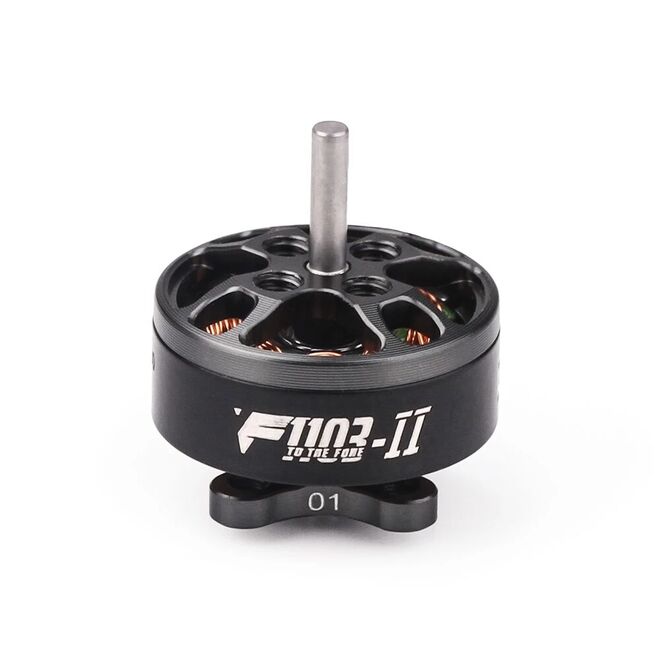

T-Motor F1103 8000KV 2-3S Brushless Motor for RC Drone FPV Racing

T-Motor F1103 8000KV 2-3S Brushless Motor for RC Drone FPV Racing

Brushless motors, as the name suggests, do not have brushes. Since there is no brush, the input power is supplied directly to the stator of the motor. The rotor is made of permanent magnet and windings surround the rotor. By creating a magnetic field that pushes and attracts the magnets, the rotor is rotated. Since there are no brushes in brushless motors, there is no noise and spark formation. This helps to increase the efficiency as well as the life of the motor. Brushless motors have become common in many applications due to their long life and reliability. Brushless motors are also used in new generation electric vehicles. Brushless motors can be used for different applications and needs.

In addition to these;

-Long life Japanese NMB ball bearings.

- Efficient Japanese Kawasaki stator steel

- Rare earth magnets stable up to 180 degrees

-Oxygen-free pure copper wires

-CNC machined aluminum case

-silicone wire ends

-silicone wire ends

-It has a unique wiring method.

T-Motor F1103 8000KV 2-3S Brushless Motor for RC Drone FPV Racing Specifications

Model: F1103

Configuration: 9N12P

KV: 8000KV

Shaft diameter: 1.5mm

Number of cells: 2-3 S Lipo

Idle current: 0.58A

internal resistance: 163mΩ

Engine dimensions: Ø14. 4x14mm

Weight including cables: 5.3g
