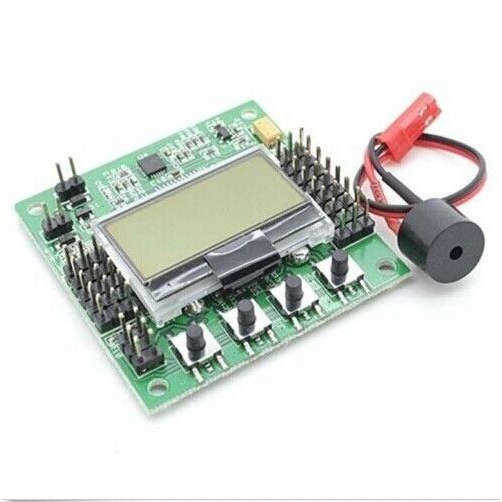

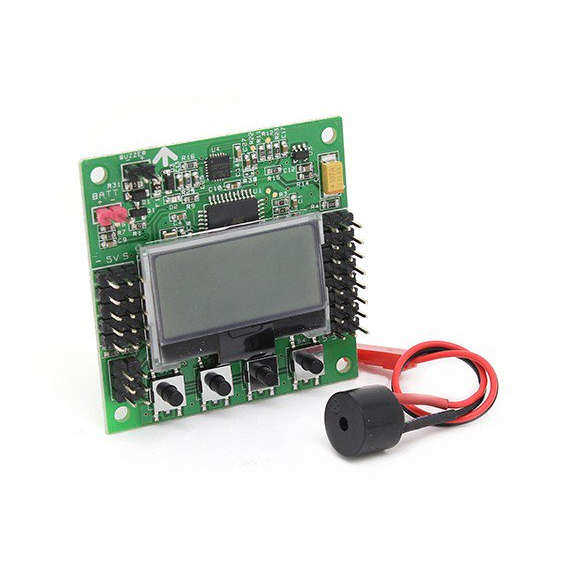

Screen Display KK2 Multicopter, Tricopter, Quadcopter Controller Board

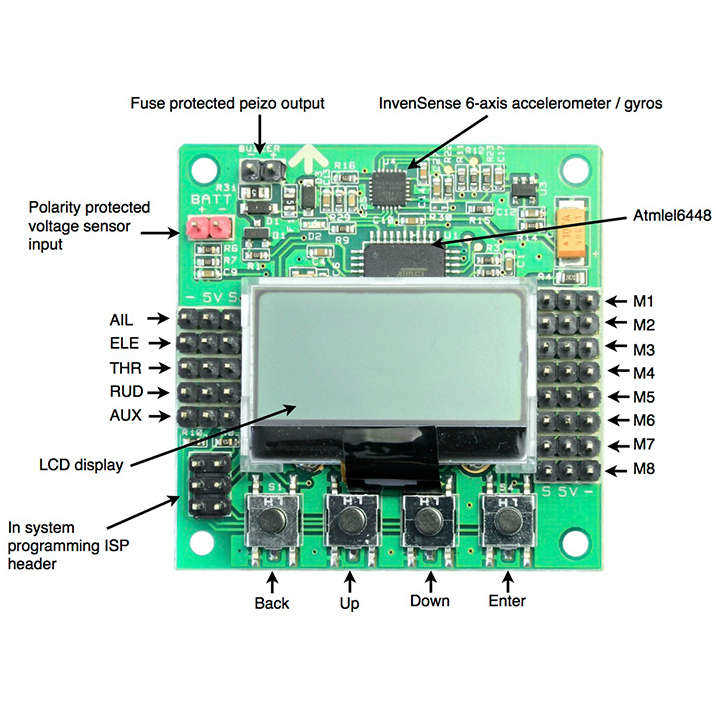

This is KK2 Multicopter controller board with a screen display and it is fully compatible with KK Multi Rotor Control circuit. The board uses an Atmega 644 PA microcontroller and 6050MPU Gyro externally. This will allow you to have a useful and bill fitting experience like to know the next movement according to which rotor you have activated.

Product Features:

• Sizes: 51 mm x 51 mm x 12 mm
• Weight: 21 gr
• Integrated circuit: Atmega644 PA
• Gyro / Acc: 6050MPU
• Supply voltage: 4.8 V - 6 V
• AVR interface: Standard 6 pins
• Reciever signal: 1520 us (5 ch)
• Signal transferred to the controller board: 1520 us

Documents:

• Click here to find a detailed information about the product.
