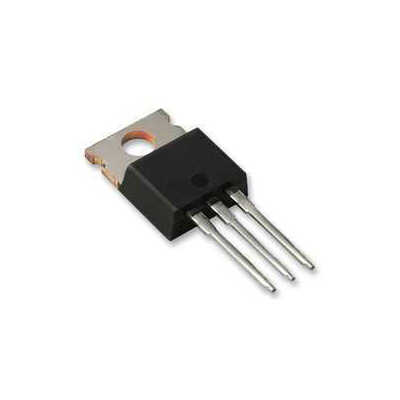

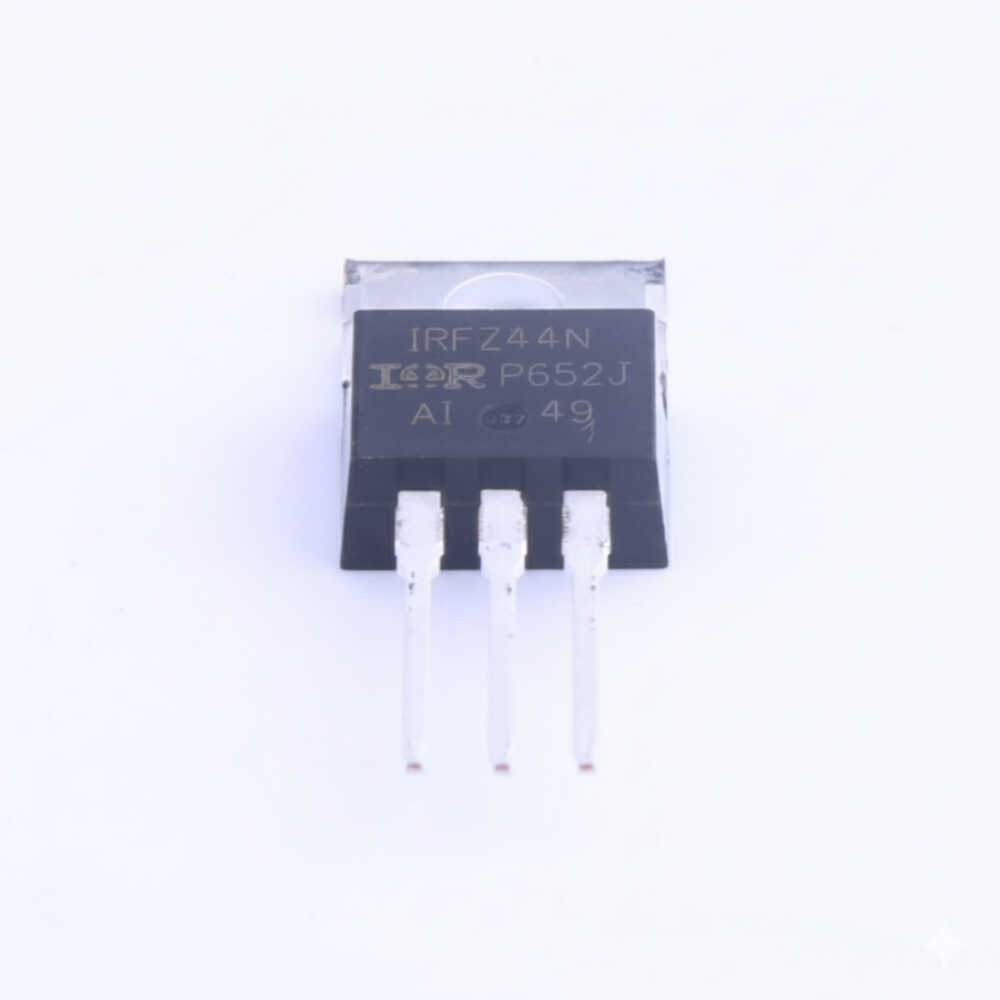

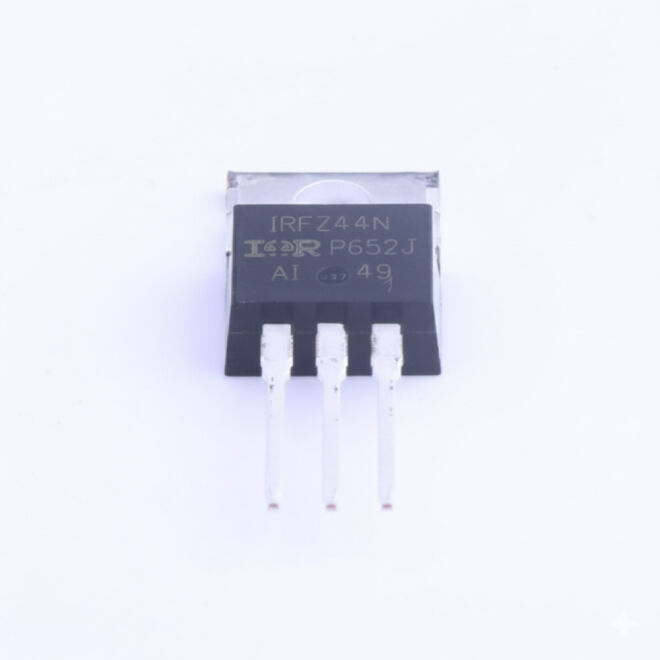

IRFZ44 - 49A 55V MOSFET - TO220 Mofset

IRFZ44NPBF - 49 A 55 V MOSFET - TO-220

The IRFZ44NPBF is an N-channel MOSFET designed for high-current and low-resistance power applications. With its low R_DS(on) value, high current capacity, and fast switching characteristics, it delivers high efficiency in motor drivers, power supplies, and DC-DC converters. The TO-220 package provides excellent heat dissipation and ensures reliable performance in high-power circuits. In addition, its Pb-Free (lead-free) and RoHS compliant structure makes it environmentally friendly.

IRFZ44NPBF - 49 A 55 V MOSFET Technical Specifications:

• Type: N-Channel MOSFET

• Maximum Drain-Source Voltage (V_DS): 55 V

• Maximum Drain Current (I_D): 49 A

• R_DS(on) (Typical): 0.032 Ω @ 10 V

• Gate Threshold Voltage (V_GS(th)): 2.0 V - 4.0 V

• Maximum Power Dissipation: 94 W

• Operating Temperature Range: -55°C ~ +175°C

• Package Type: TO-220

• Environmentally Friendly (Pb-Free / RoHS Compliant)
