TEA5767 FM Stereo Radio Module

Product Code
:
16002
Brand / Origin
:
China
Quantity
:
7
Without Vat
:
36.42 TL
Quantity:

-

+

Same Day Shipping
If you purchase before 3pm, your products will ship at the same day. Except saturday and sunday
Add to Favorites
You can add this product on your list and check it later.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (4)
  • Recommend
  • Images
  • Suggestion Box

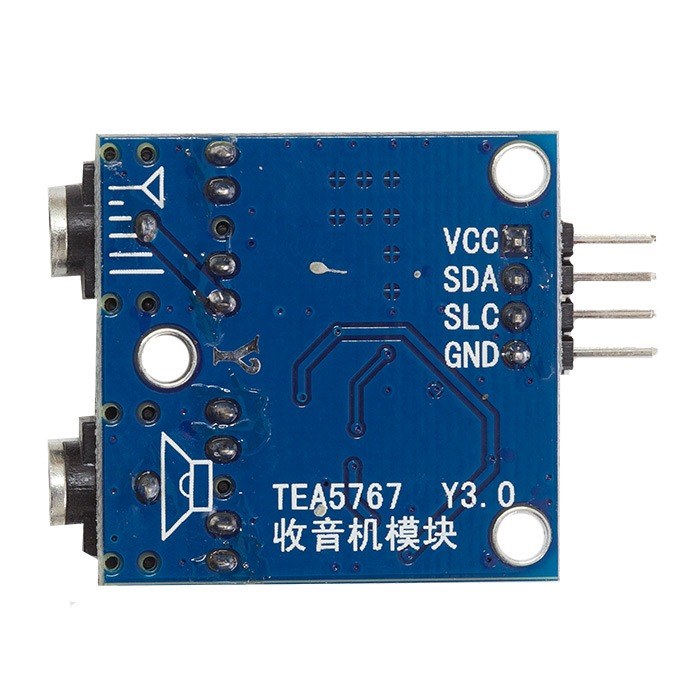

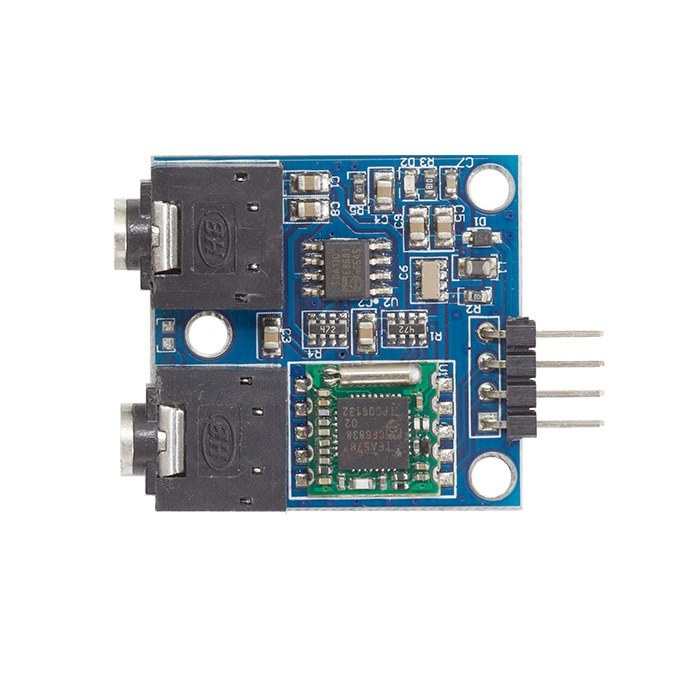

  • This is an I2C controlled stereo FM radio modul that can be used with Arduino or other microcontoroller boards. You can build you own stereo FM radio with this product. The module contains 1/8" (3.5 mm) headset / speaker jack and external antenna connection. It uses TEA5767 chip as Tuner circuit and TDA1308 chip as audio amplifier.

    Sample project:

    Technical Details:
    • Power supply: 5V
    • Circuit board size: 31mm * 30mm
    • Frequency range : 76-108 MHZ
    • With the power supply reverse protection diode
    • Power output filter inductance on board
    • Multiple capacitance combination filter
    • Blue power light
    • The antenna port can be directly pull plug
    • I2C bus communication
    • Built in Phillips FM radio special chip module TEA5767
    • On board headphone amplifier chip TDA1308 as audio amplification

    Documents:
