TB6612FNG Stepper Motor / DC Motor Driver

Product Code
:
17723
Brand / Origin
:
Robotistan
Quantity
:
0
Without Vat
:
10.96 TL
Out of stock Alert when in stock
Same Day Shipping
If you purchase before 3.00 pm, your products will ship at the same day. Except saturday and sunday
Add to Favorites
You can add this product on your list and check it later.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box

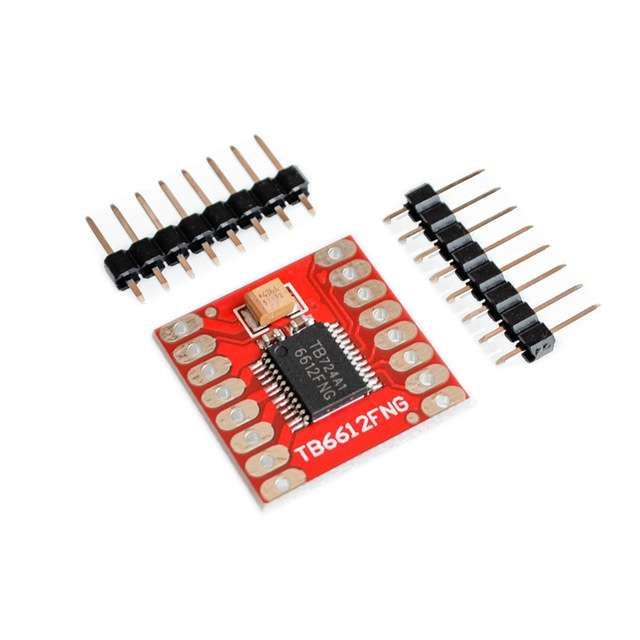

  • TB6612FNG dual DC / stepper motor driver

    The Motor Driver TB6612FNG Module motor driver can control up to two DC motors at a constant current of 1.2A (3.2A peak). Two input signals (IN1 and IN2) can be used to control the motor in one of four function modes – CW, CCW, short-brake, and stop. The two motor outputs (A and B) can be separately controlled, the speed of each motor is controlled via a PWM input signal with a frequency up to 100kHz. The STBY pin should be pulled high to take the motor out of standby mode.

    Logic supply voltage (VCC) can be in the range of 2.7-5.5VDC, while the motor supply (VM) is limited to a maximum voltage of 15VDC. The output current is rated up to 1.2A per channel (or up to 3.2A for a short, single pulse).

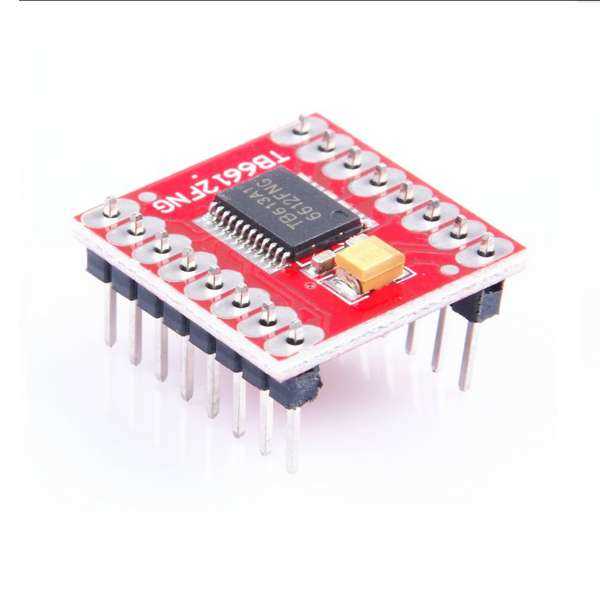

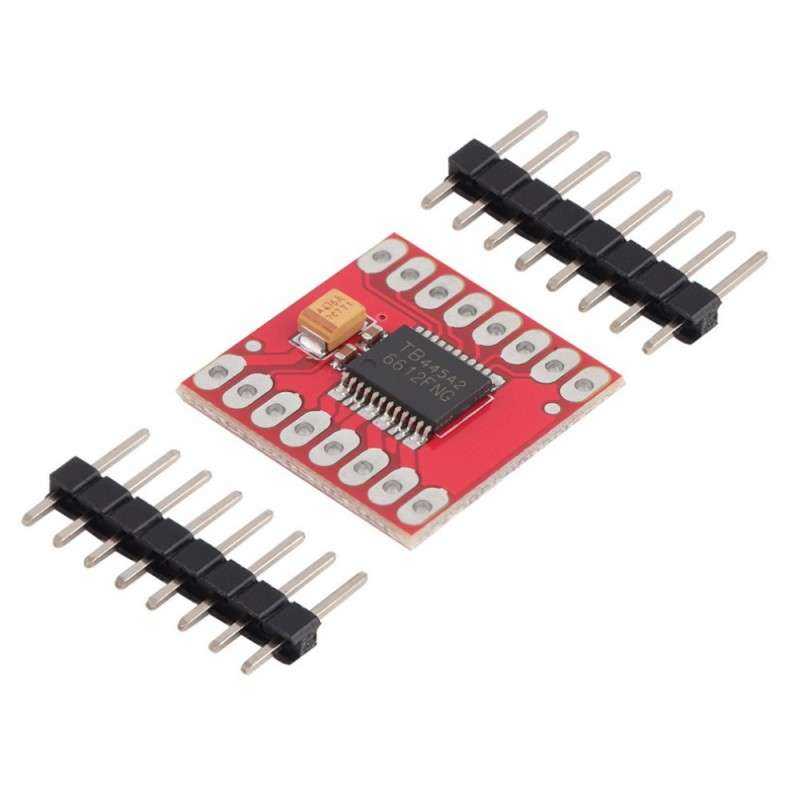

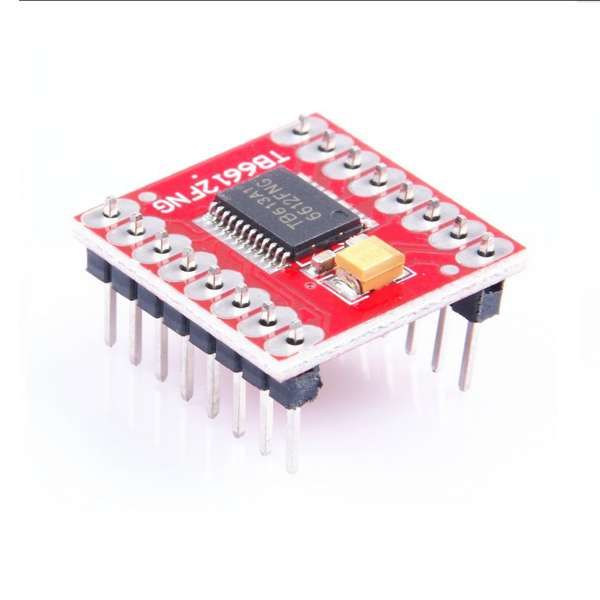

    Board comes with all components installed as shown. Decoupling capacitors are included on both supply lines. All pins of the TB6612FNG are broken out to two 0.1″ pitch headers; the pins are arranged such that input pins are on one side and output pins are on the other.

    Product Contens:
    • TB6612FNG motor driver module
    • Male 0.1" headers

    TB6612FNG Technical Specs:

    • Power supply voltage: VM=15V max, VCC=2.7-5.5V
    • Output current: Iout=1.2A(average) / 3.2A (peak)
    • Standby control to save power
    • CW/CCW/short brake/stop motor control modes
    • Built-in thermal shutdown circuit and low voltage detecting circuit
    • All pins of the TB6612FNG broken out to 0.1" spaced pins
    • Filtering capacitors on both supply lines
    • Size: 2x2cm(approx)
