ST-LINK/V2 (mini), STM Programmers & Debuggers

Product Code
:
18003
Brand / Origin
:
WaveShare
:
Comments (0)
Quantity
:
9
Without Vat
:
355.02 TL
Quantity:

-

+
Same Day Shipping
Orders placed until 5:00 on weekdays and 10:30 on Saturday are shipped the same day.
Add to Favorites
Click here to add this product to your list and review it later.
Technical Service
We are always with you with our experienced staff and advanced support services.
Refund Guarantee
We carry out the process without upsetting you with a 14-day return guarantee.
Add Comment
  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box

  • Description

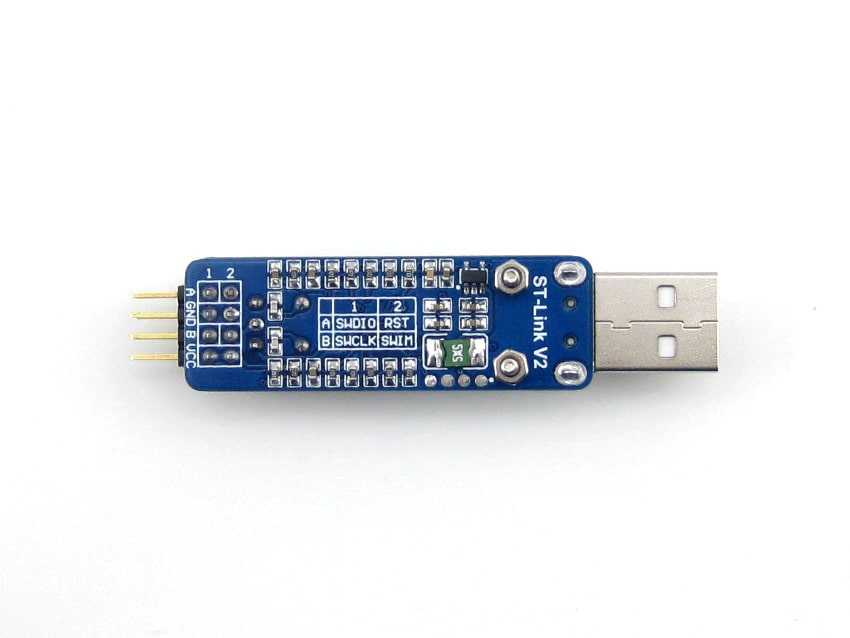

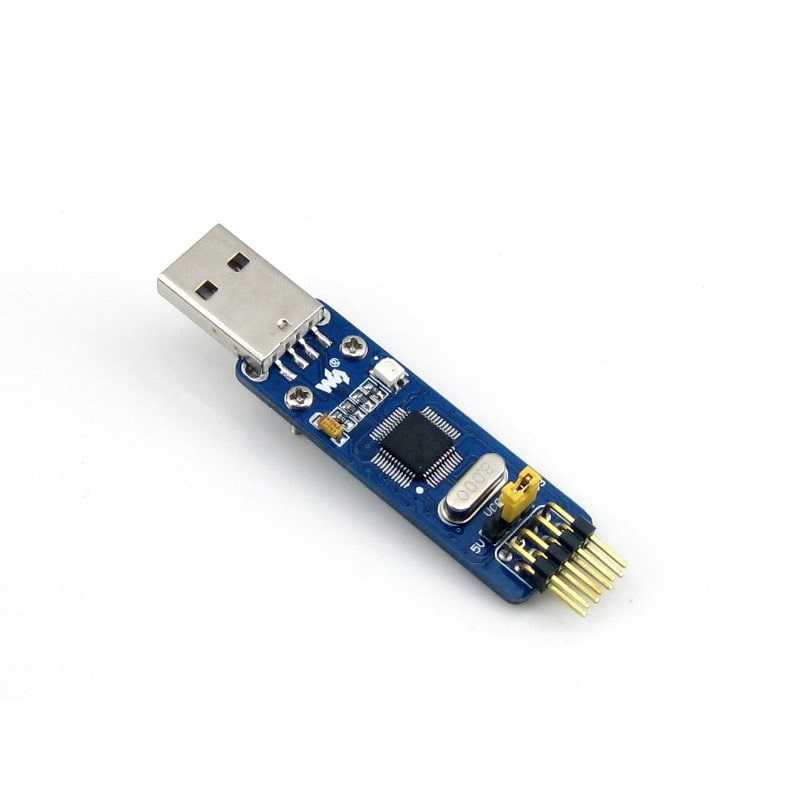

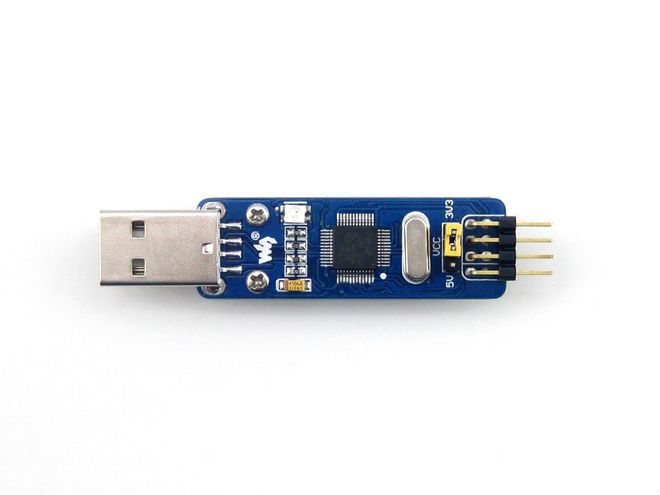

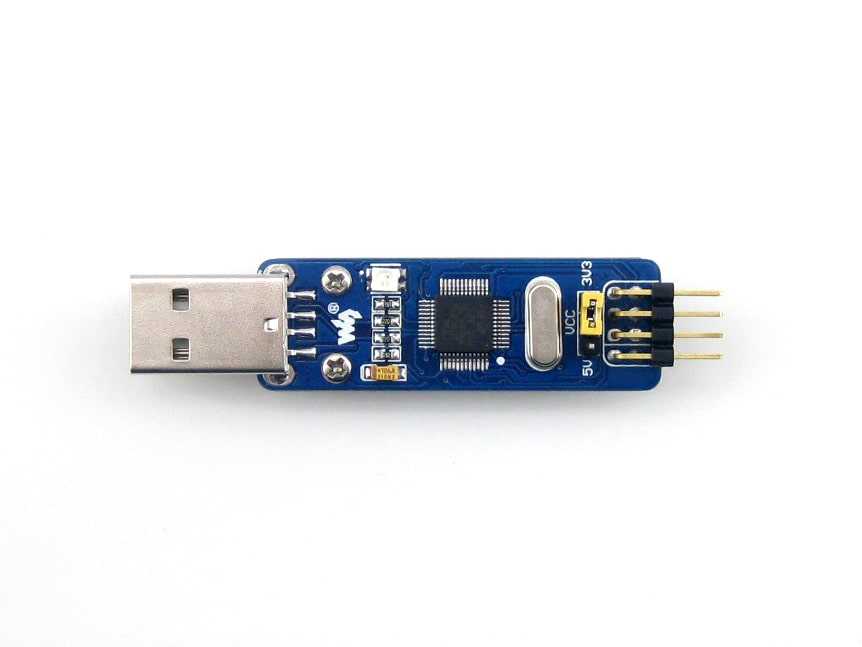

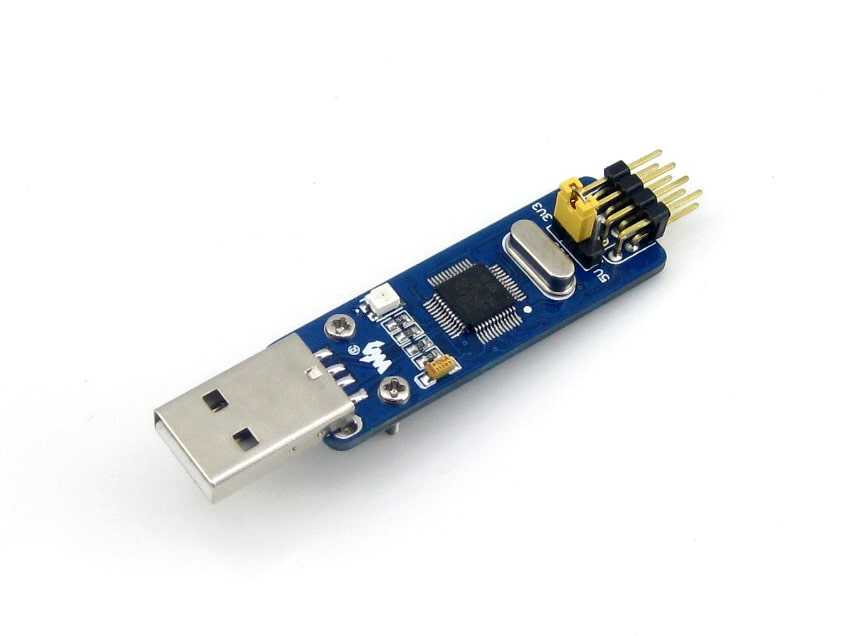

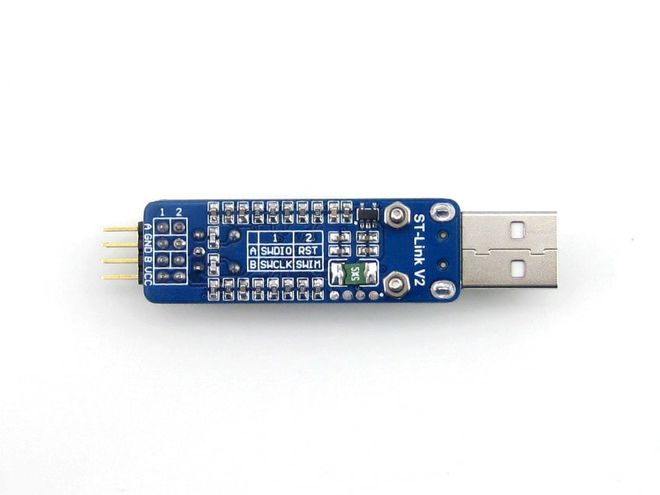

    Mini ST-LINK/V2 on a small single board, an extreme low cost solution for in-circuit debugger/programmer for STM8 and STM32.

    Features

    • Onboard 500mA self-recovery fuse to avoid harming by short circuit
    • Dual voltage output (3.3V/5V), easy for debugging/programming
    • Standard USB interface for direct connection to PC
    • Debugging/Programing performance
      • Debugging : run at full-speed, single-stepped, breakpoints, viewing variables and registers, etc.
      • Programming : supports FLASH ROM, EEPROM, AFR, etc.
      • USB2.0 combined with SWIM/SWD interfaces : quick response for debugging & fast speed for programming
    • Upgradable firmware
      • The firmware is upgradable to support more devices in the future
      • Automatically upgraded
    • Supported software
      • ST-LINK Utility v2.0 (or higher ver.)
      • STVD Version 4.2.1 (or higher ver.)
      • STVP Version 3.2.3 (or higher ver.)
      • IAR EWARM Revision v6.20 (or higher ver.)
      • IAR EWSTM8 Revision v1.30 (or higher ver.)
      • KEIL RVMDK Revision v4.21 (or higher ver.)
      • ATOLLIC
      • TASKING
    • Supported devices
      • All the STM8 devices with SWIM interface
      • All the STM32 devices with SWD interface



    ST-LINK/V2 (mini) Vs ST-LINK/V2 Vs ST-LINK

    COMPARE ST-LINK/V2 (MINI) ST-LINK/V2 ST-LINK REMARKS
    SWD voltage range 1.65V - 3.6V 1.65V - 3.6V 3V - 3.6V ST-LINK/V2 and ST-LINK/V2 (mini) support STM32 low voltage devices
    SWIM voltage range 1.65V - 5.5V 1.65V - 5.5V 1.65V - 5.5V
    Supports SWV NO YES NO For the moment, only STM32 supports SWV while STM8 doesn't
    Debug interfaces 2 2 1 ST-LINK/V2 and ST-LINK/V2 (mini) support STM8/STM32 with separated interfaces
    LED indicator Dual color LED Dual color LED Red LED Dual color LED allows indicating more status
    Fuse YES NO NO Fuse for avoid harming by short circuit

    Connecting with PC

    While connecting the ST-LINK/V2 (mini) to the computer through USB interface, the USB driver is required and should be installed correctly first.

    Click on the link to download : ST-LINK/V2 USB driver for Windows 7, Vista and XP

    Connection with STM8/STM32 applications

    The ST-LINK/V2 (mini) should be connected to the STM8 application via the SWIM interface.

    DEBUGGER PIN TARGET BOARD PIN DESCRIPTION
    VCC MCU VCC STM8 VCC
    SWIM MCU SWIM STM8 SWIM PIN
    GND GND STM8 GND
    RST MCU RESET STM8 RESET PIN

    The ST-LINK/V2 (mini) should be connected to the STM32 application via the SWD interface.

    DEBUGGER PIN TARGET BOARD PIN DESCRIPTION
    VCC MCU VCC STM32 VCC
    SWDIO MCU SWDIO STM32 SWD SWDIO
    GND GND STM32 GND
    SWCLK MCU SWCLK STM32 SWD SWCLK

    Please note that the VCC and GND should be connected correctly to avoid any harm to the ST-LINK/V2 (mini).
