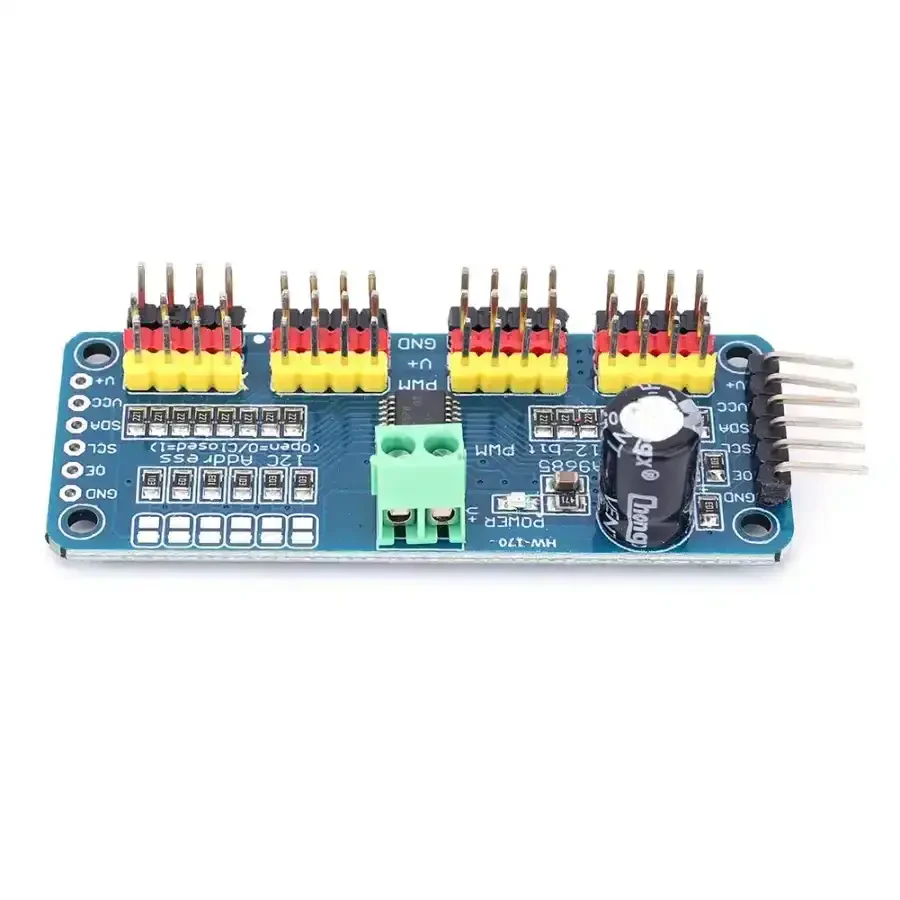

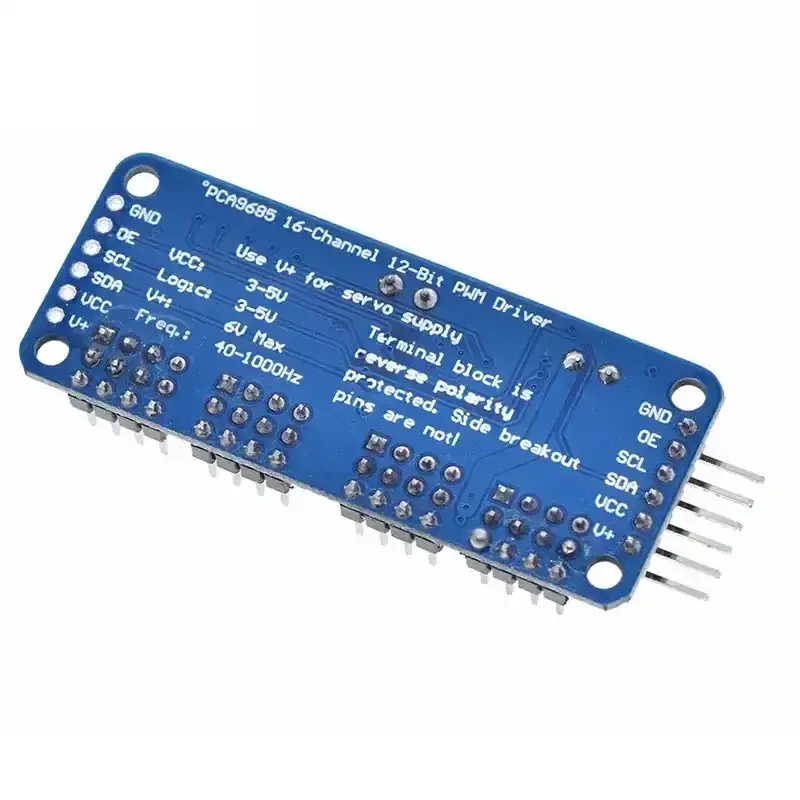

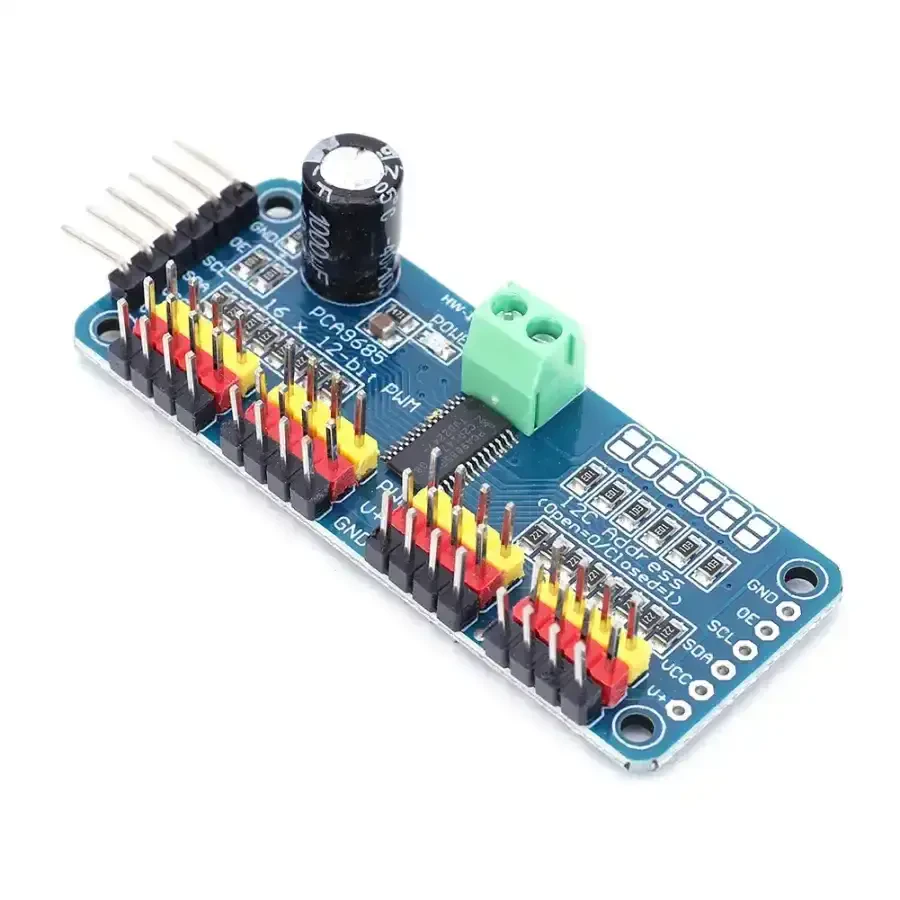

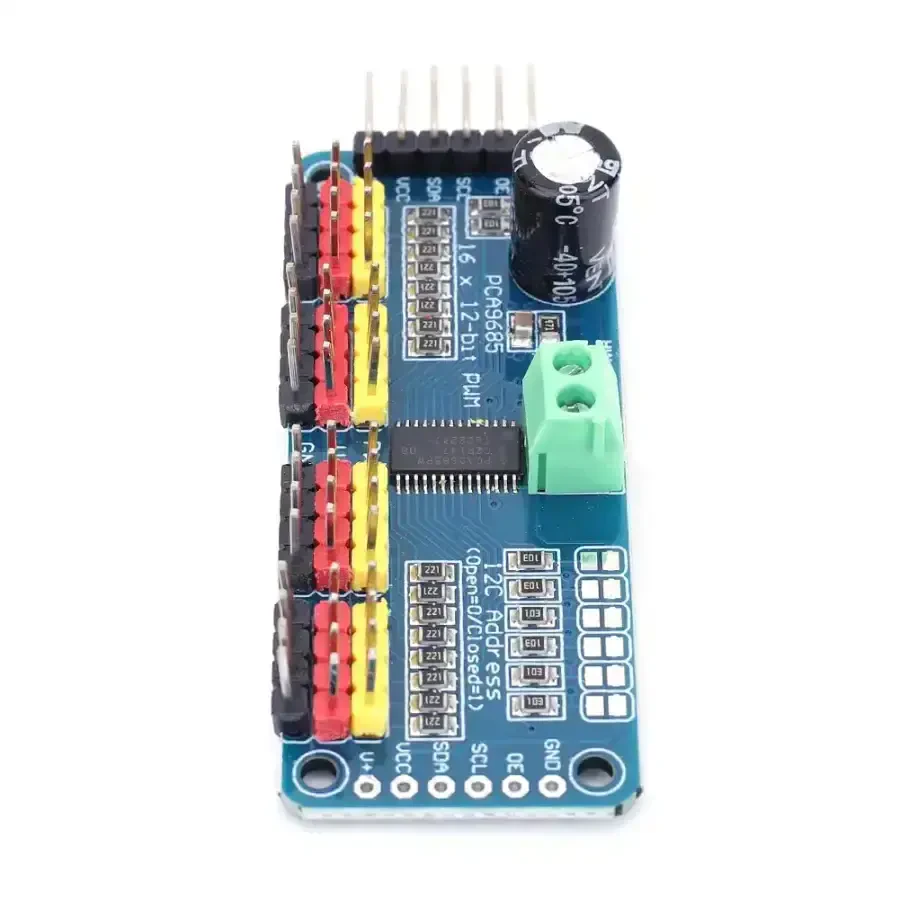

PCA9685 16 Channel I2C PWM/Servo Driver Board(Clon)

Brand
Robotistan
Product Code
15101
Fiyat
: 137.97 TL + VAT
KDV Dahil Fiyat
: 165.57 TL
Money Order Price : 160.60 TL %3  Discount
If you order until SHIP TODAY

This product is clon version of this product. Robotistan recommends to use original one.

Through this board, you can add 16 PWM outputs to your Arduino and any other microcontroller. So you can create servo and LED implementations easily.

Board has 12-bit resolution. Logic levels are 3.3V and 5V. Board uses I2C interface through this, board doesn't occupy so many pins at your microcontroller. Through 6 adress modification solder jumpers you can use boards up to 62 on a single I2C line. Also there is output sequence according to standard servo connectors. Through connection pins which are available at two end of the board, you can butt splice boards or set up your board according to project. Through on board terminal connections, you can supply your board on V+ line. Reverse voltage protection is available

Technical Features:

  • Dimensions except (terminal and header): 62.5 mm x 25.4 mm x 3 mm
  • Weight: 5.5 gr (except terminal and header), 9 gr (including terminal and header)
  • I2C adress: Configurable between 0x60 - 0x80
  • 12-bit resolution, 60 Hz update frequency
  • Configurable PWM frequency up to 1.6 kHz
  • Push-pull or open-drain output options
  • Open-close function with Output Enable pin
  • 220 Ω resistor connected to output as serial for ease LED drive
  • Green LED for situation of power source
