micro:bit Oyun Konsol Eklenti Kartı

Ürün Kodu
:
18294
Marka / Menşei
:
WaveShare
Stok Adedi
:
7
Fiyat
:
86,67 TL + KDV
KDV Dahil Fiyat
:
102,27 TL
Aynı Gün Kargo
Saat 15:00’a kadar yapılan alımlarda aynı gün kargo imkanı
Alışveriş Listeme Ekle
Bu ürünü listenize ekleyerek daha sonra inceleyebilirsiniz.
Yorum Ekle
Ürünle İlgili Öne Çıkan Kampanyalar

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Tavsiye Et
  • Resimler
  • Öneri Kutusu

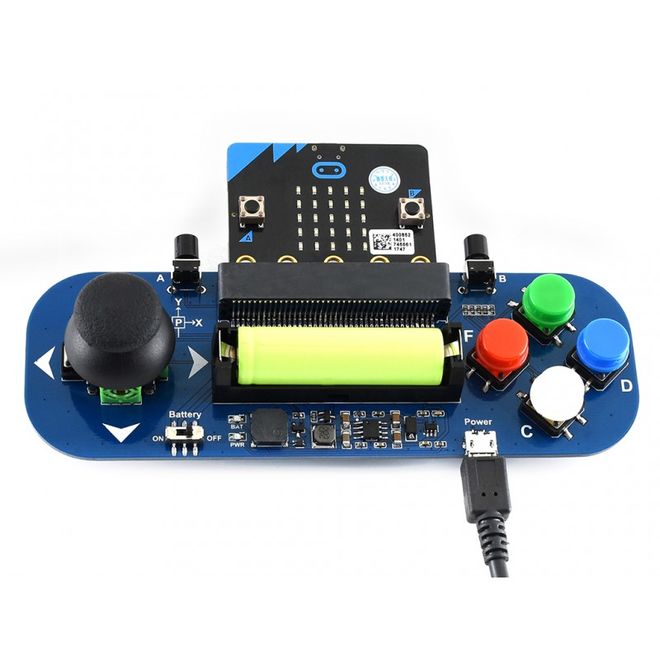

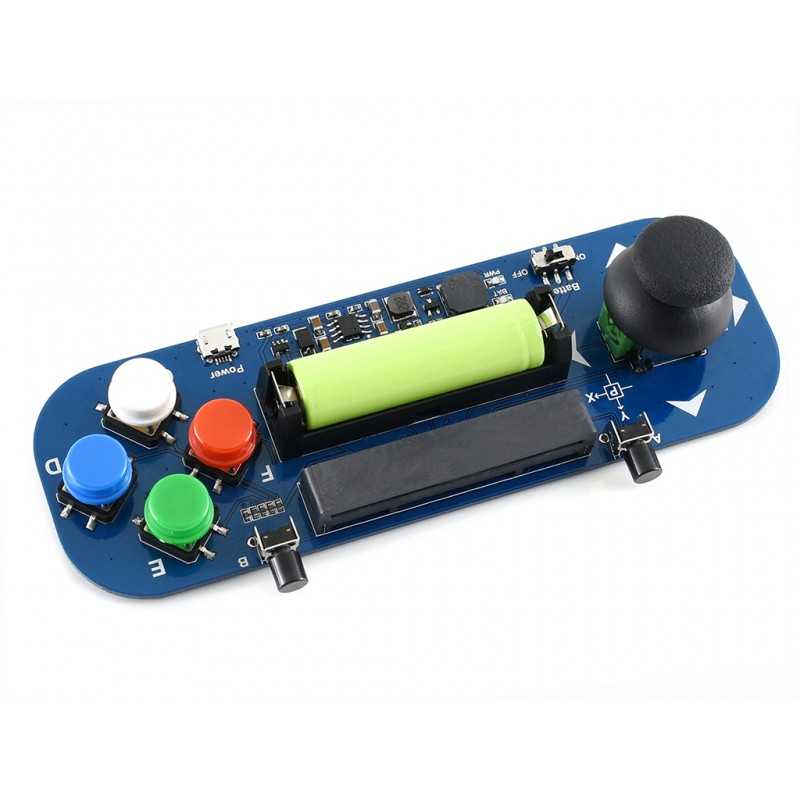

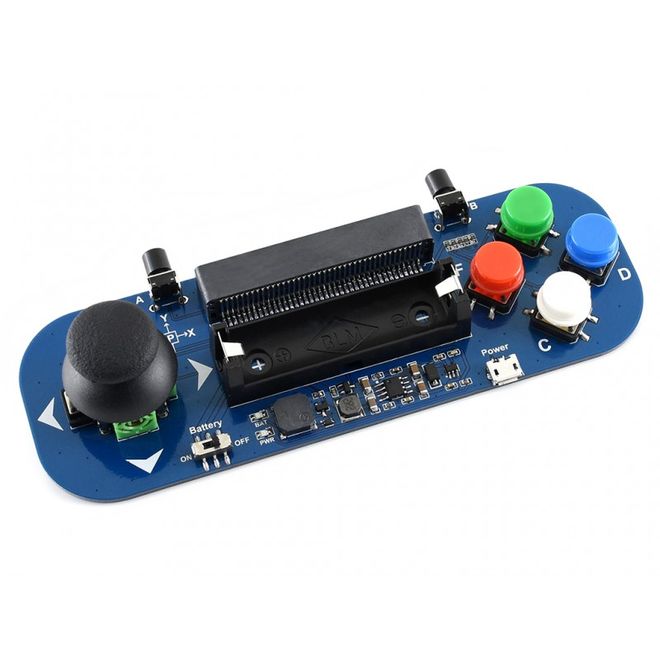

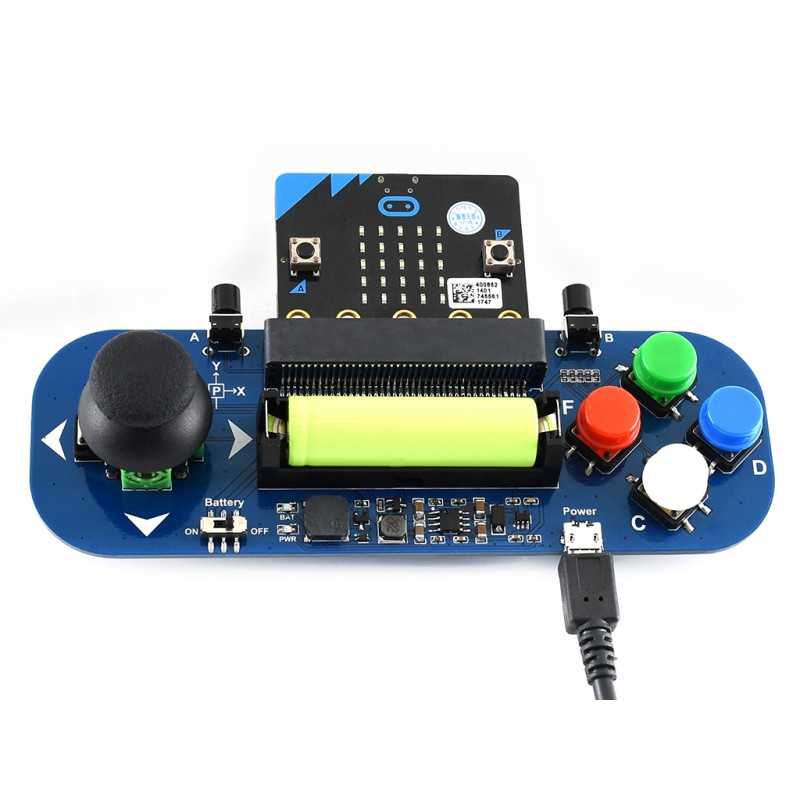

  • This little module adds arcade controls to your micro:bit, makes it possible to turn the micro:bit into a mini game console. There's onboard buzzer to play music and game background effect. It is powered from a 14500 Li-ion battery (not included), conversely, it allows to charge the battery through USB connection.

    Features:

    • micro:bit edge connector, directly pluggable
    • High quality joystick, dual channel analog outputs for precise positioning, one channel digital output for press control
    • Onboard battery and charge circuitry, powered from battery, also charges the battery through USB connection
    • Battery indicator, blinks 1/2/3/4 times indicates the power remains about 25%/50%/75%/100% respectively
    • 4x colorful buttons
    • 2x side buttons, related to the A/B buttons of micro:bit, easy to use
    • Buzzer for playing music and game background effect
    • Comes with development resources (micro:bit graphical demo/python code/user manual, etc.)

    Specifications:

    • Operating voltage: 5V
    • Battery type: 14500 Li-ion
    • Dimension: 150mm x 50mm

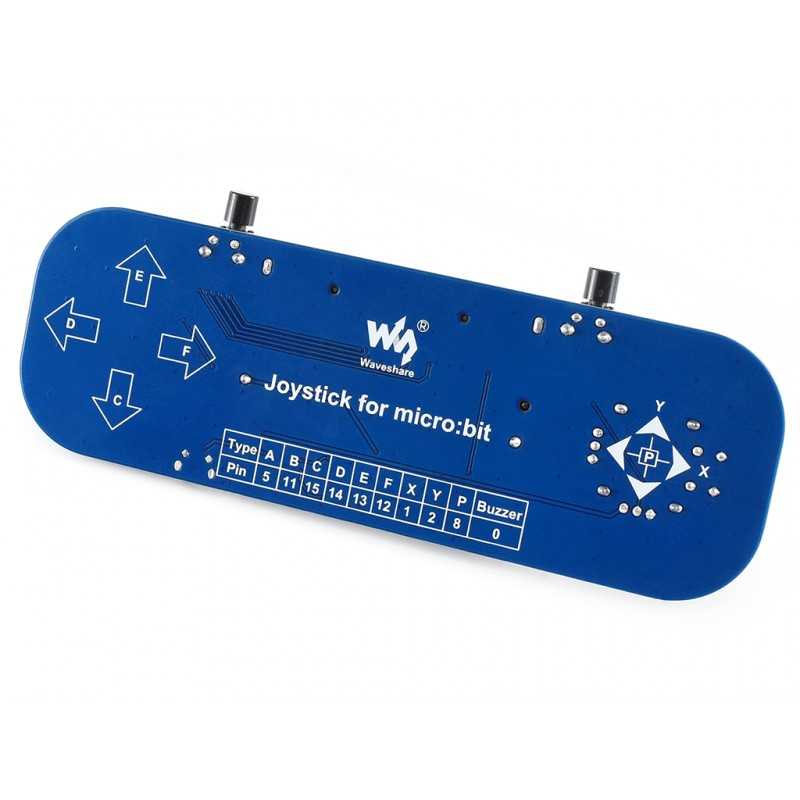

    Pinouts:

    SYMBOL PIN DESCRIPTION
    A 5 Button A
    B 11 Button B
    C 15 Button C
    D 14 Button D
    E 13 Button E
    F 12 Button F
    X 1 Joystick X axis
    Y 2 Joystick Y axis
    P 8 Joystick press
    Buzzer 0 Buzzer

    Dimensions:

    Joystick for micro:bit dimensions

    Documents:
