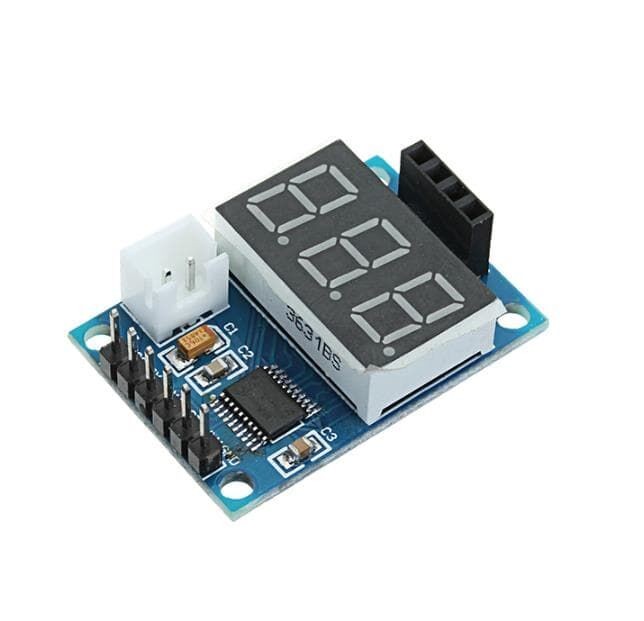

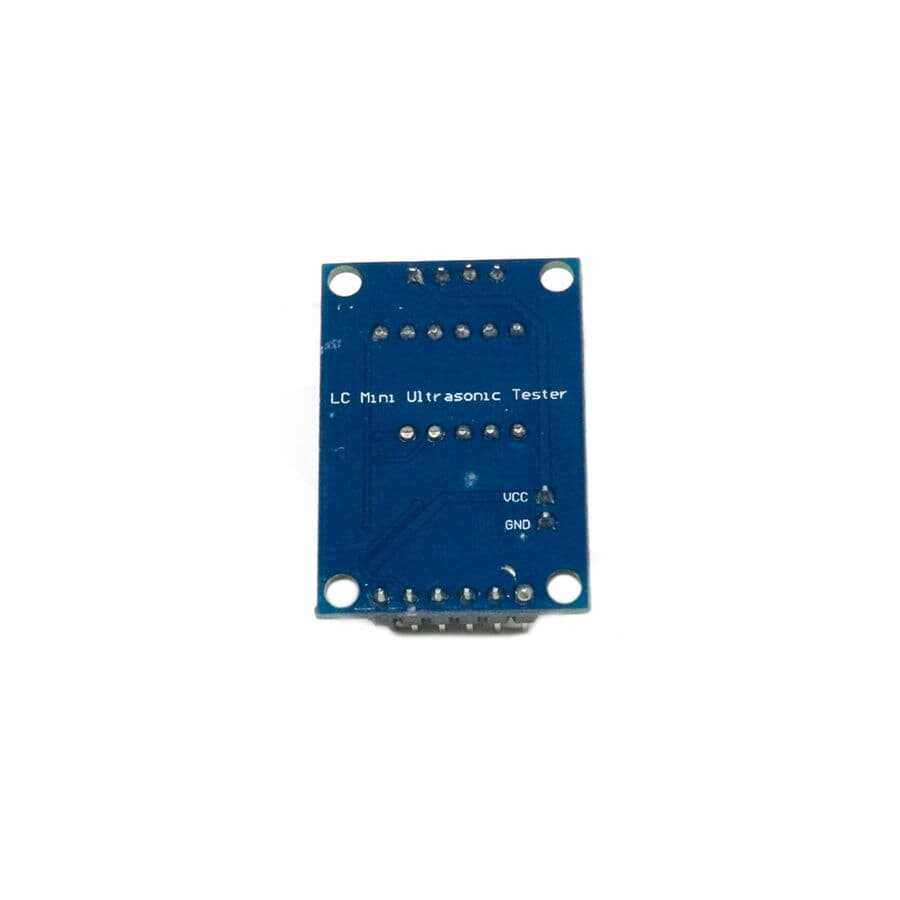

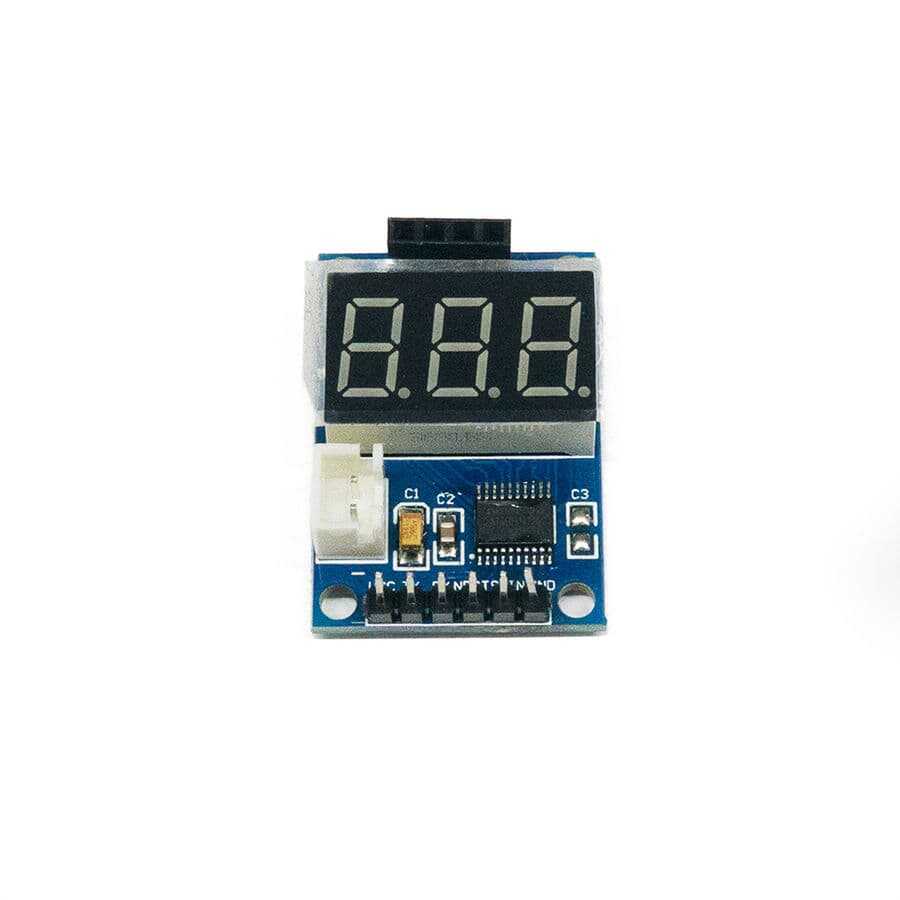

Digital Display Module for HC-SR04 Ultrasonic Distance Sensor

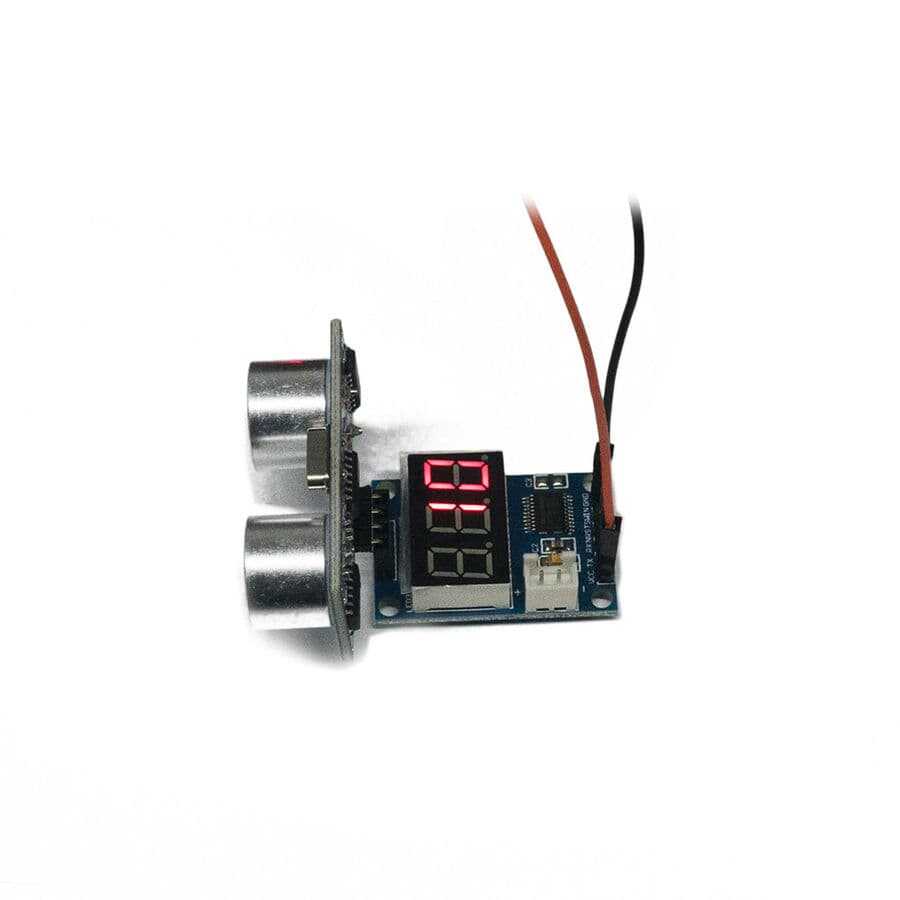

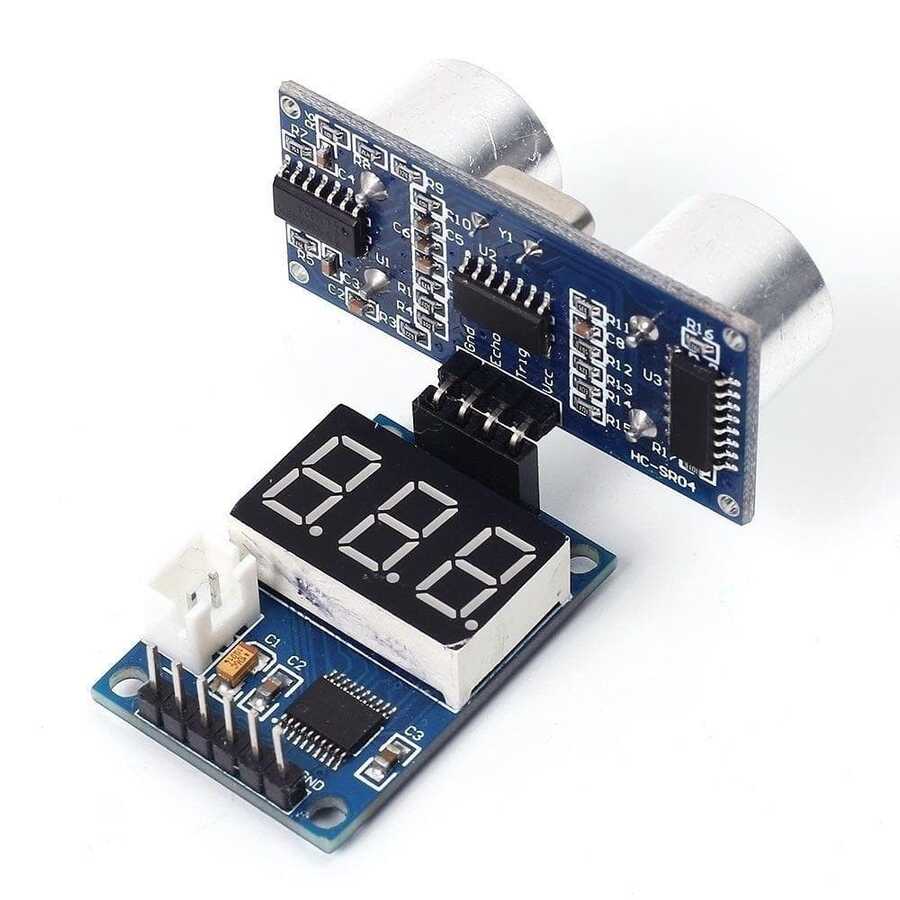

Digital Display for HC-SR04 Ultrasonic Distance Sensor, thanks to this product, which makes the use of ultrasonic distance sensors very easy, you will be able to measure in your projects without the need for any microcontroller. To read distance data in "cm" from the screen on the module, it will be sufficient to insert the pins of your ultrasonic distance sensor into the appropriate slots on the module after applying 5V/DC voltage to the module. If you want to use the read data in an external part, you can read and use this data from the pins on it. There is no distance sensor in the package. You can find the HC-SR04 Ultrasonic Distance Sensor here.




6 (2).jpg (63 KB)

Digital Display Module Specifications for HC-SR04 Ultrasonic Distance Sensor:

  • Microprocessor Model: STM8S103
  • Input Voltage: 5V/DC
  • Unit of Measure: CM
  • Measuring Range: 3cm - 400cm
  • Display Type: Digital Led Display




Similar Products:

Products that can be used together:

Useful Links:

20038
Digital Display Module for HC-SR04 Ultrasonic Distance Sensor
Digital Display Module for HC-SR04 Ultrasonic Distance Sensor
:
100.79 TL + VAT
:
120.94 TL
