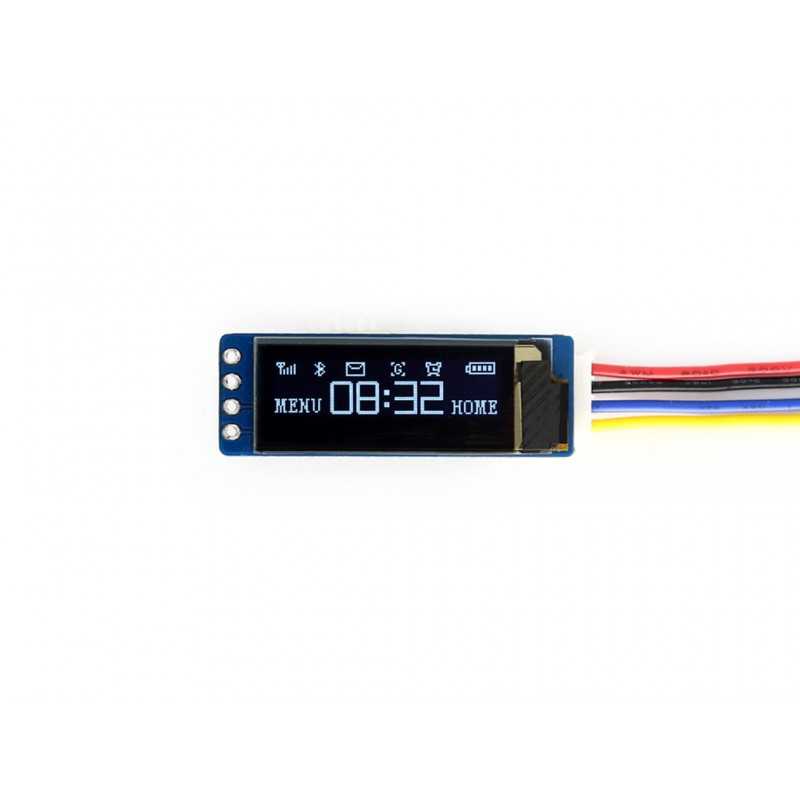

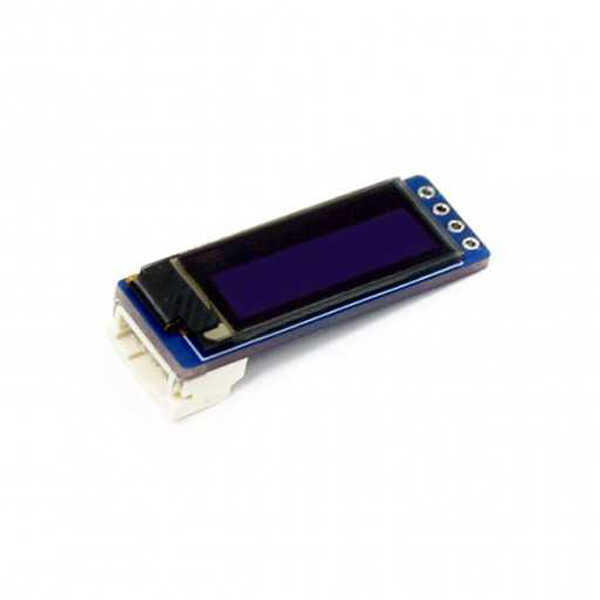

  • This is a general OLED display Module, 0.91inch diagonal, 128x32 pixels, with embedded controller, communicating via I2C interface.

    Features:

    • 0.91inch small form factor
    • 128x32 high resolution
    • I2C interface, requires only two signal pins
    • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

    Specifications:

    • Driver: SSD1306
    • Interface: I2C
    • Display color: White
    • Resolution: 128x32
    • Viewing angle: >160°
    • Operating voltage: 3.3V / 5V
    • Dimension: 36 x 12.5 (mm)

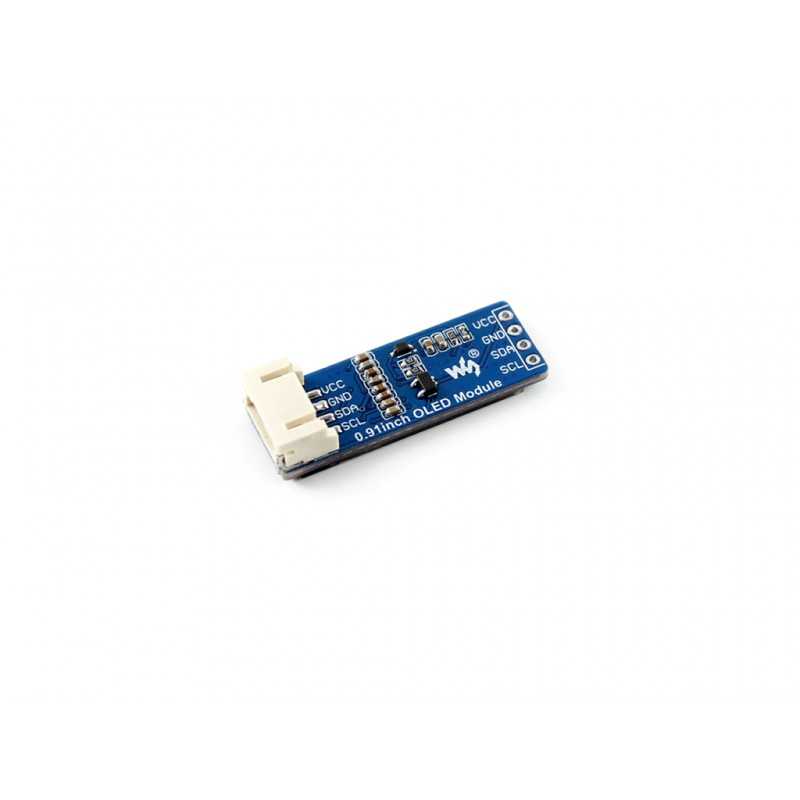

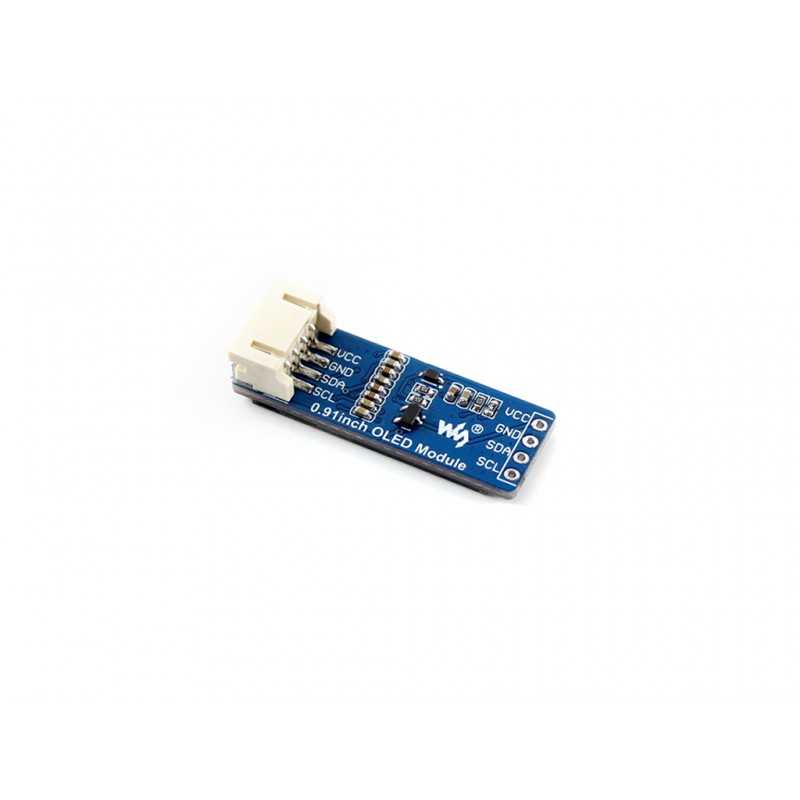

    Interface:

    SYMBOL DESCRIPTION
    VCC Power (3.3~5V input)
    GND Ground
    SDA Data input
    SCL Clock input

    Dimensions:

    0.91inch OLED Module dimensions

    Development Resources:



    PACKAGE CONTENT:

    1-0.91inch OLED Module x1
    2-PH2.0 4Pin x1
