Grove - Yellow LED Button

Grove - Yellow LED Button

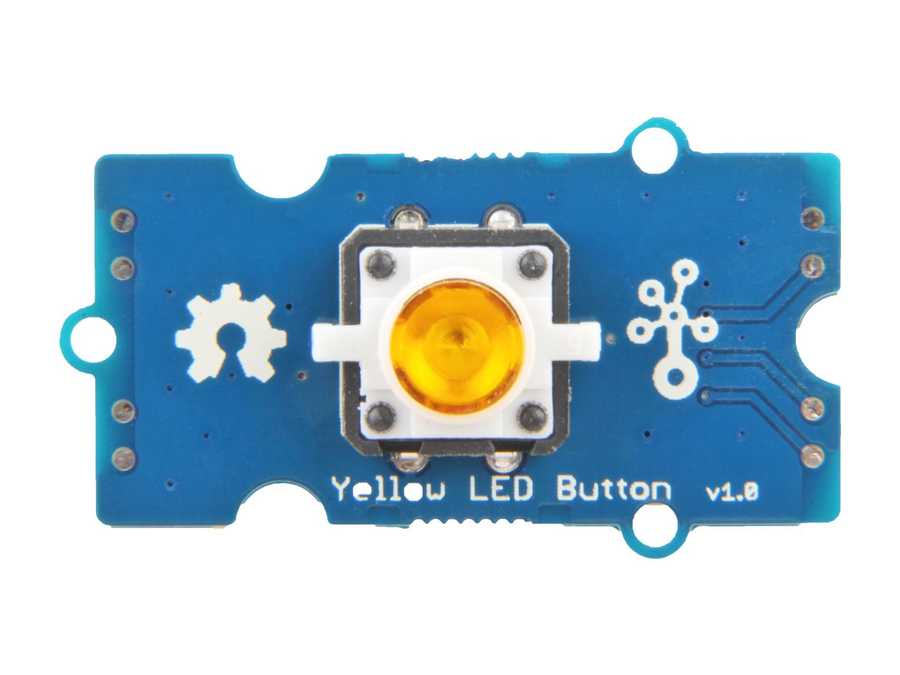

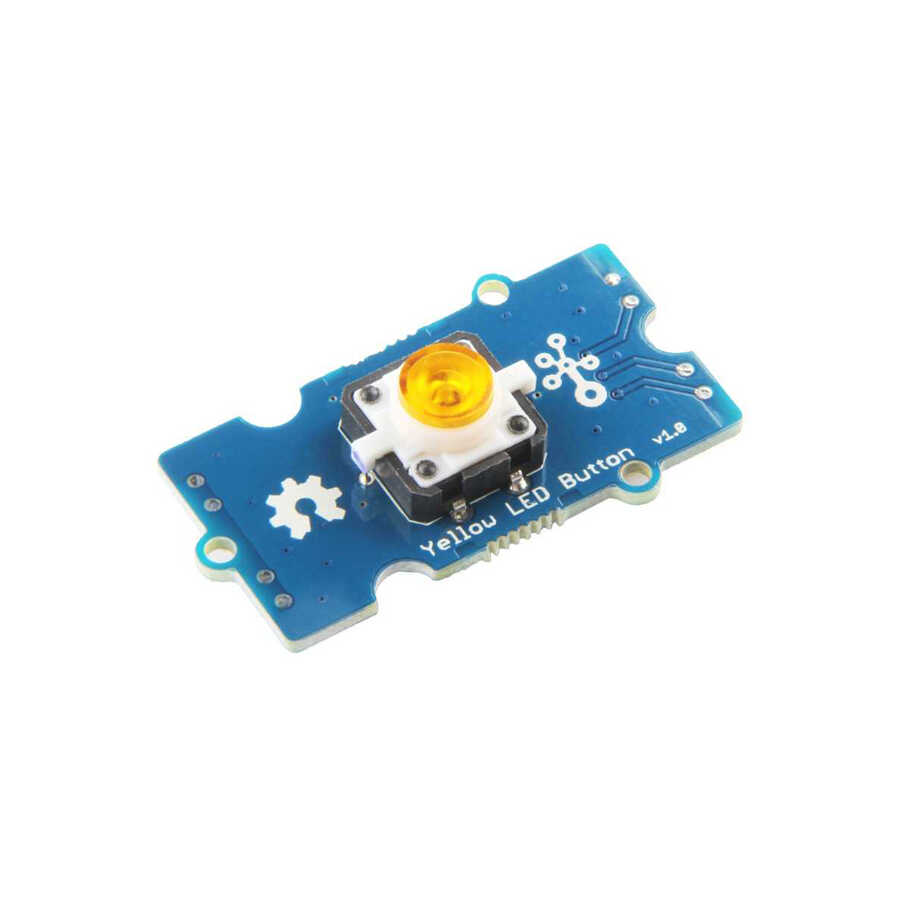

Grove LED buttons are available in 3 different main colors: yellow, blue, and red .

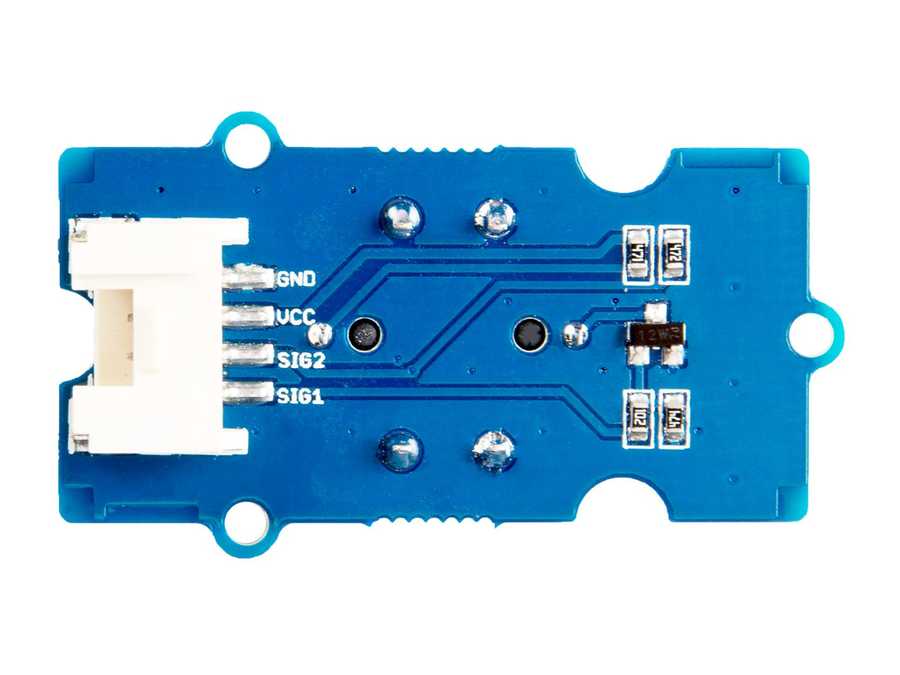

There is a 4-pin socket on the LED button module. 2 of these pins are used to supply power. It can operate with 5V or 3.3V. Of the other two pins, one is used for the input signal and the other for the output signal.

The LED on the button can be controlled via the input pin (SIG1). LED control is performed with an N-Channel MOSFET. Although the LED is initially off, it becomes active when a HIGH value is sent from the signal pin.

The output pin (SIG2) is designed as normally closed. Therefore, while a HIGH value is read from the pin when the button is not pressed, a LOW value is read when the button is pressed.

Grove - Yellow LED Button Technical Specifications

• Operating Voltage: 3.3 / 5 V
• No-load Operating Life: 100,000
• LED Current: 50mA
• Press Resistance: <100mΩ
• Idle Resistance: >100MΩ

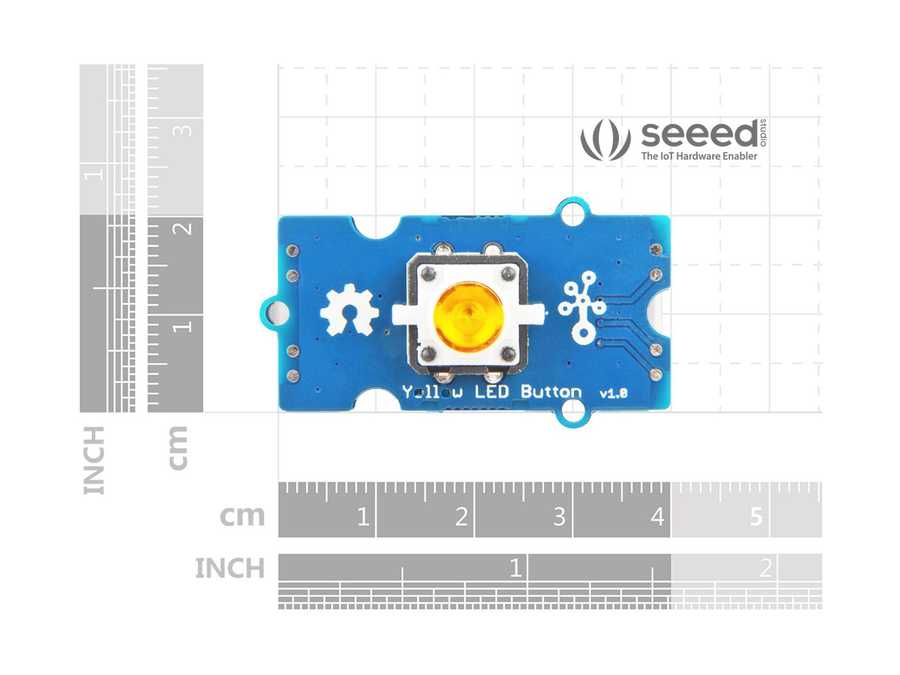

• Board Size: 40x20x13mm
• Weight: 4.3 g

Products That Can Be Used Together:

• Grove Base Shield V2 (compatible with Arduino®)
• Grove Base Shield for NodeMCU
• Particle Photone Grove Base Shield
• Other Grove Products
• Development Boards Based on Arduino®
• Original Arduino® Boards

Documents / Useful Links:

• Wiki Page
• Arduino® IDE
• Grove-LED Button Eagle file
• Grove Projects
• LED Button Example Project Code
