Particle Photone Grove Base Shield

Ürün Kodu
:
18512
Marka / Menşei
:
SeeedStudio
Miktar
:
10
Fiyat
:
48,55 TL + KDV
KDV Dahil Fiyat
:
57,29 TL
Aynı Gün Kargo
Saat 15:00’e kadar yapılan alımlarda aynı gün kargo imkanı
Alışveriş Listeme Ekle
Bu ürünü listenize ekleyerek daha sonra inceleyebilirsiniz.
Yorum Ekle
Ürünle İlgili Öne Çıkan Kampanyalar

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Tavsiye Et
  • Resimler
  • Öneri Kutusu
  • Grove Base Shield for Photon is an expansion board which incorporated the standard Grove interfaces to let you build more powerful and intelligent applications with richer and cost-effective Grove functional modules. It gets three digital ports, two analog ports, two I2C ports and one UART port. It’s a plug-and-play shield designed to accelerate prototyping dramatically.

    Attention

    This shield can not work with Particle Mesh, only compatible with Particle Photon

    Features

    • Compatible with Photon
    • Standard Grove interfaces to connect to a large family of Grove sensors and actuators
    • I2C, UART ports integrated



      Specification

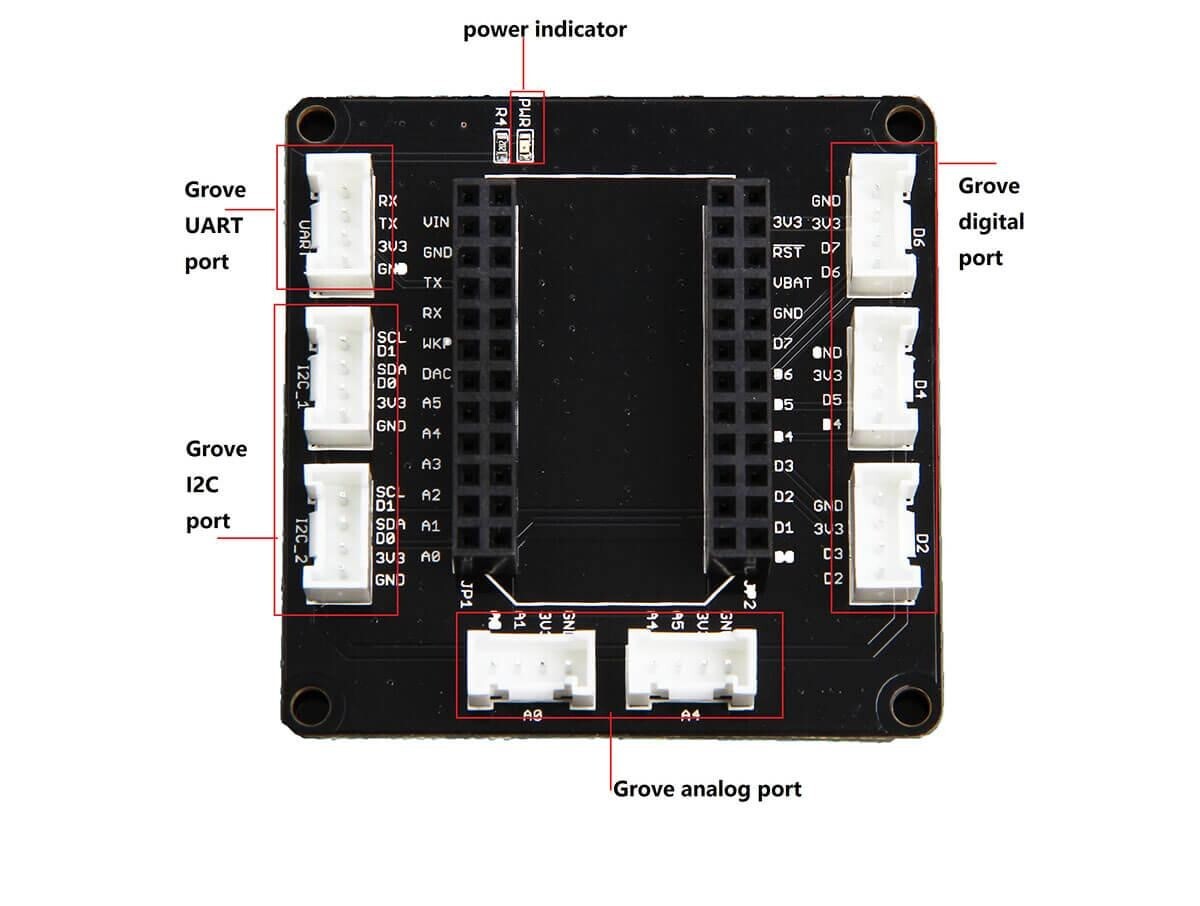

      • Grove Ports: 3 digital ports, 2 analog ports, 2 I2C ports and 1 UART port.

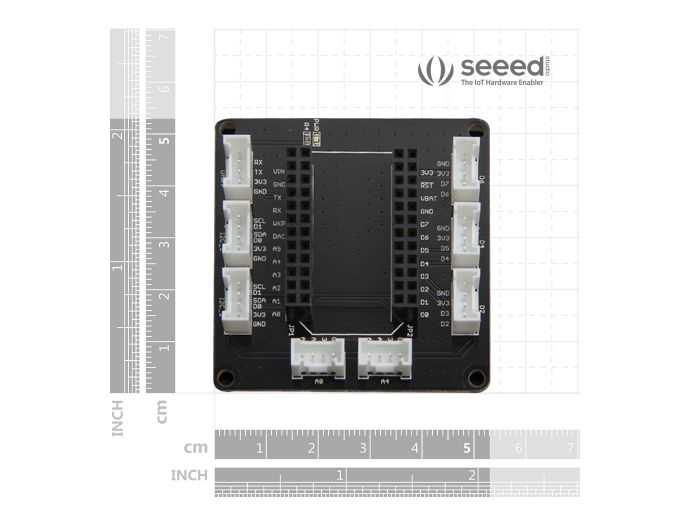

      • Dimensions: 53 x 53 mm
      • Weight: 18g



        Application ideas

        • Compact IoT applications such as smart router.


        Technical details

        Dimensions 65mm x78mm x11.8mm
        Weight G.W 19g
        Battery Exclude

        Documents
