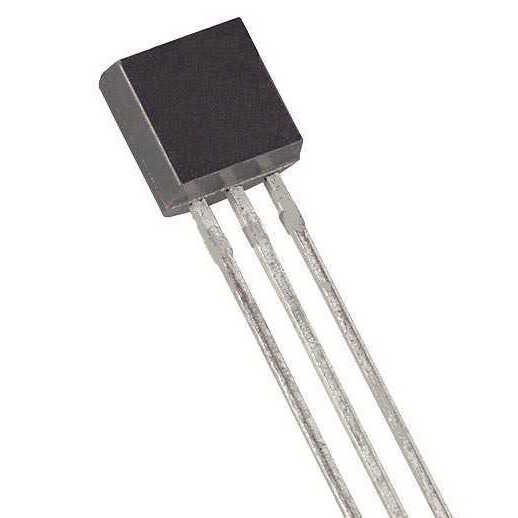

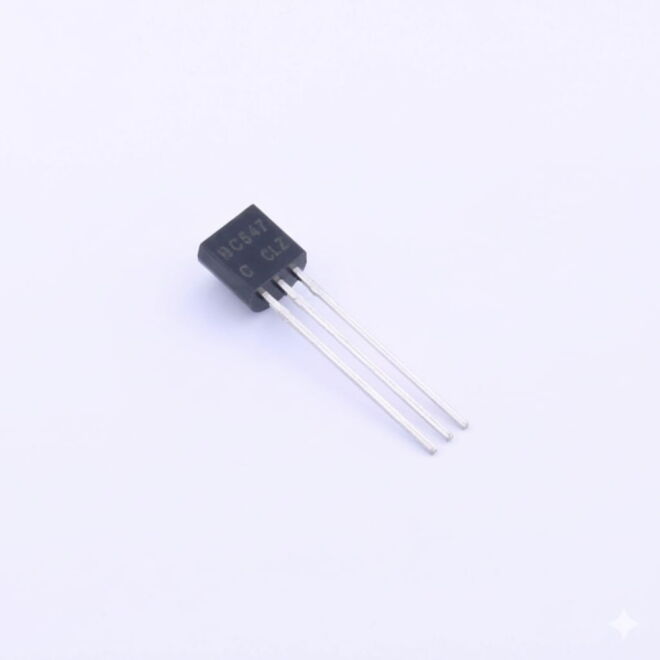

BC547 - TO92 Transistor

A transistor is a semiconductor circuit element that we can use to amplify or switch small electrical signals. We can control the electrical signal applied to one of the legs (B-Base) of a transistor with 3 or more legs and the electrical current between the other legs (Collector-C and Emitter-E). This transistor can be used in your Flip-Flop circuits, low power amplifier circuits, switching It is an NPN transistor with TO-92 cover that you can use in your circuits and many similar projects. You can use it in your Arduino and other microcontroller projects.

Flip-Flop Circuit Diagram:

BC547 TO-92 Specifications:

• Model: BC547 TO-92
• Type: NPN
• Max. Current: 100mA
• Max. Voltage: 45V



Useful Links:

• What is a Transistor? What Does It Do? And for our blog post about Transistor Types, click here.

• Datasheet
