Feetech FS90R Continuously Rotary Micro Servo Motor

Product Code
:
12811
Brand / Origin
:
Feetech
Quantity
:
10+
Without Vat
:
89.54 TL
Quantity:

-

+

Same Day Shipping
Orders placed until 5:00 on weekdays and 10:30 on Saturday are shipped the same day.
Add to Favorites
Click here to add this product to your list and review it later.
Technical Service
We are always with you with our experienced staff and advanced support services.
Refund Guarantee
We carry out the process without upsetting you with a 14-day return guarantee.
Add Comment
  • Features
  • Payment Options
  • Comments (1)
  • Recommend
  • Images
  • Suggestion Box

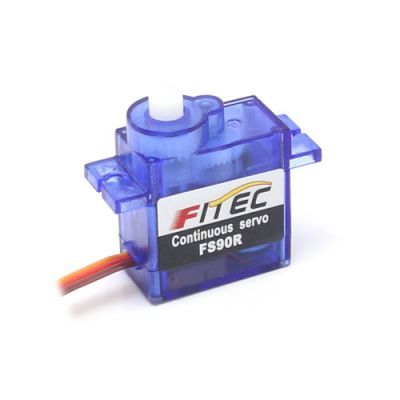

  • Feetech FS90R is a micro servo motor size continuous rotary servo motor.

    Feetech FS90R provides 130 rpm speed and 1.5 kg/cm torque at 6 V. It ıs fully compatible with Futaba controllers, you may conveniently use in your projects or RC vehicles. Additionally it works with PWM signal can be generated by a microcontroller. This measn you can use is in your robotics projects too.

    FS90R converts rotating speed continuously from standard servo position signals. This servo motor has 1.5 ms stop position. It is possible to adjust this value via the pots on the motor. If the motor recieves a signal has a wider signal than the stop position, the servo motor will roteate on clockwise, if not, anti - clockwise. Wider signal amplitude will cause the speed to be increased.

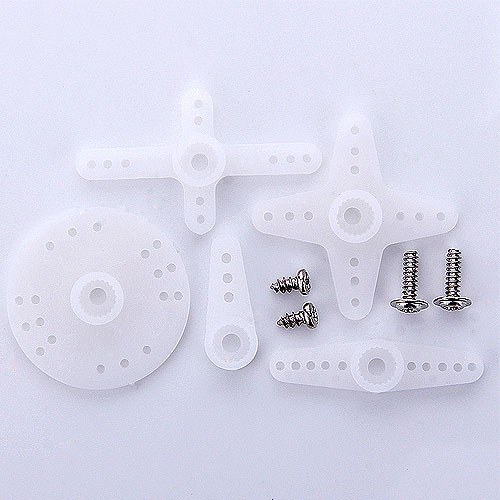

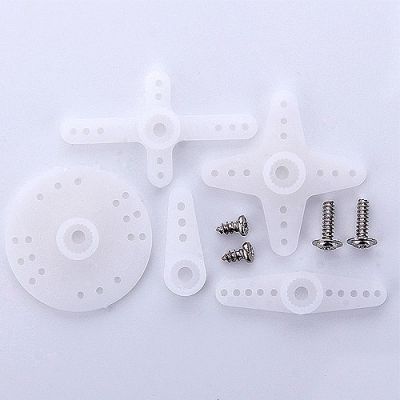

    It has a plastic gear box. The servo comes with servo horns and the other additional parts.

    Technical Details:

    • Size: 23.2 mm x 12.5 mm x 22 mm
    • Weight: 9 g
    • Speed at 6 V: 130 Rpm
    • Compulsion Torque: 1.5 kg/cm
    • Cable Lenght: 28 cm
    Features
    Gear Type
    :
    Plastic
    Torque
    :
    0-5 kg/cm
    Digital/Analog
    :
    Analog
    Operating Voltage
    :
    4.8-6.0V
    Rotation
    :
    Continuous (360°)
    Speed
    :
    0.06 - 0.12 sec/60°
