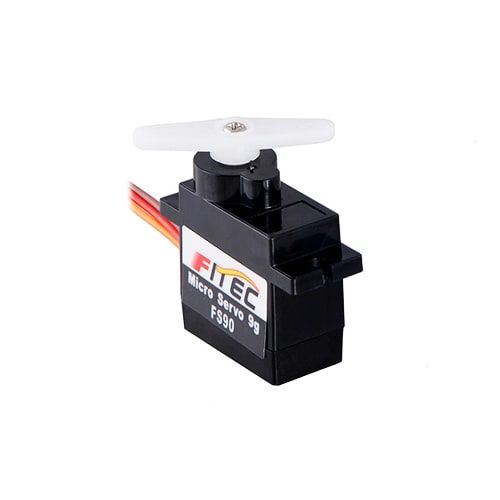

FEETECH FS90-FB Micro Servo with Position Feedback

Product Code
:
18198
Brand / Origin
:
Feetech
Quantity
:
8
Without Vat
:
52.49 TL
Quantity:

-

+

Same Day Shipping
If you purchase before 3pm, your products will ship at the same day. Except saturday and sunday
Add to Favorites
You can add this product on your list and check it later.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box
  • This version of the FS90 micro servo from FEETECH is specially modified to provide access to the feedback potentiometer through a fourth (green) wire, allowing you to directly measure the position of the output. This extra information enables more complex robotics applications, such as determining when the servo has reached its target, detecting when the output is blocked, or implementing your own higher-level closed-loop position control.

    Key specs at 6 V: 0.10 sec/60°, 21 oz-in (1.5 kg-cm), 13 g.

    Overview

    The FS90-FB is a specially modified version of FEETECH’s FS90 micro analog servo that provides access to the feedback potentiometer through a fourth (green) wire, which makes it possible to directly measure the output angle. With this extra information, you can determine when the servo has reached its target position (or detect if something is interfering with its ability to get there). This feedback also enables more complex closed-loop control of the servo from your main controller.

    Like the FS90, the FS90-FB works with standard RC servo pulses, providing a running angle of approximately 120° over a servo pulse range of 900 µs to 2100 µs. As with most servos, the pulse range can be expanded to achieve an expanded operating angle, but the limits of this are not specified by FEETECH. The feedback voltage varies linearly over this range by a couple of volts.

    The servo signal, power, and ground are provided through an extra-long 3-wire servo cable that is terminated with a standard JR-style connector, which is Futaba-compatible. The feedback is accessible through a separate green wire that is terminated like our female premium jumper wires and works with standard 0.1″ male header pins. These cables are approximately 15″ (38 cm) long (which is almost twice as long as the cables on the standard FS90).

    18198-2

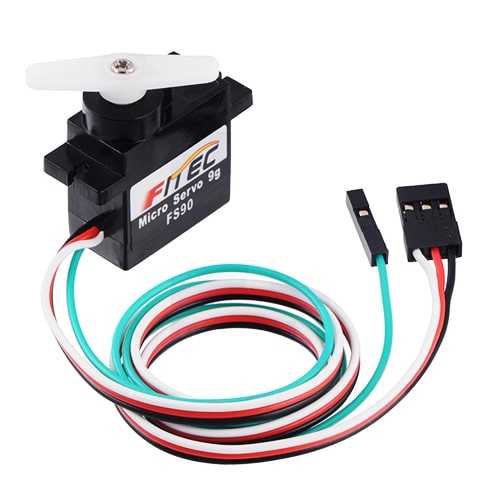

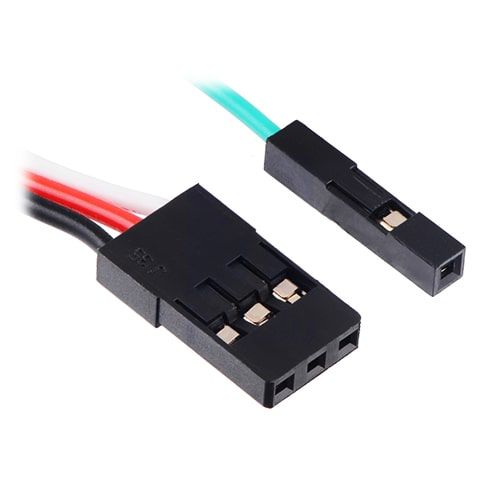

    Servo and feedback connectors on the FEETECH servos with position feedback.



    For more information about this servo, see the FS90 datasheet (69k pdf) (please note that this is the datasheet for the standard FS90, so it does not include any information about the special feedback modification, and the specified cable length does not apply).

    The following picture shows an example of the hardware that might be included (actual hardware could vary):

    18198-1



    Dimensions:

    Size: 23.2 × 12.5 × 22 mm
    Weight: 13 g

    General specifications:

    Digital?: N
    No-load current @ 6V: 200 mA
    Stall current @ 6V: 600 mA1
    Speed @ 6V: 0.10 sec/60°
    Stall torque @ 6V: 1.5 kg·cm
    Speed @ 4.8V: 0.12 sec/60°
    Stall torque @ 4.8V: 1.3 kg·cm
    Lead length: 15 in
    Hardware included?: Y

    Notes:

    This value came from our tests. It is not specified by the manufacturer and therefore could change without notice. Stalling should generally be avoided as it can damage the motor and gears.
