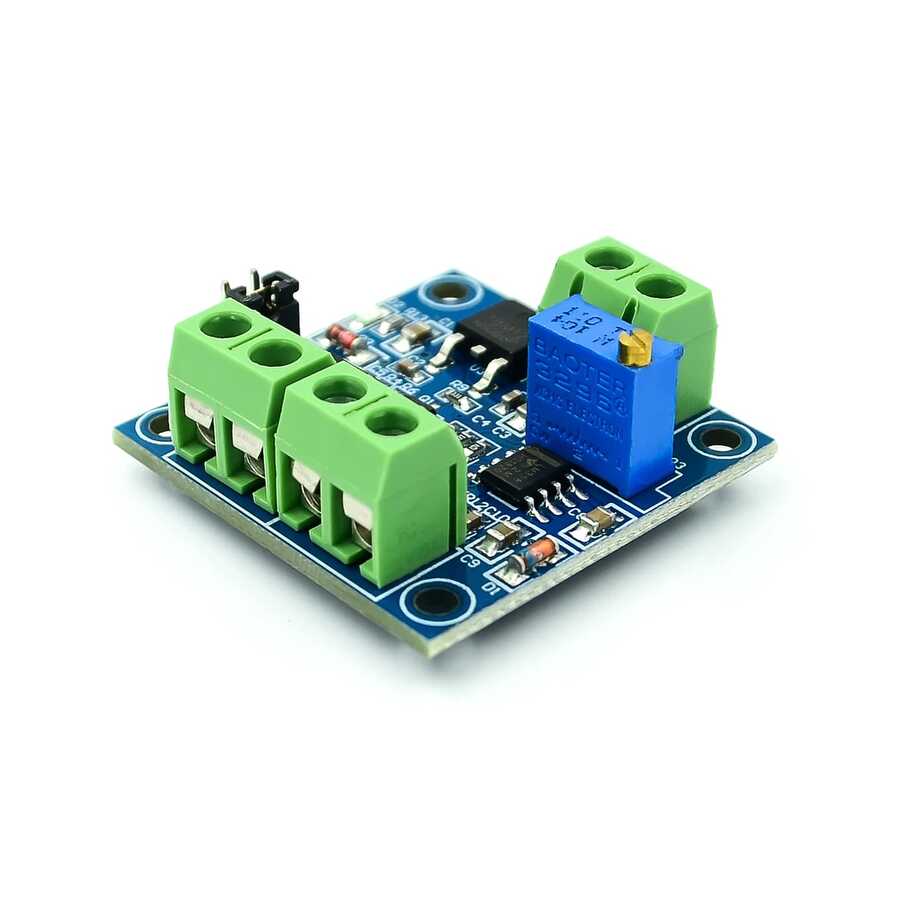

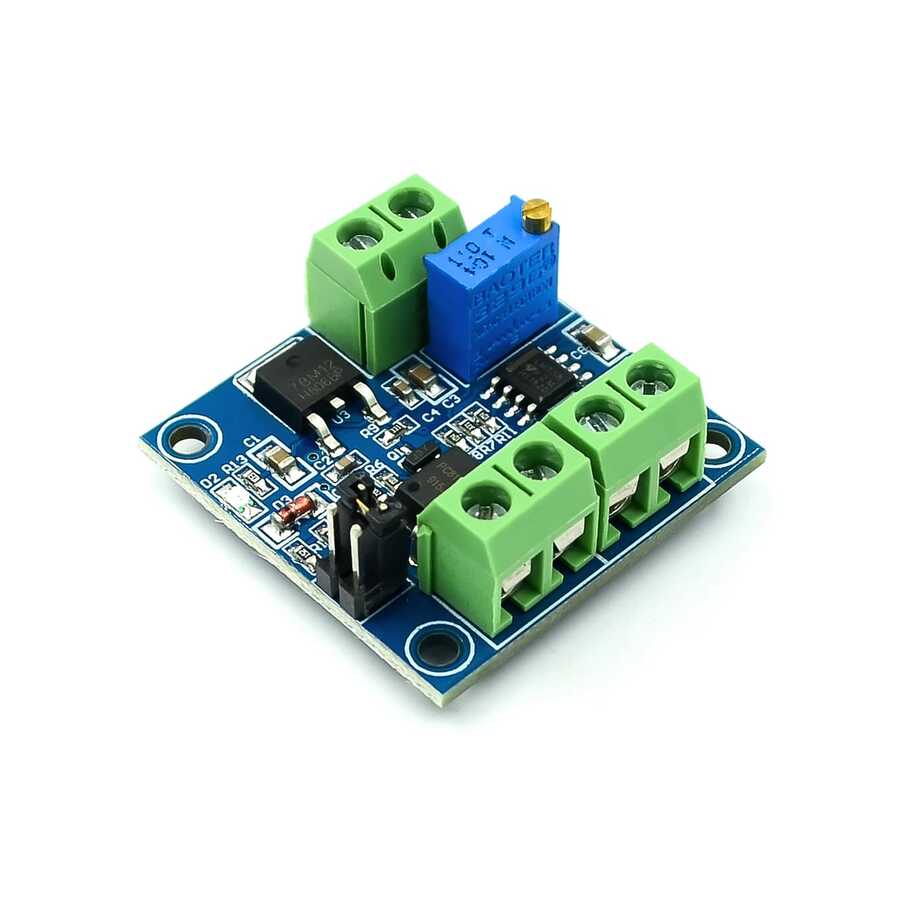

Voltage Converter Module - Digital to Analog Signal PWM Adjustable Power Module
This converter module converts PWM digital signals to analog signals "0V to 10V". It can be used as a switching element in industrial panels like PLC. Thanks to its small size and compact design, it has an easy use and installation feature.
Voltage Converter Module Specifications:
- Operating Voltage: 12-30V/DC
- PWM Receiver Frequency: 1-3KHz
- Conversion Range: PWM 0%-100% - 0-10V
- Precise Adjustment Opportunity with Built-in Potentiometer
- Embedded MCU Technology
Connection Style:

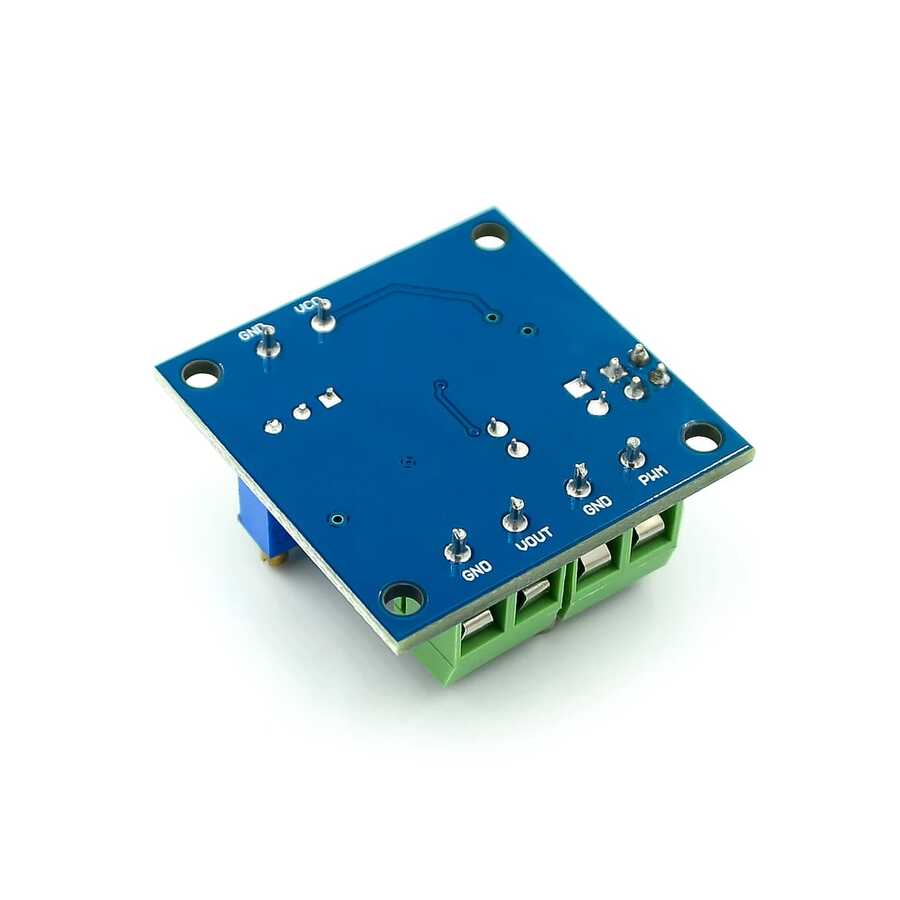

Pins are indicated in order.
- GND Pin Connection: GND
- VCC Pin Connection: 12-30V/DC
- GND Pin Connection: GND
- VOUT Pin Connection: 0-10V Output End
- GND Pin Connection: "-" PWM Input Signal
- PWM Pin Connection: "+" PWM Input Signal
