FEETECH Ultra-High-Torque, High-Voltage Digital Giant Servo FT5335M-FB with Position Feedback

Product Code
:
19326
Brand / Origin
:
China
Quantity
:
0
Without Vat
:
592.63 TL
Discount Price
:
503.82 TL
%15
Out of stock Alert when in stock
Same Day Shipping
Orders placed until 5:00 on weekdays and 10:30 on Saturday are shipped the same day.
Add to Favorites
Click here to add this product to your list and review it later.
Technical Service
We are always with you with our experienced staff and advanced support services.
Refund Guarantee
We carry out the process without upsetting you with a 14-day return guarantee.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box

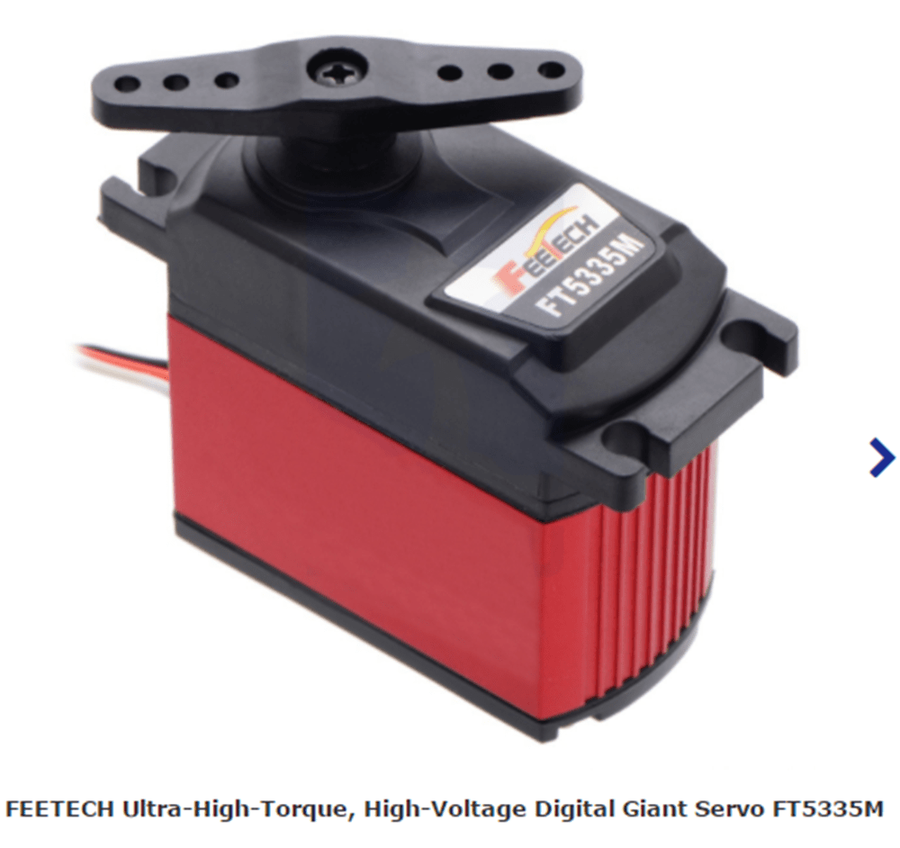

  • FEETECH Ultra-High-Torque, High-Voltage Digital Giant Servo FT5335M-FB with Position Feedback

    This giant-scale digital servo can deliver twice the torque of our strongest standard-size servo, offering up to 550 oz-in at 7.4V or 480 oz-in at 6 V. This torque requires significant power: the FT5335M can draw bursts of current over 9 A at 7.4 V, and unlike typical hobby servos, has an operating voltage range of 6 V to 7.4 V.

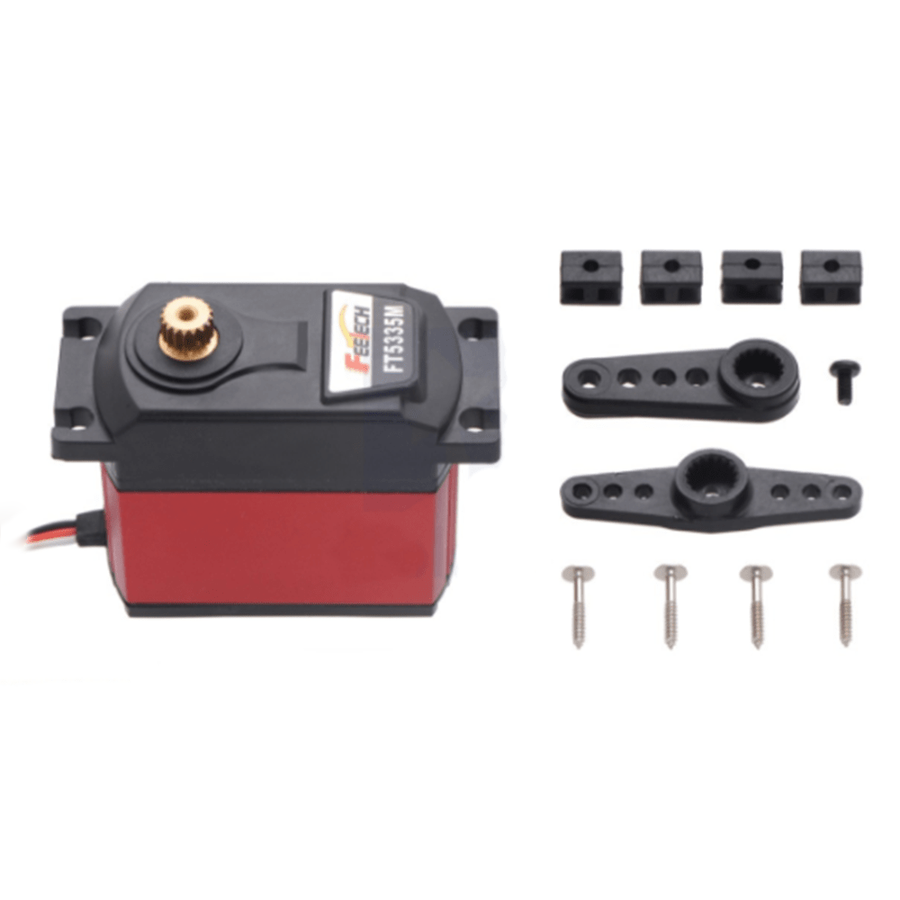

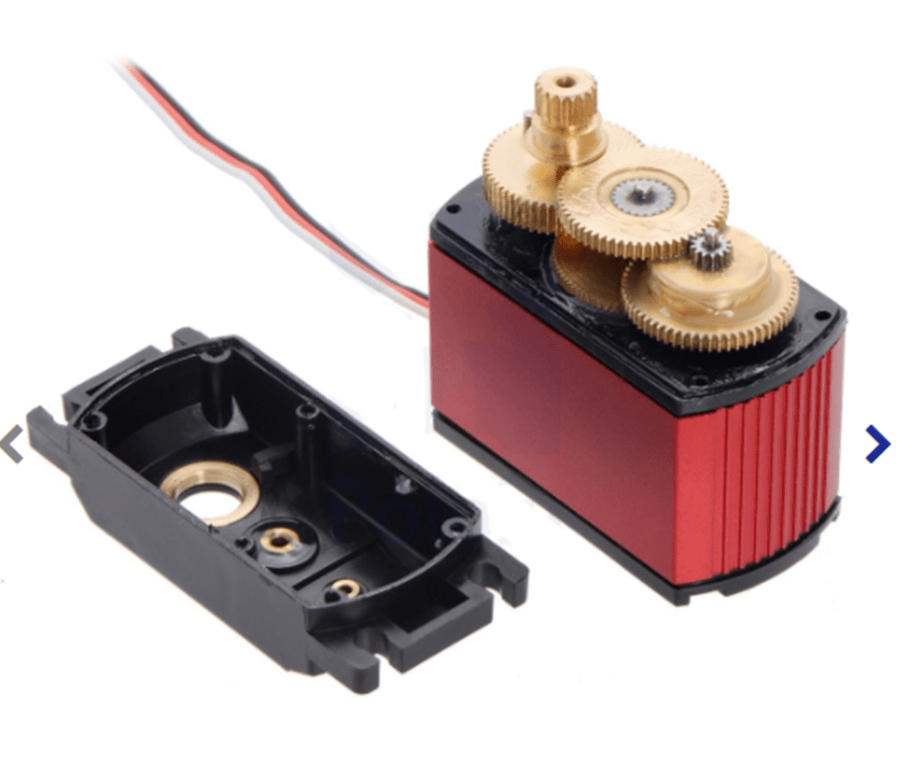

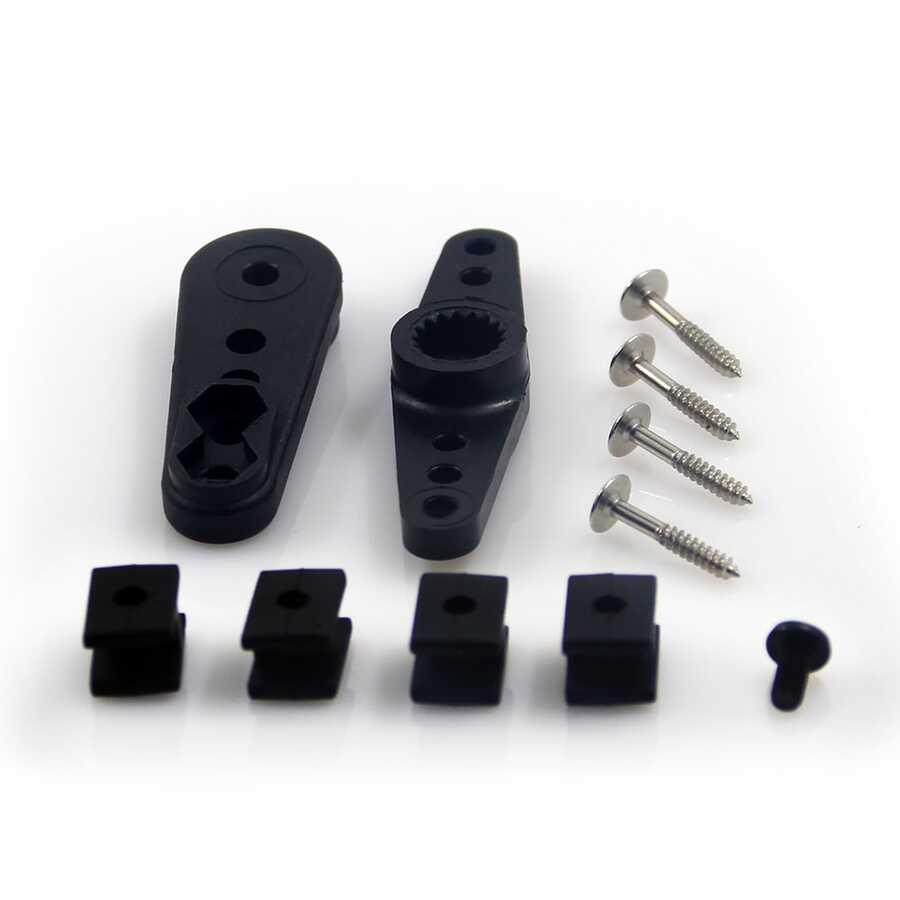

    The FEETECH FT5335M servo is all about torque. This 1/4-scale digital servo can deliver an incredible 550 oz-in of torque at 7.4 V or 480 oz-in at 6 V thanks to its powerful motor and all-metal gear train. The FT5335M is a high-voltage servo, offering an operating voltage range of 6 V to 7.4 V. Servo horns and associated hardware are included.

    Size: 62.8 × 32.5 × 55.9 mm
    Weight: 180 g

    General Specifications:

    Digital: Y
    Speed @ 6V: 0.20 sec/60°
    Stall torque @ 6V: 35 kg·cm
    Speed @ 7.4V: 0.18 sec/60°
    Stall torque @ 7.4V: 40 kg·cm
    Lead length: 12 in
    Hardware included: Y

    Features
    Gear Type
    :
    Metal
    Torque
    :
    16-50 kg/cm
    Digital/Analog
    :
    Digital
    Operating Voltage
    :
    7.4V and above
    Rotation
    :
    Standart
    Speed
    :
    > 0.12 sec/60°
