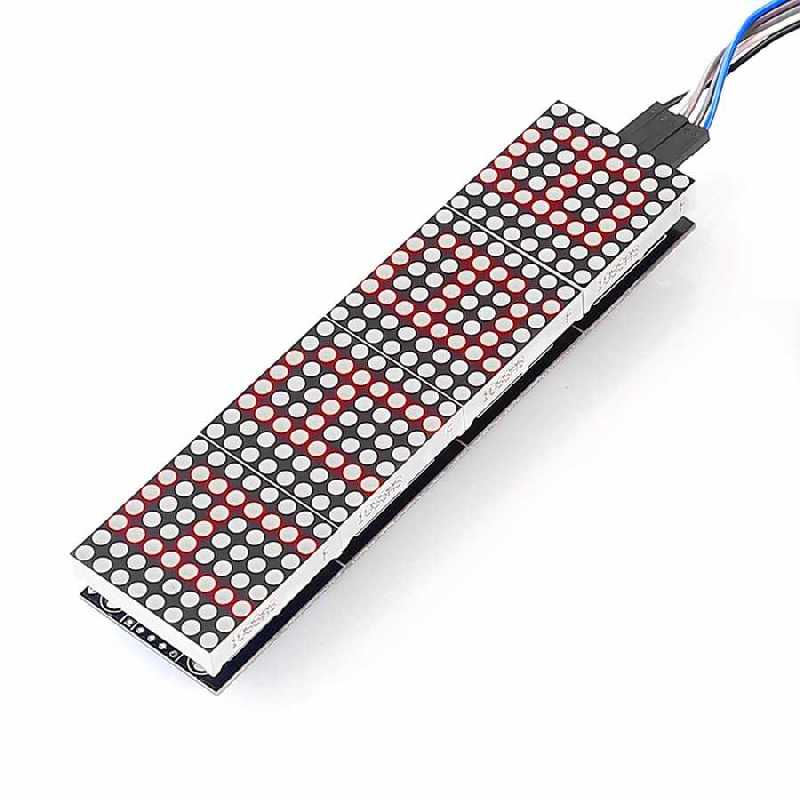

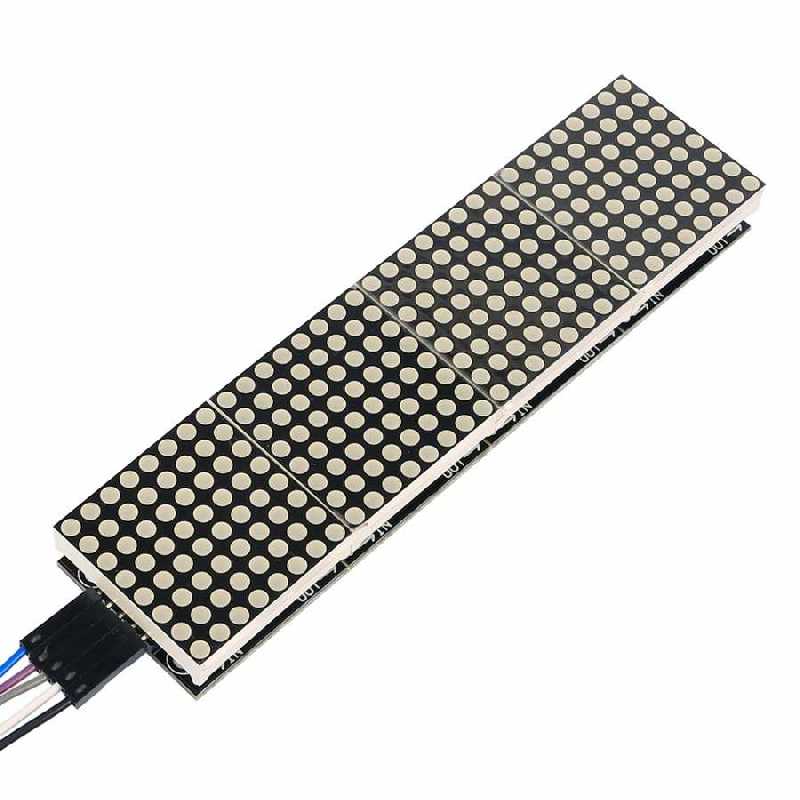

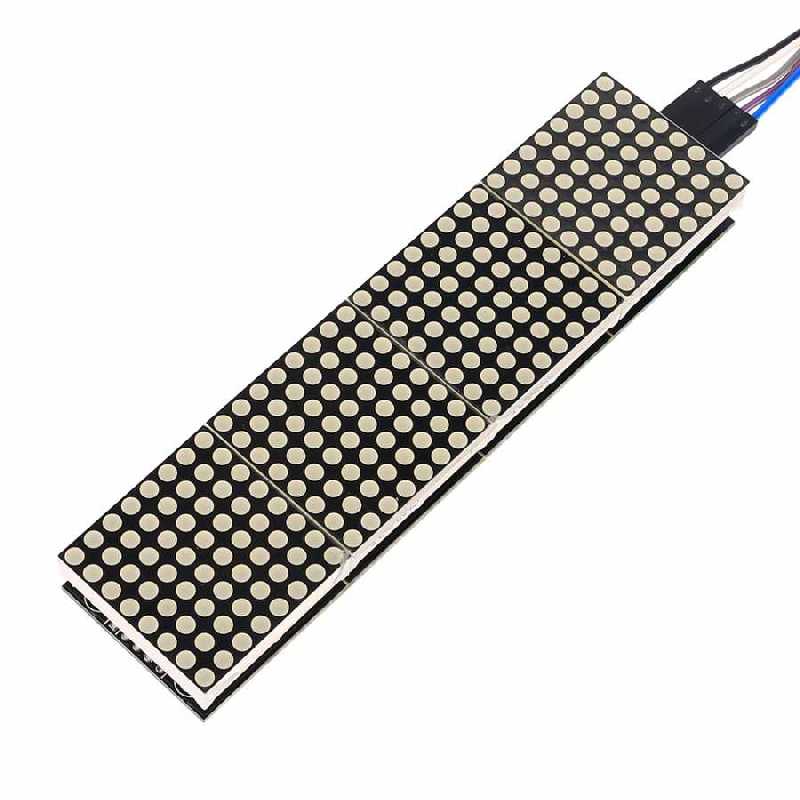

4 8x8 Red Dot Matrix Board

You can use this modul contains 4 8x8 LED matrix in your LED board or display projects. There is a MAX7219 common cathode driver IC.

Features:

• Dimensions: 128 mm x 128 mm x 13 mm
• Operating voltage: 5 V DC
• There are 3mm holes existing for screwing

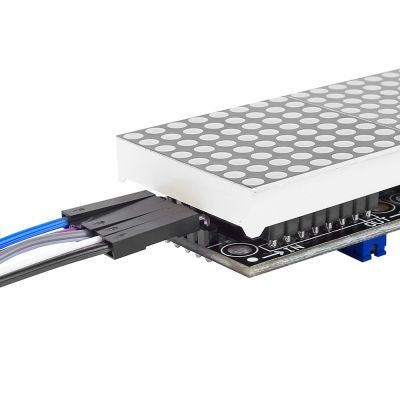

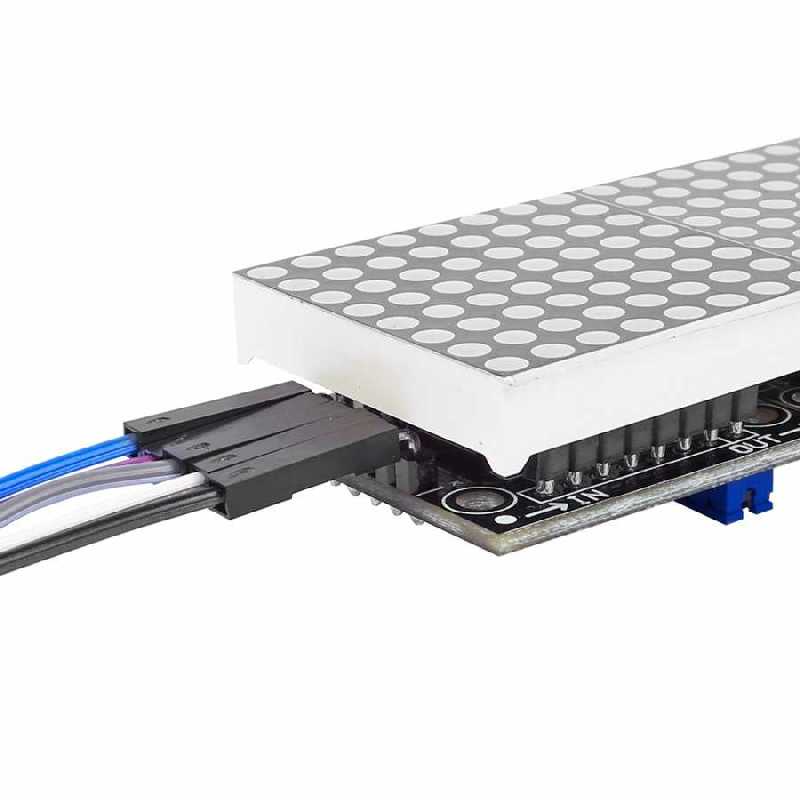

• Possibility to consecutively add moduls with the header connections.

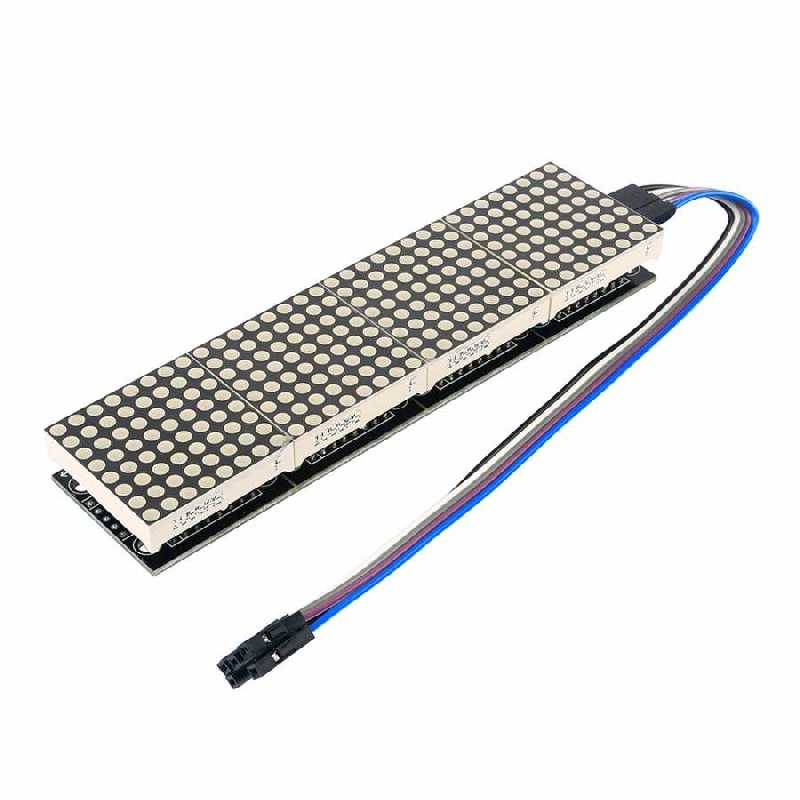

Kit includes: 4 8x8 matrix PCB, 1 90 degrees 5-pin male header, 1 5-pin female - female jumper cable.

Documents:

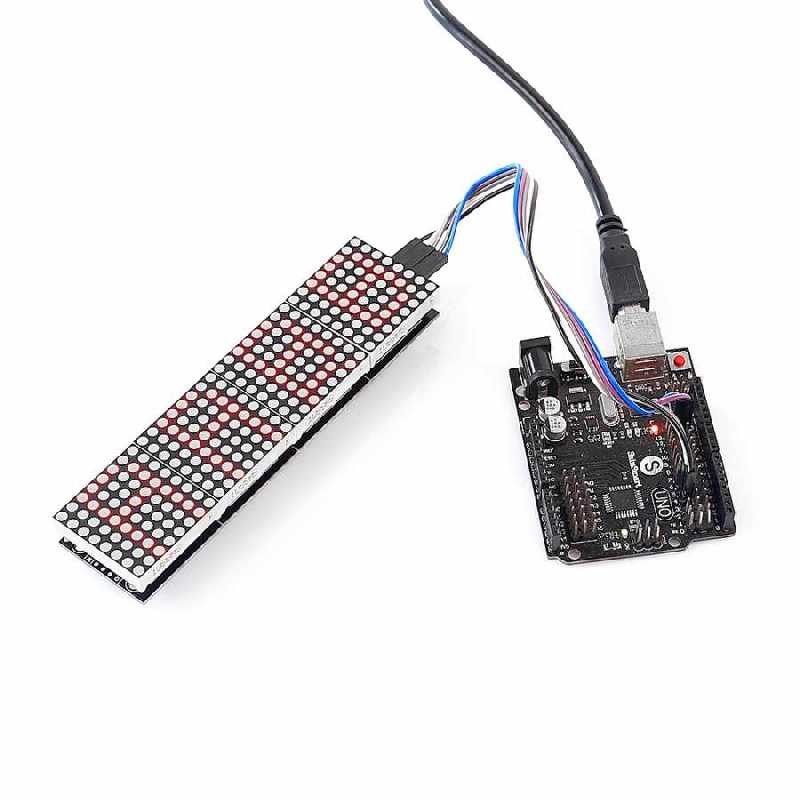

• Click here for example Arduino code.
• Click kere for datasheet.
